<head>
<!-- -->
<Scene>
</X3D>
<component level='4' name='NURBS'/>
<meta name='title' content=' HoleSmallOffset.x3d '/>
<meta name='description' content='A NurbsTrimmedSurface node rendering a square centered on the origin in the x-y plane; with sides 8 units length. A trimming curve is used to cut out a circle of radius 1 unit centered at the point (x,y)=(1,1) . Red (x), Green (y) and Blue (z) line segments represent the x-y-z unit axes.'/>
<meta name='Image' content='HoleSmallOffset.jpg'
/>
<meta name='creator' content='Vincent Marchetti'/>
<meta name='created' content='10 February 2012'/>
<meta name='modified' content='20 October 2019'/>

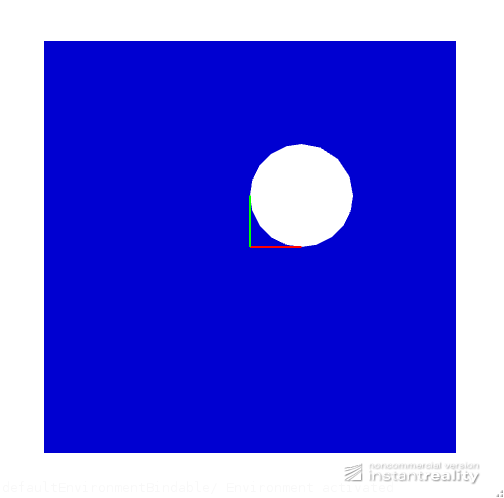

<meta name='Image' content='images/HoleSmallOffsetInstantReality.png'
/>
<meta name='Image' content='images/HoleSmallOffsetXj3D.png'
/>
<meta name='reference' content=' http://www.kshell.com/pages/trimmed_nurbs_demo '/>
<meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Basic/NURBS/HoleSmallOffset.x3d '/>
<meta name='generator' content='Python language scripting'/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../license.html'/>
</head>
<meta name='title' content=' HoleSmallOffset.x3d '/>
<meta name='description' content='A NurbsTrimmedSurface node rendering a square centered on the origin in the x-y plane; with sides 8 units length. A trimming curve is used to cut out a circle of radius 1 unit centered at the point (x,y)=(1,1) . Red (x), Green (y) and Blue (z) line segments represent the x-y-z unit axes.'/>
<meta name='Image' content='HoleSmallOffset.jpg'
/>
<meta name='creator' content='Vincent Marchetti'/>
<meta name='created' content='10 February 2012'/>
<meta name='modified' content='20 October 2019'/>
<meta name='Image' content='images/HoleSmallOffsetInstantReality.png'
/>
<meta name='Image' content='images/HoleSmallOffsetXj3D.png'
/>
<meta name='reference' content=' http://www.kshell.com/pages/trimmed_nurbs_demo '/>
<meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Basic/NURBS/HoleSmallOffset.x3d '/>
<meta name='generator' content='Python language scripting'/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../license.html'/>
<!-- -->
<Scene>
<WorldInfo title='HoleSmallOffset.x3d'/>
<Viewpoint description='Hole Small Offset NurbsTrimmedSurface' position='0 0 12'/>
<Background skyColor='1 1 1'/>
<Group>
<Shape>
</Scene>
<Viewpoint description='Hole Small Offset NurbsTrimmedSurface' position='0 0 12'/>
<Background skyColor='1 1 1'/>
<Group>
<Shape>
<Shape>
<Shape>
</Group>
<LineSet vertexCount='2' containerField='geometry'>
<Appearance>
</Shape>
<Coordinate point='0 0 0.01 1 0 0.01'/>
</LineSet>
<Appearance>
<Material emissiveColor='1 0 0'/>
<LineProperties linewidthScaleFactor='2' containerField='lineProperties'/>
</Appearance>
<LineProperties linewidthScaleFactor='2' containerField='lineProperties'/>
<Shape>
<LineSet vertexCount='2' containerField='geometry'>
<Appearance>
</Shape>
<Coordinate point='0 0 0.01 0 1 0.01'/>
</LineSet>
<Appearance>
<Material emissiveColor='0 1 0'/>
<LineProperties linewidthScaleFactor='2' containerField='lineProperties'/>
</Appearance>
<LineProperties linewidthScaleFactor='2' containerField='lineProperties'/>
<Shape>
<LineSet vertexCount='2' containerField='geometry'>
<Appearance>
</Shape>
<Coordinate point='0 0 0.01 0 0 1'/>
</LineSet>
<Appearance>
<Material emissiveColor='0 0 1'/>
<LineProperties linewidthScaleFactor='2' containerField='lineProperties'/>
</Appearance>
<LineProperties linewidthScaleFactor='2' containerField='lineProperties'/>
<Shape>
<NurbsTrimmedSurface solid='false' uDimension='2' uKnot='-4 -4 4 4' uOrder='2' vDimension='2' vKnot='-4 -4 4 4' vOrder='2' weight='1 1 1 1' containerField='geometry'>
<Appearance DEF='ksh_appearance_1'>
</Shape>
<Coordinate containerField='controlPoint' point='-4 -4 0 4 -4 0 -4 4 0 4 4 0'/>
<Contour2D containerField='trimmingContour'>
<Contour2D containerField='trimmingContour'>
</NurbsTrimmedSurface>
<Contour2D containerField='trimmingContour'>
<NurbsCurve2D controlPoint='-4 -4 4 -4 4 4 -4 4 -4 -4' knot='0 0 0.25 0.5 0.75 1 1' order='2' weight='1 1 1 1 1' containerField='children'/>
</Contour2D>
<Contour2D containerField='trimmingContour'>
<NurbsCurve2D controlPoint='2 1 1.414 0 1 0 0 0 0 1 0 1.414 1 2 1.414 1.414 2 1' knot='0 0 0 0.25 0.25 0.5 0.5 0.75 0.75 1 1 1' weight='1 0.7071 1 0.7071 1 0.7071 1 0.7071 1' containerField='children'/>
</Contour2D>
<Appearance DEF='ksh_appearance_1'>
<Material diffuseColor='0 0 1'/>
</Appearance>
<!-- -->
