to X3D Scene Authoring Hints


X3D Resources


to Web3D home page

Extensible 3D (X3D) Graphics is the royalty-free open standard for publishing, viewing, printing and archiving interactive 3D models on the Web.

Applications | Authoring Tools | Authoring Support | Books | Conformance | Conversions | Examples | Export and Import | Feedback | License | Mobile | Model Search | PowerPoint | Programming Languages | Quality Assurance (QA) | References | Security | Showcase | Training and Tutorials | Videos | VRML and Open Inventor | Wish List | Savage Developers Guide | X3D‑Edit | X3D Scene Authoring Hints | X3D Tooltips | X3D Validator | Contact

Numerous resources are available to support both X3D Graphics and its compatible predecessor, the Virtual Reality Modeling Language (VRML).


🔖 Applications, Players and Plugins for X3D / VRML Viewing to top

Extensible 3D (X3D) is the third-generation successor to the Virtual Reality Modeling Language (VRML), providing full backwards compatibility and adding functionally equivalent XML and compressed-binary file encodings.

X3D players and plugins from Web3D Consortium members:

  1. InstantReality is a high-performance X3D player and Mixed Reality (MR) system by Fraunhofer IGD (Linux, macOS, Windows) (forum).
  2. Special mention. X3DOM (pronounced "X-Freedom") implements a high-performance X3D player in open-source JavaScript. Authors can publish X3D source within an HTML5 page that works in modern Web browsers without prior plugin installation (get involved and forum).
  3. FreeWRL/FreeX3D X3D/VRML browser (open-source C). (Linux, macOS, Windows) (contact, (bug tickets). Also described on Wikipedia.
  4. H3D/H3DViewer is an open-source C++ API and X3D player (Linux, macOS, Windows) (forum).
  5. Xj3D is an open-source Java viewer and application codebase for X3D graphics scenes.
  6. GeoVrml Run-Time was originally used for VRML97 GeoVrml examples.
  7. Dynamic-3D is a pure Java-based 3D Graphics Engine for web browsers. Open source renderer by Mitch Williams.

Other X3D players, not (yet?) Web3D Consortium members:

  1. Special mention. X_ITE X3D Browser implements a high-performance X3D player in open-source JavaScript. Authors can publish X3D source within an HTML5 page that works with Web browsers without prior plugin installation.
  2. BitManagement's BS Contact and BS Contact Geo X3D/VRML97 plugins for HTML web browsers (Linux, MacOS, Windows) (support).
  3. Castle Game Engine is used to build view3dscene, a free cross-platform VRML/X3D browser that also supports other 3D model formats (FreeBSD, Linux, MacOS, Windows) (forum).
  4. Cortona3D Viewer by Parallel Graphics, VRML plugin for Netscape or Internet Explorer (support).
  5. GPAC is an Open Source multimedia framework for presentation technologies (graphics, animation and interactivity) and packaging formats such as MP4. (Linux, macOS, Windows).
  6. Heilan X3D Browser open-source C++ browser for audio research (Linux, macOS, Windows).
  7. libx3d open-source C++ libraries for X3D.
  8. NuGraf by Okino provides a 3D rendering, translation, viewing & data optimization system (Windows + emulators and plugins for other authoring tools) (support).
  9. Octaga Player 5.0 (and Octaga-only plugin test page) by Octaga VS is a high-performance X3D/VRML browser (Windows) (support). Downloads of prior Octaga Player 2.1 also available at c|net.
  10. OpenVRML is a free cross-platform runtime for VRML and X3D (FreeBSD, Linux, macOS) (support).
  11. Orbisnap is a free multi-platform standalone VRML97 viewer for visualizing virtual worlds, and can connect to a Simulink 3D Animation server (FreeBSD, macOS, Linux, Unix) (support).
  12. SwirlX3D Free Player by Pine Coast Software (Windows) (support).
  13. V-Slam browser for virtual and mixed reality devices, also released as open source based on Unity3D engine.

Legacy and unsupported X3D players:

  1. blaxxun Contact VRML97 plugin for Netscape or Internet Explorer, and Matlab plugin (not supported).
  2. CosmoPlayer was created by Silicon Graphics Inc. (SGI) (not supported)
  3. Vivaty was the successor to MediaMachines, with eventual acquisitions by Platinum, Computer Associates (CA) and Microsoft. (corporate history)

🔖 Authoring Tools and Programming Libraries for X3D Scenes to top

Many authoring tools have emerged since X3D can be used for any purpose without royalty fees.

Tool support for X3D components provides a feature comparison of major X3D authoring tools, for each player and each X3D component.

  1. X3D-Edit is the primary authoring tool used at NPS to create the X3D, Sourcebook and Savage example archives. Available free.
  2. AC3D is a small, simple, easy-to-learn 3D authoring tool that includes support for X3D export (Linux, macOS, Windows) (contact).
  3. Blender is an open-source 3D authoring tool that includes support for X3D import/export (FreeBSD Linux, macOS, Windows) (download).
  4. BS Content Studio Tool for easy and fast creation of 3D scenes and applications, from BitManagement (support) November 2014: new update announced.
  5. BS Editor is the original authoring tool from BitManagement.
  6. bvhacker supports editing of Biovision BVH files, which is a file format for recording post-processed motion-capture data. BVH is the basis for Humanoid Animation (HAnim) Motion Data Animation capabilities, which are supported in X3D version 4, Human Animation component, HAnimMotion node.
  7. insight3d is an open-source, image-based modeling tool for creation of buildings from photographs.
  8. MeshLab is an open-source, portable, and extensible system for the processing and editing of unstructured 3D triangular meshes (Win64, MacOS, Linux Snap). Downloads are available there as official release, or else on the github repository as a developer release.
  9. ParaView is a parallel visualization application to visualize large data sets.
  10. RawKee X3D Exporter Plug-in for Maya by Aaron Bergstrom
  11. Rez provides an open-source framework and tools for translating planetary terrain data and images to different formats including multi-resolution versions optimized for web browsing.
  12. SwirlX3D Editor is an X3D/VRML authoring environment from Pinecoast Software (Windows) (support).
  13. Seamless3d is open-source 3D modeling software designed for artists (support). Additional reference: Wikipedia-Seamless3d.
  14. SubmarineX3D is a simple X3D Editor from University of Perugia Italy (Linux, macOS, Windows) (contact).
  15. Titania X3D Editor is a free standalone X3D/VRML authoring tool primary developed for Ubuntu/Debian operating system.
  16. VIM (Vi IMproved) Editor does syntax highlighting and folding (collapsing of blocks) for both XML and VRML97. Nothing specific for X3D yet.
  17. Viper is a VRML97 source-code parser by NIST.
  18. VrmlPad is a professional editor for VRML programming.
  19. Visualization Toolkit (VTK) is an open-source toolkit, written in C++, for large scale 3D data visualization that offers X3D export.
    Related: Mayavi is a Python interactive scripting interface for VTK that includes X3D export of mesh-based surfaces.
  20. White Dune is a graphical VRML97/X3D editor, simple NURBS/Superformula 3D modeller, animation tool, and VRML97/X3DV command-line compiler. Also includes a converter from X3D to RenderMan Interface Bytestream (RIB) protocol. (FreeBSD, macOS, Linux, Unix, Windows).
  21. Wings 3D is an advanced subdivision modeler that is both powerful and easy to use. It can be used as a free open-source X3D/VRML authoring environment (Linux, macOS, Windows) (forum).
  22. Open-Source 3D Component Editor using X3DOM by Fraunhofer IGD is an example X3D scene editor that runs in a web browser.

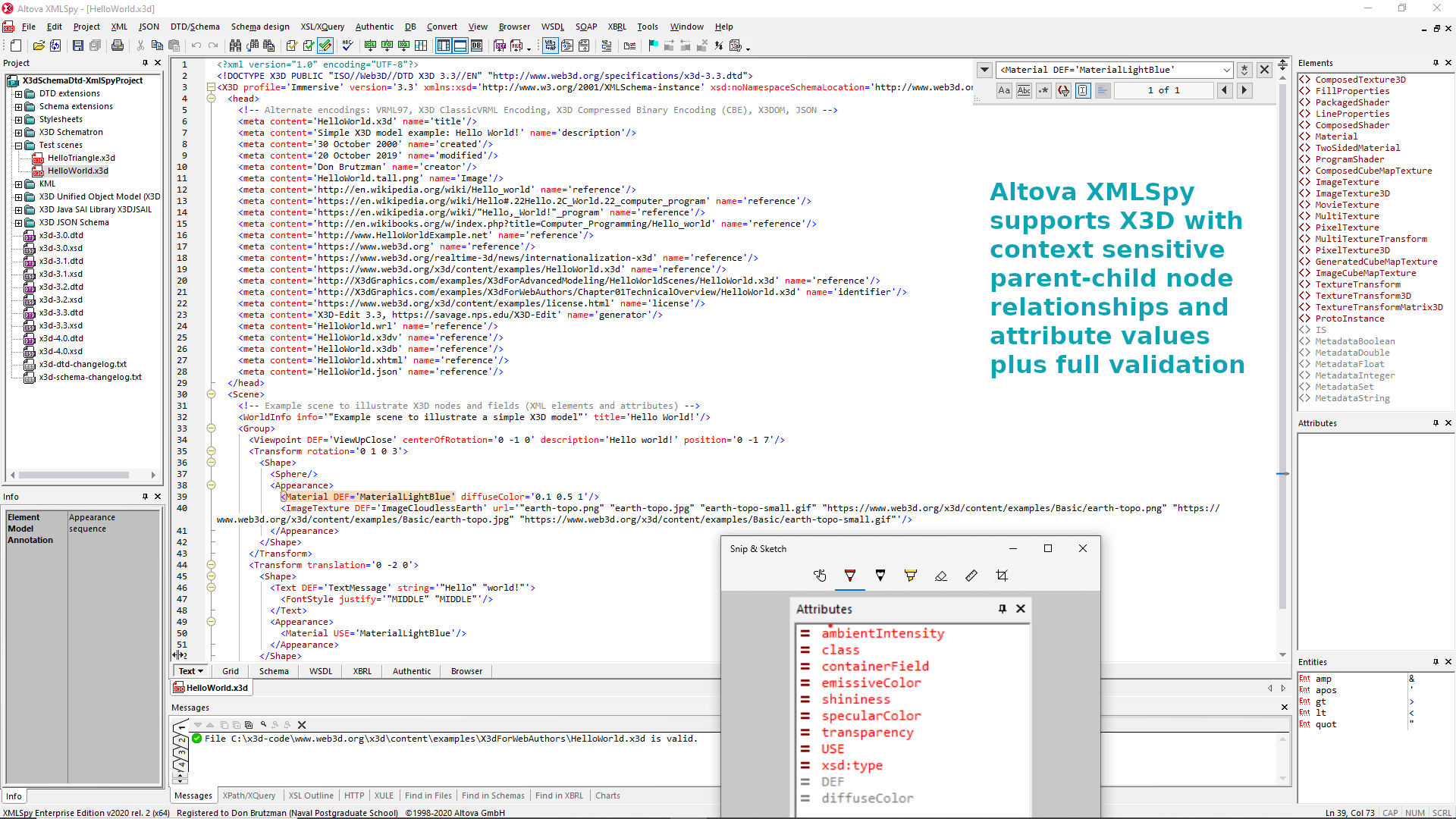

  23. Altova XMLSpy is an XML development environment for modeling, editing, debugging and transforming XML technologies.
  24. X3DToolKit by INRIA Models and Algorithms for Visualization and Rendering (MAVERICK) is a portable LGPL free C++ toolkit for loading, displaying and processing X3D models, designed for 3D developers.
  25. X3D Java Scene Access Interface Library (X3DJSAIL) provides standard X3D Java interfaces with concrete implementation classes, all as open source. This application programming interface (API) library is strongly typed to avoid authoring errors, and is autogenerated from the X3D XML schema and X3D Unified Object Model (X3DUOM) to ensure correctness.

Legacy and unsupported X3D authoring tools:

  1. Octaga Exporter directly exported visual effects created using Autodesk 3DS Max into VRML and X3D.
  2. Vapour Technology: VRML Authoring Tools for computing orientations (Dizzy, Peek, SpinDoctor and Twister)
  3. Vizx3D (Internet Archive) 3D modeling and animating application that creates X3D v3.0 and VRML97 files. Features include HAnim 2001 single-mesh avatar support, an improved IndexedFaceSet/NURBS surface editor, subdivided surfaces, and multi-texture functions.
  4. Vivaty Studio (formerly Flux Studio) is a high-quality authoring tool from Vivaty. It is an easy-to-use, inexpensive, general-purpose, visually oriented, 3D modeling and animation application for X3D (not supported). This group also produced Flux Player and Flux Studio X3D/VRML97 viewer plugin and authoring tool for Internet Explorer (Windows) (not supported).

🔖 Authoring Support for X3D to top

Numerous other resources provide support for authoring X3D.

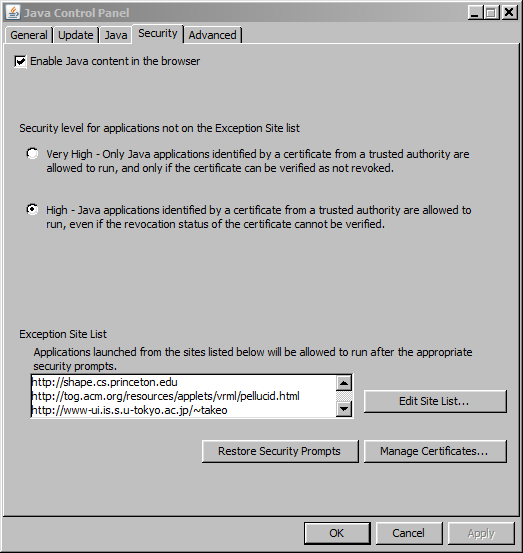

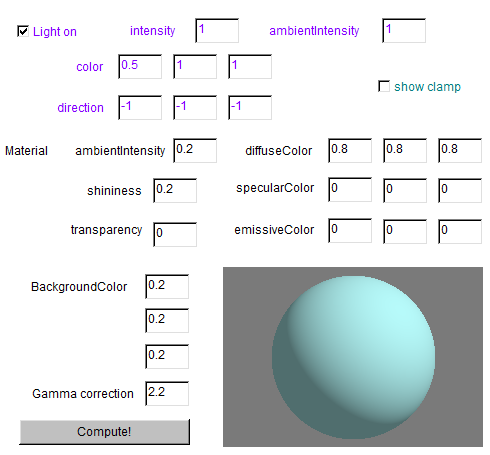

Additional authoring support includes the following assets.


🔖 Books about X3D and VRML to top

Books on Extensible 3D (X3D) Graphics

X3D Graphics is the international standard for real-time 3D communication.
  1. X3D for Web Authors by Don Brutzman and Leonard Daly, Morgan Kaufmann Publishers, Elsevier, April 2007, 468 pages.
  2. WebGl HOTSHOT by Mitch Williams, ISBN-13: 9781783280919, 306 pages, 2014. Chapter 1 shows how X3D complements WebGL.
  3. Visualizing Information Using SVG and X3D by Vladimir Geroimenko and Chaomei Chen, editors, Springer, 2008.
  4. Computer Graphics: From a Small Formula to Cyberworlds by Alexei Sourin, 3rd edition, Pearson Prentice Hall, Singapore, 385 pages, 2012. Chapter 14 discusses X3D and VRML.
  5. Networked Graphics: Building Networked Games and Virtual Environments by Anthony Steed and Manuel Fradinho Oliveira, Elsevier, 536 pages, 2009. Chapter 7 discusses X3D, X3D-Edit and DIS.
  6. Interactive 3D Multimedia Content: Models for Creation, Management, Search and Presentation, edited by Wojciech Cellary and Krzysztof Walczak, Springer London, 302 pages, 2012. Contributed chapters discuss X3D capabilities together with other standards, then describe significant implemented research work regarding 3D/VR/AR systems. Most works provide extensions based on the VRML/X3D standards. Online resource: Chapter 2, Interactive 3D Content Standards.
  7. Digital Simulations for Improving Education: Learning Through Artificial Teaching Environments, edited by David Gibson (University of Vermont, USA) and Young Kyun Baek (Korea National University of Education, Korea), IGI Global, 540 pages, April 2009.
  8. Core Web3D by Aaron E. Walsh and Mikaël Bourges-Sévenier, Prentice Hall PTR, Upper Saddle River, New Jersey USA, 1088 pages, 2000. Several chapters discuss developmental versions of X3D.
  9. X3D: Programmierung interaktiver 3D-Anwendungen für das Internet, Peter Schickel and Jörg H. Kloss, Addison Wesley, December 2009.
  10. VRML & X3D for virtual reality by KyungBae Park, KyungIn Kang and SeungWook Kwak, 21 Century, ISBN-10: 8984681903, 422 pages, 2006 (in Korean).
  11. X3D, Who are you? Focus on examples for Web 3D design by KyungBae Park and SeungWook Kwak, Global, ISBN-13: 9788955024135, 472 pages, 2007 (in Korean).

🔖 Books on Virtual Reality Modeling Language (VRML) 97

VRML design began in 1994 and the language became a stable International Standard in 1997. Of interest: X3D is a third-generation design that is fully backwards-compatible with the second-generation VRML 97 standard. Thus all design guidelines and technical details in the following textbooks remains relevant.
  1. VRML 2 Sourcebook by Andrea L. Ames, David R. Nadeau, and John L. Moreland, John Wiley & Sons, 1996. (also see VRML 2 Sourcebook examples in X3D)
  2. Annotated VRML 2.0 Reference Manual by Rikk Carey and Gavin Bell, Addison Wesley, Boston Massachusetts, 1997.
  3. Late Night VRML 2.0 with Java by Bernie Roehl, Justin Couch, Cindy Reed-Ballreich, Tim Rohaly and Geoff Brown, Ziff-Davis Press (Macmillan Publishers), 1997.
  4. VRML 2.0 Handbook by Jed Hartman and Josie Wernecke, Addison Wesley, Boston Massachusetts, 1996. Also see the Tenochtitlan examples.
  5. VRML: Exploring Virtual Worlds on the Internet, by Walter Goralski, Matthew Poli, and Peter Vogel, Prentice Hall PTR, January 1997.
  6. Das Einsteigerseminar VRML by Prof. Dr. Rolf Daessler, April 2001, BHV Publishing Group, 498 pages, in German. Available online.
  7. 3D User Interfaces with Java 3D by Jon Barrilleaux, Manning Publications, 2000. A guide to computer-human interaction in 3D with direct mappings to VRML.

Also available: VRML Resources.


🔖 Conformance Testing for X3D to top

There are three conformance test suites to help improve the quality of X3D and VRML players.

The Web3D Consortium offers compliance certification of this last suite. X3D Conformance Testing Program describes details.

The Web3D Consortium also supports the Conformance working group mailing list which includes list archives.

Of related interest: Quality Assurance (QA).


🔖 Conversions and Translation Tools to top

Numerous conversion tools are available for the various encodings of X3D and VRML.

X3D is a direct superset of VRML with three encodings: XML encoding (.x3d), Classic VRML encoding (.x3dv) and VRML97 encoding (.wrl). X3D is designed so that all three encodings are equivalent, you can choose to use any of them.

Converting X3D scenes to/from VRML (.wrl) also works well, since X3D is 3rd-generation VRML. The functionality provided by the VRML97 specification matches the X3D Immersive Profile.

TODO. Describe how .wrz is gzip-compressed .wrl and so can be easily converted. Include a bookmark for ready reference.

TODO. Check if we ever specified something similar for .x3d files, and also how XML authors do it (for example .xml.zip or whatever) and includes directions/links.

Related: also see Export and Import by Applications on this page.

The following applications are known to have X3D or VRML output capabilities. Additional entries are welcome.

  1. Special mention. Castle Game Engine's convert everything to X3D page supports glTF, X3D, VRML, Wavefront OBJ, STL, Collada, 3DS, MD3, Spine JSON and others (tweet). This tool further supports development of X3D version 4.
  2. X3D players providing file-menu conversions (Save As) include BSContact, OctagaVS(pro), view3Dscene, and Xj3D.
  3. Xj3D Open Source for X3D/VRML97 includes command-line and file-menu X3D translators between all three encodings. Xj3D can also import Collada files.
  4. X3D-Edit exposes all of these Xj3D conversion capabilities via a conversion panel embedded under the X3D...Import and ...Export menus. X3D-Edit can further import, export and also edit, validate Collada files.
  5. 🔖 XSLT Stylesheets convert .x3d scenes into alternate formats and encodings. These slidesets (and corresponding batch files) are bundled in X3D-Edit.
  6. 3D PDF Converter includes support for X3D export. This capability allows users to easily visualize, validate and then export CAD data in a suitable format for import into a 3rd Party System.
  7. Accutrans 3D by MicroMouse Productions provides accurate translation of 3D geometry between the file formats used by many popular modeling programs.
  8. Anark is able to export product data into high-precision B-rep and lightweight mesh formats including SolidWorks, Inventor, ACIS, CATIA V4/V5, Parasolid, STEP, NX (formerly Unigraphics), IGES, COLLADA, DWF, X3D, and VRML.
  9. Ayam is a free open-source 3D modeling environment for the RenderMan interface with X3D import and X3D export.
  10. BaconXJF open-source 3D Web Formats Import-Export Tool for Maya and Maya LT includes X3D support. "It's a work in progress, but a good start..." Created by Aaron Bergstron, original author of the RawKee X3D Exporter for Maya. Demonstration videos also available.
  11. BitManagement capabilities include BS Converter for 3ds max and BS Converter for Blender.
  12. Blender provides excellent top-level import/export support, as described by Blender Model Export To X3D using X3D-Edit.
  13. CAD Exchanger is commercial C++ software to view and convert 3D models that supports multiple formats including VRML and X3D. (announcement)
  14. Castle Game Engine has Blender export plus Castle Animation Frames, Skyboxes, Static Cube Environment Maps and more.
  15. Chisel VRML Optimisation Tool with autoinstaller and documentation provided by Halden Virtual Reality Centre. Originally built by Trapezium and maintained by NIST.
  16. Cura3D printing software supports X3D model import. Cura3D can output to multiple 3D printers and also export G-code.
  17. InstantReality X3D encoding converter is an online translator between ClassicVrml or XML (.wrl) encoding, and can also convert into X3DOM outputs (HTML5 or XHTML5). Free for non-commercial use.
  18. MeshLab is an open source, portable, and extensible system for the processing and editing of unstructured 3D triangular meshes (Win64, MacOS, Linux Snap) (download).
  19. Modo by Foundry is a sophisticated authoring tool that includes X3D export.
  20. NIST VRML to X3D Translator was originally written by Qiming Wang. An updated version of the source (and a .zip distribution) are maintained on SourceForge. The translator is also bundled in X3D-Edit under the X3D/Import/VRML97 menu.
  21. Okino Polytrans/NuGraf is the premier industry translation tool that can convert many many different file formats (including Collada) with X3D/VRML97 import export and also support for VRML 1.0. Their original 2002 press release describes the central value of the VRML/X3D scene graph as a detailed, extendable design used in the Okino converter architecture.
  22. Open Cascade is an open source (LGPL) geometry kernel written in C++ uses PythonOCC which also includes X3DOM support. The Web3D CAD public wiki includes a STEP to X3D Python script.
  23. PDF3D provides support to convert, edit, store and share 3D data in PDF. File-format support includes VRML97.
  24. Project Rawkee: Open-Source X3D Plugin for Maya by the Archaeology Technologies Laboratory (ATL) of North Dakota State University (NDSU).
  25. SteelVis (CIS/2 to VRML and IFC Translator, aka CIS/2 Viewer) by National Institute of Standards and Technology (NIST)
  26. Step Prolog Restful Interface (SPRI) Converter allows browsing the content of STEP files, which can contain multiple geometric models. Further information is found on the Web3D CAD public wiki.
  27. SwirlX3D Translator is an enhanced version of the Viewer that permits Collada and 3DS files to be imported into VRML or X3D (Windows) (support).
  28. Tetra4D supports 3D PDF conversion of PRC and U3D models to/from X3D within Adobe Acrobat.
  29. Unity3D Game Manager export:
  30. Unreal Realm of Concepts: Unreal to X3D Exporter by Dave Arendash
  31. view3dscene supports VRML/X3D, Collada, OpenInventor 1.0, 3d Studio Max 3DS, Quake 3 MD3, Wavefront OBJ and Videoscape GEO.
  32. Vivaty has utilities and converters for Google Earth KML/Sketchup, Autodesk 3DS Max, Autodesk Maya, and Unreal. Vivaty Studio also includes Collada import.
  33. VRML 1.0 to VRML97 Converter by Octaga
  34. VrmlMerge can convert VRML to X3D, merge VRML 97 files, and provides .wrl examples. Free for non-commercial use, requires Java.
  35. XIOT X3D Input/Output Toolkit library provides an open source generic C++ toolkit to import and export X3D in its different XML encodings: ASCII and binary. Original development includes a Fast Infoset (FI) based X3DB compressed binary encoding.

🔖 Examples: Scene Archives for X3D to top

The X3D Examples Archives demonstrate how X3D nodes and scenes work. Thousands of scenes are provided in all X3D encodings. You can browse them individually online or download fully complete, separately installable .zip archives. More X3D models can be found at Web3D Examples and the sites listed at Additional Example Scenes below.

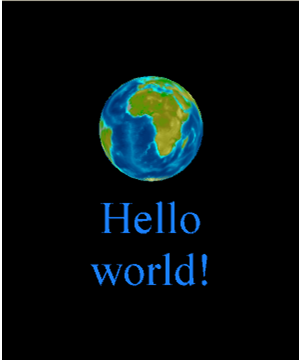

A simple example test scene is HelloWorld.x3d provided in a variety of X3D encodings: .x3d XML .x3dv ClassicVRML, .wrl VRML97, .html listing, .html X_ITE, .xhtml X3DOM, .java Java source, .json JavaScript Object Notation, .py Python source, .ttl Turtle source with SPARQL query, .java Java source,target="_blank">.x3db compression, XML canonicalization (C14N), and .png image

Quick Links X3D for Web Authors X3D for Advanced Modeling Basic Conformance Nist Humanoid Animation (HAnim) VRML 2 Sourcebook Savage SavageDefense
Overview, references: README README README README README README README README
Archive examples: Online Online Online Online Online Online Online Online
Local links (if present): Local Local Local Local Local Local Local Local
Java conversions: Javadoc Javadoc Javadoc Javadoc Javadoc Javadoc Javadoc Javadoc
4065 total X3D scenes: 271 127 741 761 91 416 1253 405
Catalog metadata XML: Content catalog Content catalog Content catalog Content catalog Content catalog Content catalog Content catalog Content catalog
Ant build scripts: build.xml build.xml build.xml build.xml build.xml build.xml build.xml build.xml
