<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "http://www.web3d.org/specifications/x3d-3.0.dtd">
<X3D profile='Interactive' version='3.0 xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' http://www.web3d.org/specifications/x3d-3.0.xsd '>
<head>
<meta name='titlecontent='Figure14.4aElevationGridPuddleSplash10x10.x3d'/>
<meta name='creatorcontent='Figure 14.4a, The VRML 2.0 Sourcebook, Copyright [1997] By Andrea L. Ames, David R. Nadeau, and John L. Moreland'/>
<meta name='referencecontent=' http://www.wiley.com/legacy/compbooks/vrml2sbk/ch14/14fig04a.htm '/>
<meta name='translatorcontent='Don Brutzman'/>
<meta name='createdcontent='19 August 2000'/>
<meta name='modifiedcontent='14 January 2010'/>
<meta name='descriptioncontent='A puddle splash using a 10x10 elevation grid. Compare with Figure 14.4b.'/>
<meta name='identifiercontent=' http://www.web3d.org/x3d/content/examples/Vrml2.0Sourcebook/Chapter14-ElevationGrid/Figure14.4aElevationGridPuddleSplash10x10.x3d '/>
<meta name='generatorcontent='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='licensecontent=' ../../license.html'/>
</head>
<!--

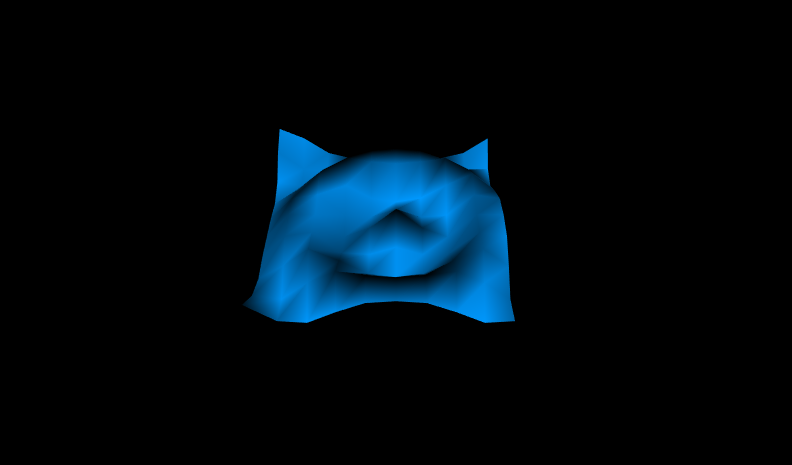

Index for Viewpoint image: Viewpoint_1
-->
<Scene>
<Viewpoint description='Puddle splashorientation='1 0 0 -0.8position='0.5 1.5 2'/>
<Shape>
<Appearance>
<Material diffuseColor='0 0.6 1'/>
</Appearance>
<ElevationGrid creaseAngle='3.14159solid='falsexDimension='10xSpacing='0.10zDimension='10zSpacing='0.10height='0.08 0.03 -0.05 -0.08 -0.07 -0.07 -0.07 -0.08 -0.05 0.03 0.03 -0.06 -0.07 -0.01 0.04 0.05 0.04 -0.01 -0.07 -0.06 -0.05 -0.07 0.02 0.08 0.06 0.05 0.06 0.08 0.02 -0.07 -0.08 -0.01 0.08 0.02 -0.05 -0.07 -0.05 0.02 0.08 -0.01 -0.07 0.04 0.06 -0.05 -0.06 -0.02 -0.06 -0.05 0.06 0.04 -0.07 0.05 0.05 -0.07 -0.02 0.08 -0.02 -0.07 0.05 0.05 -0.07 0.04 0.06 -0.05 -0.06 -0.02 -0.06 -0.05 0.06 0.04 -0.08 -0.01 0.08 0.02 -0.05 -0.07 -0.05 0.02 0.08 -0.01 -0.05 -0.07 0.02 0.08 0.06 0.05 0.06 0.08 0.02 -0.07 0.03 -0.06 -0.07 -0.01 0.04 0.05 0.04 -0.01 -0.07 -0.06'/>
</Shape>
</Scene>
</X3D>
<!--

Index for Viewpoint image: Viewpoint_1
-->

<!-- Color key: <X3dNode field='value'/> matches <XmlElement attribute='value'/> -->

<!-- Additional help information about X3D scenes: X3D Resources, X3D Scene Authoring Hints and X3D Tooltips -->
