X3D Example Archives: VRML 2 Sourcebook, Chapter 07 - Scaling Shapes

Scale grows or shrinks a coordinate system by a scaling factor in X, Y, and Z. Transform operations are bottom-up: children shapes are first scaled, rotated, then translated. Order is fixed, independent of the field order that happens to occur in the Transform node.

These X3D scenes are adapted directly from the original VRML 2.0 Sourcebook chapter examples. Also available: Introduction to VRML97 SIGGRAPH98 course notes.

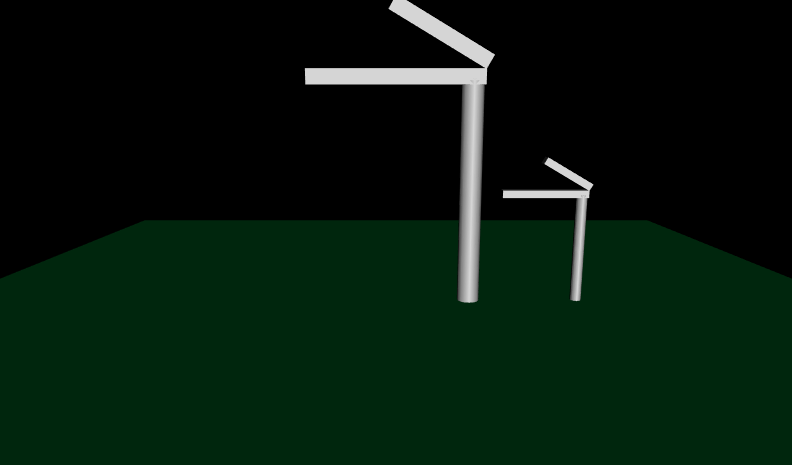

Figure 07.11 Scaled Arches
  11 X3D Scenes       Scene Descriptions
Figure 07.04b Scale 2x With Axes Scaling up by 2.0 along the X-axis direction and building a sphere, with coordinate axes superimposed to show X3D/VRML directions
Figure 07.05b Scale 0.5x With Axes Scaling down by 0.5 along the X-axis direction and building a sphere, with coordinate axes superimposed to show X3D/VRML directions
Figure 07.06b Scale 2y With Axes Scaling up by 2.0 along the Y-axis direction and building a sphere, with coordinate axes superimposed to show X3D/VRML directions
Figure 07.07b Scale 0.5z With Axes Scaling down by 0.5 along the Z-axis direction and building a sphere, with coordinate axes superimposed to show X3D/VRML directions
Figure 07.08b Scale 2x 0.5y 4z With Axes Scaling up by 2.0 in the X direction, scaling down by 0.5 in the Y direction, scaling up by 4.0 in the Z direction, and building a sphere, with coordinate axes superimposed to show X3D/VRML directions
Figure 07.09 Simple Spaceship Body Wings With Axes A simple spaceship built with a cylinder and a sphere, each scaled within its own coordinate system, with coordinate axes superimposed to show X3D/VRML directions
Figure 07.10 Simple Spaceship A simple spaceship built with shapes in scaled coordinate systems, with coordinate axes superimposed to show X3D/VRML directions
Figure 07.11 Scaled Arches An archway with smaller archways on each side created in translated, scaled coordinate systems. Also see Figures 6.10, 7.11 and 12.1 for comparison.
Figure 07.12a Simple Tree A tree at its original size. Also see Figures 7.12a, 7.12b and 7.13 for comparison.
Figure 07.12b Vertically Scaled Tree A tree scaled up about a center point set at the base of the tree trunk. Also see Figures 7.12a, 7.12b and 7.13 for comparison.
Figure 07.1 3Diagonally Scaled Tree A tree scaled along a diagonal axis using scale orientation. Also see Figures 7.12a, 7.12b and 7.13 for comparison.
