element PremiseNumber

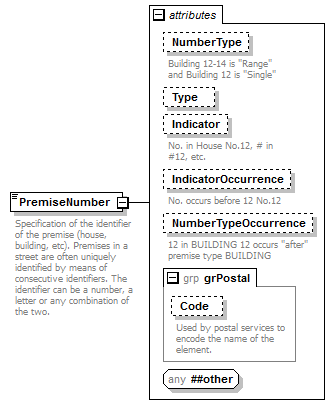

diagram
namespace	urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
properties	content  complex mixed  true
used by	elements  Premise Premise/PremiseNumberRange/PremiseNumberRangeFrom Premise/PremiseNumberRange/PremiseNumberRangeTo
attributes	Name   Type   Use   Default   Fixed   Annotation NumberType   derived by: NMTOKEN            documentation Building 12-14 is "Range" and Building 12 is "Single" Type               Indicator               documentation No. in House No.12, # in #12, etc. IndicatorOccurrence   derived by: NMTOKEN            documentation No. occurs before 12 No.12 NumberTypeOccurrence   derived by: NMTOKEN            documentation 12 in BUILDING 12 occurs "after" premise type BUILDING Code               documentation Used by postal services to encode the name of the element.
annotation	documentation Specification of the identifier of the premise (house, building, etc). Premises in a street are often uniquely identified by means of consecutive identifiers. The identifier can be a number, a letter or any combination of the two.
source	<element name="PremiseNumber">   <annotation>     <documentation>Specification of the identifier of the premise (house, building, etc). Premises in a street are often uniquely identified by means of consecutive identifiers. The identifier can be a number, a letter or any combination of the two.</documentation>   </annotation>   <complexType mixed="true">     <attribute name="NumberType">       <annotation>         <documentation>Building 12-14 is "Range" and Building 12 is "Single"</documentation>       </annotation>       <simpleType>         <restriction base="xs:NMTOKEN">           <enumeration value="Single"/>           <enumeration value="Range"/>         </restriction>       </simpleType>     </attribute>     <attribute name="Type"/>     <attribute name="Indicator">       <annotation>         <documentation>No. in House No.12, # in #12, etc.</documentation>       </annotation>     </attribute>     <attribute name="IndicatorOccurrence">       <annotation>         <documentation>No. occurs before 12 No.12</documentation>       </annotation>       <simpleType>         <restriction base="xs:NMTOKEN">           <enumeration value="Before"/>           <enumeration value="After"/>         </restriction>       </simpleType>     </attribute>     <attribute name="NumberTypeOccurrence">       <annotation>         <documentation>12 in BUILDING 12 occurs "after" premise type BUILDING</documentation>       </annotation>       <simpleType>         <restriction base="xs:NMTOKEN">           <enumeration value="Before"/>           <enumeration value="After"/>         </restriction>       </simpleType>     </attribute>     <attributeGroup ref="grPostal"/>     <anyAttribute namespace="##other"/>   </complexType> </element>

attribute PremiseNumber/@NumberType

type	restriction of NMTOKEN
facets	Kind  Value  Annotation enumeration  Single enumeration  Range
annotation	documentation Building 12-14 is "Range" and Building 12 is "Single"
source	<attribute name="NumberType">   <annotation>     <documentation>Building 12-14 is "Range" and Building 12 is "Single"</documentation>   </annotation>   <simpleType>     <restriction base="xs:NMTOKEN">       <enumeration value="Single"/>       <enumeration value="Range"/>     </restriction>   </simpleType> </attribute>

attribute PremiseNumber/@Type

source

<attribute name="Type"/>

attribute PremiseNumber/@Indicator

annotation	documentation No. in House No.12, # in #12, etc.
source	<attribute name="Indicator">   <annotation>     <documentation>No. in House No.12, # in #12, etc.</documentation>   </annotation> </attribute>

attribute PremiseNumber/@IndicatorOccurrence

type	restriction of NMTOKEN
facets	Kind  Value  Annotation enumeration  Before enumeration  After
annotation	documentation No. occurs before 12 No.12
source	<attribute name="IndicatorOccurrence">   <annotation>     <documentation>No. occurs before 12 No.12</documentation>   </annotation>   <simpleType>     <restriction base="xs:NMTOKEN">       <enumeration value="Before"/>       <enumeration value="After"/>     </restriction>   </simpleType> </attribute>

attribute PremiseNumber/@NumberTypeOccurrence

type	restriction of NMTOKEN
facets	Kind  Value  Annotation enumeration  Before enumeration  After
annotation	documentation 12 in BUILDING 12 occurs "after" premise type BUILDING
source	<attribute name="NumberTypeOccurrence">   <annotation>     <documentation>12 in BUILDING 12 occurs "after" premise type BUILDING</documentation>   </annotation>   <simpleType>     <restriction base="xs:NMTOKEN">       <enumeration value="Before"/>       <enumeration value="After"/>     </restriction>   </simpleType> </attribute>
