element AdministrativeArea

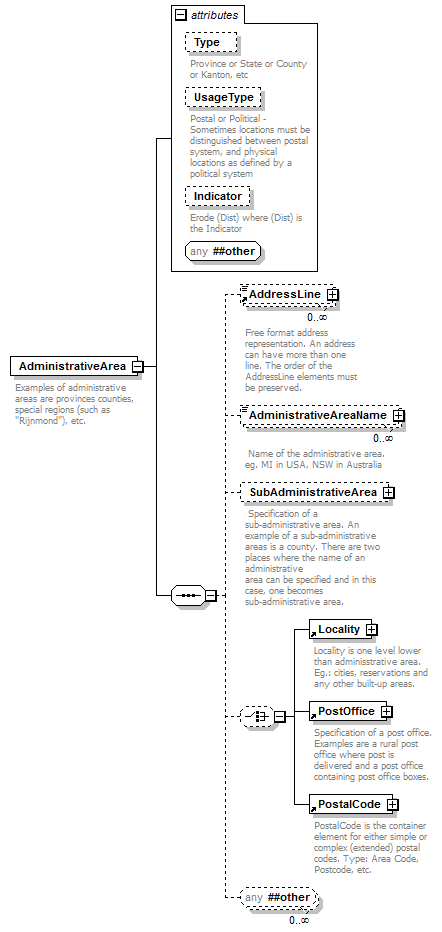

diagram ogckml22_diagrams/ogckml22_p346.png
namespace urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
properties
content complex
children AddressLine AdministrativeAreaName SubAdministrativeArea Locality PostOffice PostalCode
used by
element AddressDetails/Country
complexType AddressDetails
attributes
Name  Type  Use  Default  Fixed  Annotation
Type
documentation
Province or State or County or Kanton, etc
UsageType
documentation
Postal or Political - Sometimes locations must be distinguished between postal system, and physical locations as defined by a political system
Indicator
documentation
Erode (Dist) where (Dist) is the Indicator
annotation
documentation
Examples of administrative areas are provinces counties, special regions (such as "Rijnmond"), etc.
source <element name="AdministrativeArea">

<annotation>

<documentation>Examples of administrative areas are provinces counties, special regions (such as "Rijnmond"), etc.</documentation>

</annotation>

<complexType>

<sequence>

<element ref="AddressLine" minOccurs="0" maxOccurs="unbounded"/>

<element name="AdministrativeAreaName" minOccurs="0" maxOccurs="unbounded">

<annotation>

<documentation> Name of the administrative area. eg. MI in USA, NSW in Australia</documentation>

</annotation>

<complexType mixed="true">

<attribute name="Type"/>

<attributeGroup ref="grPostal"/>

<anyAttribute namespace="##other"/>

</complexType>

</element>

<element name="SubAdministrativeArea" minOccurs="0">

<annotation>

<documentation> Specification of a sub-administrative area. An example of a sub-administrative areas is a county. There are two places where the name of an administrative
area can be specified and in this case, one becomes sub-administrative area.
</documentation>

</annotation>

<complexType>

<sequence>

<element ref="AddressLine" minOccurs="0" maxOccurs="unbounded"/>

<element name="SubAdministrativeAreaName" minOccurs="0" maxOccurs="unbounded">

<annotation>

<documentation> Name of the sub-administrative area</documentation>

</annotation>

<complexType mixed="true">

<attribute name="Type"/>

<attributeGroup ref="grPostal"/>

<anyAttribute namespace="##other"/>

</complexType>

</element>

<choice minOccurs="0">

<element ref="Locality"/>

<element ref="PostOffice"/>

<element ref="PostalCode"/>

</choice>

<any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</sequence>

<attribute name="Type">

<annotation>

<documentation>Province or State or County or Kanton, etc</documentation>

</annotation>

</attribute>

<attribute name="UsageType">

<annotation>

<documentation>Postal or Political - Sometimes locations must be distinguished between postal system, and physical locations as defined by a political system</documentation>

</annotation>

</attribute>

<attribute name="Indicator">

<annotation>

<documentation>Erode (Dist) where (Dist) is the Indicator</documentation>

</annotation>

</attribute>

<anyAttribute namespace="##other"/>

</complexType>

</element>

<choice minOccurs="0">

<element ref="Locality"/>

<element ref="PostOffice"/>

<element ref="PostalCode"/>

</choice>

<any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</sequence>

<attribute name="Type">

<annotation>

<documentation>Province or State or County or Kanton, etc</documentation>

</annotation>

</attribute>

<attribute name="UsageType">

<annotation>

<documentation>Postal or Political - Sometimes locations must be distinguished between postal system, and physical locations as defined by a political system</documentation>

</annotation>

</attribute>

<attribute name="Indicator">

<annotation>

<documentation>Erode (Dist) where (Dist) is the Indicator</documentation>

</annotation>

</attribute>

<anyAttribute namespace="##other"/>

</complexType>
</element>

attribute AdministrativeArea/@Type
annotation
documentation
Province or State or County or Kanton, etc
source <attribute name="Type">

<annotation>

<documentation>Province or State or County or Kanton, etc</documentation>

</annotation>
</attribute>

attribute AdministrativeArea/@UsageType
annotation
documentation
Postal or Political - Sometimes locations must be distinguished between postal system, and physical locations as defined by a political system
source <attribute name="UsageType">

<annotation>

<documentation>Postal or Political - Sometimes locations must be distinguished between postal system, and physical locations as defined by a political system</documentation>

</annotation>
</attribute>

attribute AdministrativeArea/@Indicator
annotation
documentation
Erode (Dist) where (Dist) is the Indicator
source <attribute name="Indicator">

<annotation>

<documentation>Erode (Dist) where (Dist) is the Indicator</documentation>

</annotation>
</attribute>

element AdministrativeArea/AdministrativeAreaName

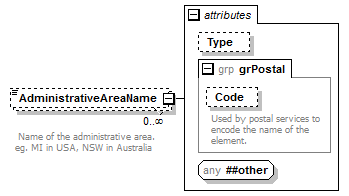

diagram ogckml22_diagrams/ogckml22_p347.png
namespace urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
properties
minOcc 0
maxOcc unbounded
content complex
mixed true
attributes
Name  Type  Use  Default  Fixed  Annotation
Type
Code
documentation
Used by postal services to encode the name of the element.
annotation
documentation
Name of the administrative area. eg. MI in USA, NSW in Australia
source <element name="AdministrativeAreaName" minOccurs="0" maxOccurs="unbounded">

<annotation>

<documentation> Name of the administrative area. eg. MI in USA, NSW in Australia</documentation>

</annotation>

<complexType mixed="true">

<attribute name="Type"/>

<attributeGroup ref="grPostal"/>

<anyAttribute namespace="##other"/>

</complexType>
</element>

attribute AdministrativeArea/AdministrativeAreaName/@Type
source <attribute name="Type"/>

element AdministrativeArea/SubAdministrativeArea

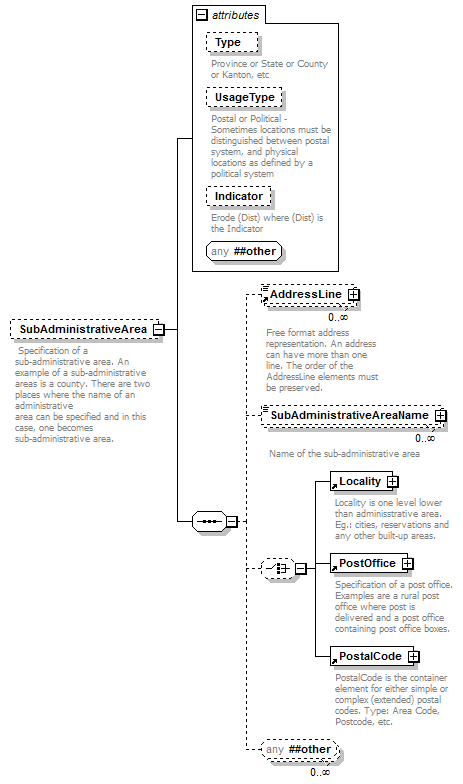

diagram ogckml22_diagrams/ogckml22_p348.png
namespace urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
properties
minOcc 0
maxOcc 1
content complex
children AddressLine SubAdministrativeAreaName Locality PostOffice PostalCode
attributes
Name  Type  Use  Default  Fixed  Annotation
Type
documentation
Province or State or County or Kanton, etc
UsageType
documentation
Postal or Political - Sometimes locations must be distinguished between postal system, and physical locations as defined by a political system
Indicator
documentation
Erode (Dist) where (Dist) is the Indicator
annotation
documentation
Specification of a sub-administrative area. An example of a sub-administrative areas is a county. There are two places where the name of an administrative
area can be specified and in this case, one becomes sub-administrative area.
source <element name="SubAdministrativeArea" minOccurs="0">

<annotation>

<documentation> Specification of a sub-administrative area. An example of a sub-administrative areas is a county. There are two places where the name of an administrative
area can be specified and in this case, one becomes sub-administrative area.
</documentation>

</annotation>

<complexType>

<sequence>

<element ref="AddressLine" minOccurs="0" maxOccurs="unbounded"/>

<element name="SubAdministrativeAreaName" minOccurs="0" maxOccurs="unbounded">

<annotation>

<documentation> Name of the sub-administrative area</documentation>

</annotation>

<complexType mixed="true">

<attribute name="Type"/>

<attributeGroup ref="grPostal"/>

<anyAttribute namespace="##other"/>

</complexType>

</element>

<choice minOccurs="0">

<element ref="Locality"/>

<element ref="PostOffice"/>

<element ref="PostalCode"/>

</choice>

<any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</sequence>

<attribute name="Type">

<annotation>

<documentation>Province or State or County or Kanton, etc</documentation>

</annotation>

</attribute>

<attribute name="UsageType">

<annotation>

<documentation>Postal or Political - Sometimes locations must be distinguished between postal system, and physical locations as defined by a political system</documentation>

</annotation>

</attribute>

<attribute name="Indicator">

<annotation>

<documentation>Erode (Dist) where (Dist) is the Indicator</documentation>

</annotation>

</attribute>

<anyAttribute namespace="##other"/>

</complexType>
</element>

attribute AdministrativeArea/SubAdministrativeArea/@Type
annotation
documentation
Province or State or County or Kanton, etc
source <attribute name="Type">

<annotation>

<documentation>Province or State or County or Kanton, etc</documentation>

</annotation>
</attribute>

attribute AdministrativeArea/SubAdministrativeArea/@UsageType
annotation
documentation
Postal or Political - Sometimes locations must be distinguished between postal system, and physical locations as defined by a political system
source <attribute name="UsageType">

<annotation>

<documentation>Postal or Political - Sometimes locations must be distinguished between postal system, and physical locations as defined by a political system</documentation>

</annotation>
</attribute>

attribute AdministrativeArea/SubAdministrativeArea/@Indicator
annotation
documentation
Erode (Dist) where (Dist) is the Indicator
source <attribute name="Indicator">

<annotation>

<documentation>Erode (Dist) where (Dist) is the Indicator</documentation>

</annotation>
</attribute>

element AdministrativeArea/SubAdministrativeArea/SubAdministrativeAreaName

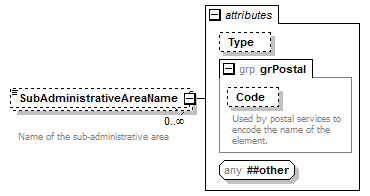

diagram ogckml22_diagrams/ogckml22_p349.png
namespace urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
properties
minOcc 0
maxOcc unbounded
content complex
mixed true
attributes
Name  Type  Use  Default  Fixed  Annotation
Type
Code
documentation
Used by postal services to encode the name of the element.
annotation
documentation
Name of the sub-administrative area
source <element name="SubAdministrativeAreaName" minOccurs="0" maxOccurs="unbounded">

<annotation>

<documentation> Name of the sub-administrative area</documentation>

</annotation>

<complexType mixed="true">

<attribute name="Type"/>

<attributeGroup ref="grPostal"/>

<anyAttribute namespace="##other"/>

</complexType>
</element>

attribute AdministrativeArea/SubAdministrativeArea/SubAdministrativeAreaName/@Type
source <attribute name="Type"/>
