complexType ImagePyramidType

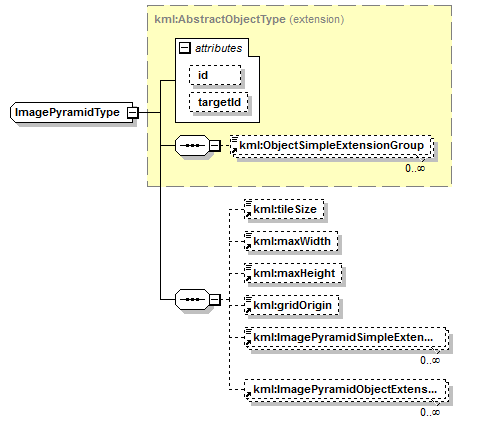

diagram kml22gx_diagrams/kml22gx_p322.png
namespace http://www.opengis.net/kml/2.2
type extension of kml:AbstractObjectType
properties
base kml:AbstractObjectType
final #all
children kml:ObjectSimpleExtensionGroup kml:tileSize kml:maxWidth kml:maxHeight kml:gridOrigin kml:ImagePyramidSimpleExtensionGroup kml:ImagePyramidObjectExtensionGroup
used by
element ImagePyramid
attributes
Name  Type  Use  Default  Fixed  Annotation
id  ID  optional
targetId  NCName  optional
source <complexType name="ImagePyramidType" final="#all">

<complexContent>

<extension base="kml:AbstractObjectType">

<sequence>

<element ref="kml:tileSize" minOccurs="0"/>

<element ref="kml:maxWidth" minOccurs="0"/>

<element ref="kml:maxHeight" minOccurs="0"/>

<element ref="kml:gridOrigin" minOccurs="0"/>

<element ref="kml:ImagePyramidSimpleExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>

<element ref="kml:ImagePyramidObjectExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>

</sequence>

</extension>

</complexContent>
</complexType>
