complexType X3DVolumeRenderStyleNode

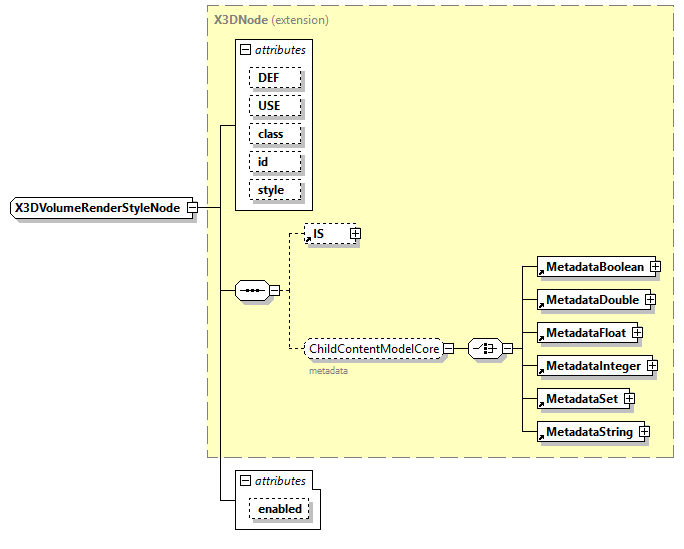

diagram
type	extension of X3DNode
properties	base  X3DNode abstract  true
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	element  ProjectionVolumeStyle complexType  X3DComposableVolumeRenderStyleNode
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 enabled   SFBool      true
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="VolumeRendering"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>                 The X3DVolumeRenderStyleNode abstract node type is the base type for all node types that                 specify a specific visual rendering style to be used when rendering volume data.
source	<xs:complexType name="X3DVolumeRenderStyleNode" abstract="true">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="VolumeRendering"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>                 The X3DVolumeRenderStyleNode abstract node type is the base type for all node types that                 specify a specific visual rendering style to be used when rendering volume data.             </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/volume.html#X3DVolumeRenderStyleNode"/>   </xs:annotation>   <xs:complexContent>     <xs:extension base="X3DNode">       <xs:attribute name="enabled" type="SFBool" default="true"/>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute X3DVolumeRenderStyleNode/@enabled

type	SFBool
properties	default  true
source	<xs:attribute name="enabled" type="SFBool" default="true"/>
