complexType X3DLightNode

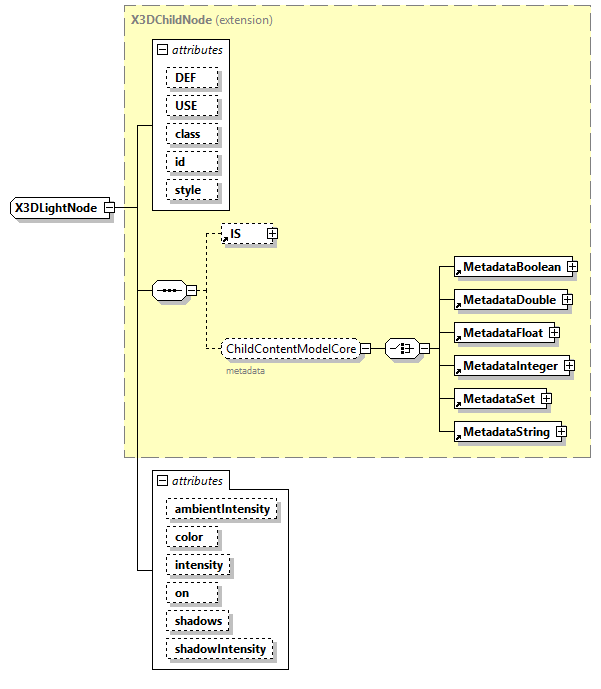

diagram
type	extension of X3DChildNode
properties	base  X3DChildNode abstract  true
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	elements  DirectionalLight PointLight SpotLight complexType  X3DTextureProjectorNode
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 ambientIntensity   unitIntervalType      0      color   SFColor      1 1 1      intensity   derived by: SFFloat      1      appinfo No upper limit on X3D4 lights, matching glTF Physically Based Rendering (PBR) on   SFBool      true      shadows   SFBool      false      shadowIntensity   unitIntervalType      1
annotation	appinfo <!-- global attribute default value can differ, and so is defined individually for each light node. --> <!-- <xs:attribute name="global" type="SFBool" fixed="inputOutputField"/> --> <xs:attribute name="componentName" type="componentNameChoices" fixed="Lighting"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>                 Light nodes provide illumination for rendering geometry in the scene.                 Implementing nodes must include a global field with type SFBool and accessType inputOutput.
source	<xs:complexType name="X3DLightNode" abstract="true">   <xs:annotation>     <xs:appinfo>       <!-- global attribute default value can differ, and so is defined individually for each light node. -->       <!-- <xs:attribute name="global" type="SFBool" fixed="inputOutputField"/> -->       <xs:attribute name="componentName" type="componentNameChoices" fixed="Lighting"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>                 Light nodes provide illumination for rendering geometry in the scene.                 Implementing nodes must include a global field with type SFBool and accessType inputOutput.             </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/lighting.html#X3DLightNode"/>   </xs:annotation>   <xs:complexContent>     <xs:extension base="X3DChildNode">       <xs:attribute name="ambientIntensity" type="unitIntervalType" default="0"/>       <xs:attribute name="color" type="SFColor" default="1 1 1"/>       <xs:attribute name="intensity" default="1">         <xs:annotation>           <xs:appinfo>No upper limit on X3D4 lights, matching glTF Physically Based Rendering (PBR)</xs:appinfo>         </xs:annotation>         <xs:simpleType>           <xs:restriction base="SFFloat">             <xs:minInclusive value="0"/>           </xs:restriction>         </xs:simpleType>       </xs:attribute>       <xs:attribute name="on" type="SFBool" default="true"/>       <xs:attribute name="shadows" type="SFBool" default="false"/>       <xs:attribute name="shadowIntensity" type="unitIntervalType" default="1"/>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute X3DLightNode/@ambientIntensity

type	unitIntervalType
properties	default  0
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="ambientIntensity" type="unitIntervalType" default="0"/>

attribute X3DLightNode/@color

type	SFColor
properties	default  1 1 1
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)\s+){2}([+]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="color" type="SFColor" default="1 1 1"/>

attribute X3DLightNode/@intensity

type	restriction of SFFloat
properties	default  1
facets	Kind  Value  Annotation minInclusive  0 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
annotation	appinfo No upper limit on X3D4 lights, matching glTF Physically Based Rendering (PBR)
source	<xs:attribute name="intensity" default="1">   <xs:annotation>     <xs:appinfo>No upper limit on X3D4 lights, matching glTF Physically Based Rendering (PBR)</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute X3DLightNode/@on

type	SFBool
properties	default  true
source	<xs:attribute name="on" type="SFBool" default="true"/>

attribute X3DLightNode/@shadows

type	SFBool
properties	default  false
source	<xs:attribute name="shadows" type="SFBool" default="false"/>

attribute X3DLightNode/@shadowIntensity

type	unitIntervalType
properties	default  1
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="shadowIntensity" type="unitIntervalType" default="1"/>
