element TimeSensor

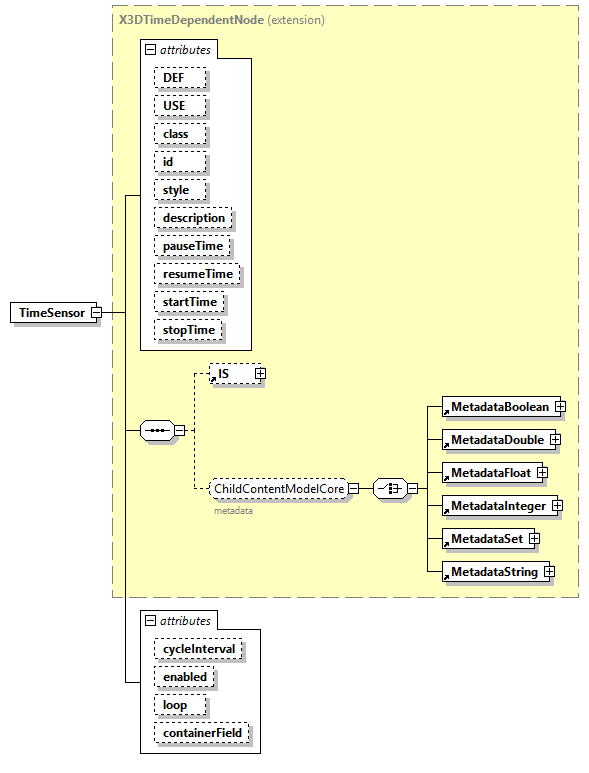

diagram x3d-4.0_p228.png
type extension of X3DTimeDependentNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
group ChildContentModelInterchange
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referencable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by XML stylesheets.
loop  SFBool    false
pauseTime  SFTime    0
appinfo
<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="Time"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
resumeTime  SFTime    0
appinfo
<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="Time"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
startTime  SFTime    0
stopTime  SFTime    0
cycleInterval  derived by: SFTime    1.0
enabled  SFBool    true
containerField  xs:NMTOKEN    children
annotation
appinfo
<xs:attribute name="cycleTime" type="SFTime" fixed="outputOnlyField"/>
<xs:attribute name="fraction_changed" type="SFFloat" fixed="outputOnlyField"/>
<xs:attribute name="time" type="SFTime" fixed="outputOnlyField"/>
<xs:attribute name="additionalInterface" type="xs:string" default="X3DSensorNode"/>
<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="Time"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="TimeSensor">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="cycleTime" type="SFTime" fixed="outputOnlyField"/>

<xs:attribute name="fraction_changed" type="SFFloat" fixed="outputOnlyField"/>

<xs:attribute name="time" type="SFTime" fixed="outputOnlyField"/>

<xs:attribute name="additionalInterface" type="xs:string" default="X3DSensorNode"/>

<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="Time"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="http://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/time.html#TimeSensor"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DTimeDependentNode">

<xs:attribute name="cycleInterval" default="1.0">

<!-- type="SFTimeNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minExclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="enabled" type="SFBool" default="true"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute TimeSensor/@cycleInterval
type restriction of SFTime
properties
default 1.0
facets
Kind Value Annotation
minExclusive 0
source <xs:attribute name="cycleInterval" default="1.0">

<!-- type="SFTimeNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minExclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute TimeSensor/@enabled
type SFBool
properties
default true
source <xs:attribute name="enabled" type="SFBool" default="true"/>

attribute TimeSensor/@containerField
type xs:NMTOKEN
properties
default children
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
