element ScalarChaser

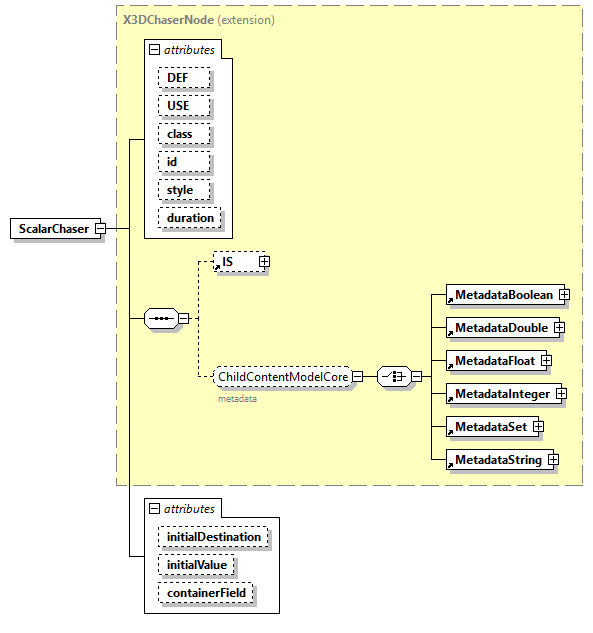

diagram x3d-4.0_p188.png
type extension of X3DChaserNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
group ChildContentModelFull
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referencable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by XML stylesheets.
duration  derived by: SFTime    1
initialDestination  SFFloat    0
initialValue  SFFloat    0
containerField  xs:NMTOKEN    children
annotation
appinfo
<xs:attribute name="set_destination" type="SFFloat" fixed="inputOnlyField"/>
<xs:attribute name="set_value" type="SFFloat" fixed="inputOnlyField"/>
<xs:attribute name="value_changed" type="SFFloat" fixed="outputOnlyField"/>
<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="Followers"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="ScalarChaser">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="set_destination" type="SFFloat" fixed="inputOnlyField"/>

<xs:attribute name="set_value" type="SFFloat" fixed="inputOnlyField"/>

<xs:attribute name="value_changed" type="SFFloat" fixed="outputOnlyField"/>

<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="Followers"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="http://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/followers.html#ScalarChaser"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DChaserNode">

<xs:attribute name="initialDestination" type="SFFloat" default="0"/>

<xs:attribute name="initialValue" type="SFFloat" default="0"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute ScalarChaser/@initialDestination
type SFFloat
properties
default 0
source <xs:attribute name="initialDestination" type="SFFloat" default="0"/>

attribute ScalarChaser/@initialValue
type SFFloat
properties
default 0
source <xs:attribute name="initialValue" type="SFFloat" default="0"/>

attribute ScalarChaser/@containerField
type xs:NMTOKEN
properties
default children
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
