element PointEmitter

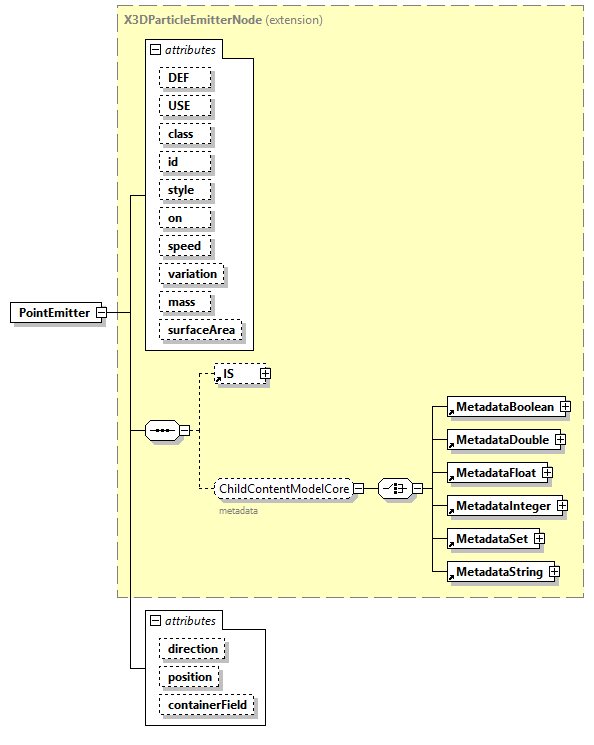

diagram x3d-4.0_p161.png
type extension of X3DParticleEmitterNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
element ParticleSystem
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referencable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by XML stylesheets.
speed  derived by: SFFloat    0
variation  derived by: SFFloat    0.25
mass  derived by: SFFloat    0
surfaceArea  derived by: SFFloat    0
direction  SFVec3f    0 1 0
position  SFVec3f    0 0 0
containerField  xs:NMTOKEN    emitter
annotation
appinfo
<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="ParticleSystems"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="PointEmitter">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="ParticleSystems"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="http://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/particle_systems.html#PointEmitter"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DParticleEmitterNode">

<xs:attribute name="direction" type="SFVec3f" default="0 1 0"/>

<xs:attribute name="position" type="SFVec3f" default="0 0 0"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="emitter"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute PointEmitter/@direction
type SFVec3f
properties
default 0 1 0
facets
Kind Value Annotation
whiteSpace collapse
pattern ((\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)? (\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)? (\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)?)?
source <xs:attribute name="direction" type="SFVec3f" default="0 1 0"/>

attribute PointEmitter/@position
type SFVec3f
properties
default 0 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern ((\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)? (\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)? (\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)?)?
source <xs:attribute name="position" type="SFVec3f" default="0 0 0"/>

attribute PointEmitter/@containerField
type xs:NMTOKEN
properties
default emitter
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="emitter"/>
