element OpacityMapVolumeStyle

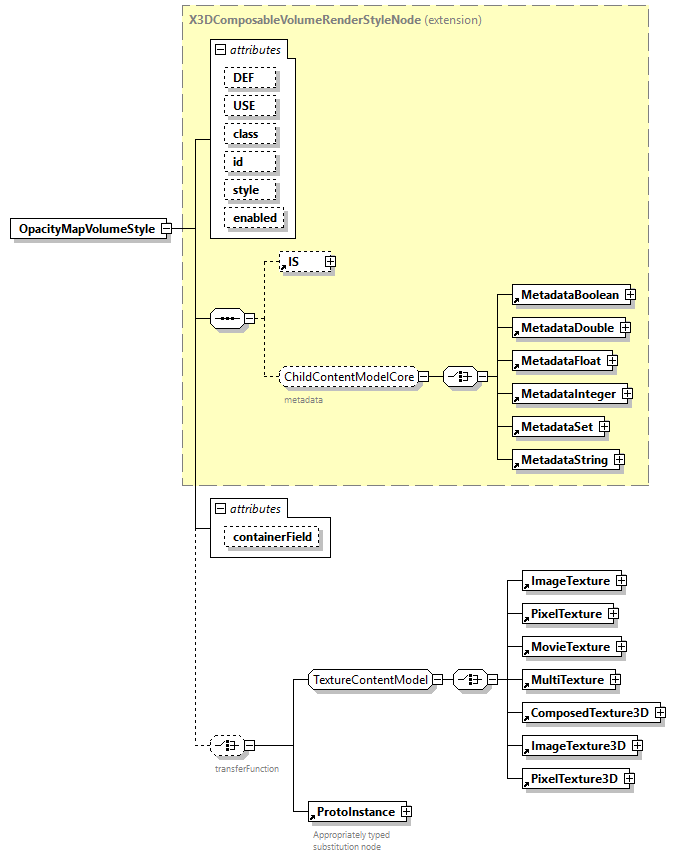

diagram x3d-4.0_diagrams/x3d-4.0_p165.png
type extension of X3DComposableVolumeRenderStyleNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString ImageTexture PixelTexture MovieTexture MultiTexture ComposedTexture3D ImageTexture3D PixelTexture3D ProtoInstance
used by
group VolumeRenderStyleContentModel
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

enabled  SFBool    true
containerField  xs:NMTOKEN    renderStyle
annotation
appinfo
<xs:element name="transferFunction" type="SFNode" fixed="inputOutputField" default="X3DTexture2DNode|X3DTexture3DNode">
<xs:annotation>
<xs:appinfo>
<xs:attribute name="componentName" type="componentNameChoices" fixed="VolumeRendering"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
                            Only 2D texture transfer functions need be supported at level 1.
                        </xs:appinfo>
</xs:annotation>
</xs:element>
<xs:attribute name="componentName" type="componentNameChoices" fixed="VolumeRendering"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="OpacityMapVolumeStyle">

<xs:annotation>

<xs:appinfo>

<xs:element name="transferFunction" type="SFNode" fixed="inputOutputField" default="X3DTexture2DNode|X3DTexture3DNode">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="VolumeRendering"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
                            Only 2D texture transfer functions need be supported at level 1.

</xs:appinfo>

</xs:annotation>

</xs:element>

<xs:attribute name="componentName" type="componentNameChoices" fixed="VolumeRendering"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/volume.html#OpacityMapVolumeStyle"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DComposableVolumeRenderStyleNode">

<xs:choice minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>transferFunction</xs:documentation>

</xs:annotation>

<xs:group ref="TextureContentModel"/>

<xs:element ref="ProtoInstance">

<xs:annotation>

<xs:documentation>Appropriately typed substitution node</xs:documentation>

</xs:annotation>

</xs:element>

</xs:choice>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="renderStyle"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute OpacityMapVolumeStyle/@containerField
type xs:NMTOKEN
properties
default renderStyle
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="renderStyle"/>
