element NavigationInfo

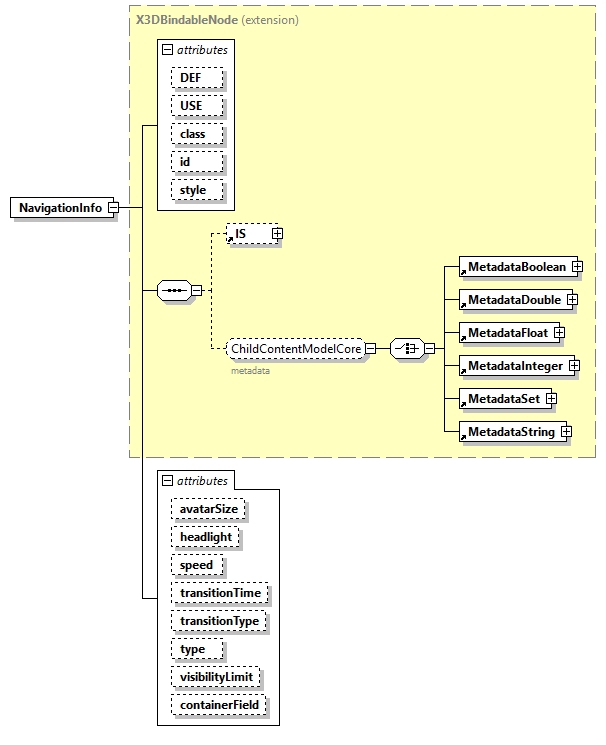

diagram
type	extension of X3DBindableNode
properties	content  complex
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	complexType  X3DViewpointNode group  ChildContentModelInterchange
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 avatarSize   MFFloat      0.25 1.6 0.75      appinfo <xs:minInclusive value="0"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> headlight   SFBool      true      speed   derived by: SFFloat      1      appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> transitionTime   derived by: SFTime      1.0      transitionType   MFString      "LINEAR"      type   MFString      "EXAMINE" "ANY"      appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>                                 type attribute support for at least "ANY", "FLY", "EXAMINE", and "NONE" at level 1,                                 plus support for "WALK", "LOOKAT" at level 2.                             visibilityLimit   derived by: SFFloat      0      appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> containerField   xs:NMTOKEN      children
annotation	appinfo <!-- optional values, can be extended --> <xs:attribute name="transitionType" type="navigationTransitionTypeValues"/> <xs:attribute name="type" type="navigationTypeValues"/> <xs:attribute name="transitionComplete" type="SFBool" fixed="outputOnlyField"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source	<xs:element name="NavigationInfo">   <xs:annotation>     <xs:appinfo>       <!-- optional values, can be extended -->       <xs:attribute name="transitionType" type="navigationTransitionTypeValues"/>       <xs:attribute name="type" type="navigationTypeValues"/>       <xs:attribute name="transitionComplete" type="SFBool" fixed="outputOnlyField"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/navigation.html#NavigationInfo"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DBindableNode">         <xs:attribute name="avatarSize" type="MFFloat" default="0.25 1.6 0.75">           <xs:annotation>             <xs:appinfo>               <xs:minInclusive value="0"/>               <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>               <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>             </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="headlight" type="SFBool" default="true"/>         <xs:attribute name="speed" default="1">           <xs:annotation>             <xs:appinfo>               <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>               <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>             </xs:appinfo>           </xs:annotation>           <!-- type="SFFloatNonNegative" -->           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="transitionTime" default="1.0">           <!-- type="SFTimeNonNegative" -->           <xs:simpleType>             <xs:restriction base="SFTime">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="transitionType" type="MFString" default='"LINEAR"'/>         <xs:attribute name="type" type="MFString" default='"EXAMINE" "ANY"'>           <xs:annotation>             <xs:appinfo>               <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>               <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>                                 type attribute support for at least "ANY", "FLY", "EXAMINE", and "NONE" at level 1,                                 plus support for "WALK", "LOOKAT" at level 2.                             </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="visibilityLimit" default="0">           <xs:annotation>             <xs:appinfo>               <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>               <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>             </xs:appinfo>           </xs:annotation>           <!-- type="SFFloatNonNegative" -->           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute NavigationInfo/@avatarSize

type	MFFloat
properties	default  0.25 1.6 0.75
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
annotation	appinfo <xs:minInclusive value="0"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:attribute name="avatarSize" type="MFFloat" default="0.25 1.6 0.75">   <xs:annotation>     <xs:appinfo>       <xs:minInclusive value="0"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute NavigationInfo/@headlight

type	SFBool
properties	default  true
source	<xs:attribute name="headlight" type="SFBool" default="true"/>

attribute NavigationInfo/@speed

type	restriction of SFFloat
properties	default  1
facets	Kind  Value  Annotation minInclusive  0 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:attribute name="speed" default="1">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>   </xs:annotation>   <!-- type="SFFloatNonNegative" -->   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute NavigationInfo/@transitionTime

type	restriction of SFTime
properties	default  1.0
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="transitionTime" default="1.0">   <!-- type="SFTimeNonNegative" -->   <xs:simpleType>     <xs:restriction base="SFTime">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute NavigationInfo/@transitionType

type	MFString
properties	default  "LINEAR"
source	<xs:attribute name="transitionType" type="MFString" default='"LINEAR"'/>

attribute NavigationInfo/@type

type	MFString
properties	default  "EXAMINE" "ANY"
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>                                 type attribute support for at least "ANY", "FLY", "EXAMINE", and "NONE" at level 1,                                 plus support for "WALK", "LOOKAT" at level 2.
source	<xs:attribute name="type" type="MFString" default='"EXAMINE" "ANY"'>   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>                                 type attribute support for at least "ANY", "FLY", "EXAMINE", and "NONE" at level 1,                                 plus support for "WALK", "LOOKAT" at level 2.                             </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute NavigationInfo/@visibilityLimit

type	restriction of SFFloat
properties	default  0
facets	Kind  Value  Annotation minInclusive  0 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:attribute name="visibilityLimit" default="0">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>   </xs:annotation>   <!-- type="SFFloatNonNegative" -->   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute NavigationInfo/@containerField

type	xs:NMTOKEN
properties	default  children
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
