element LineProperties

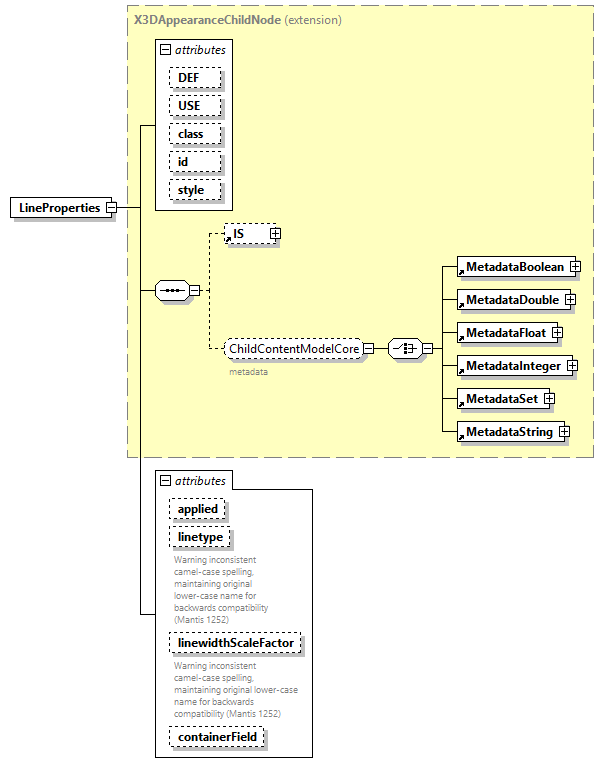

diagram
type	extension of X3DAppearanceChildNode
properties	content  complex
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	group  AppearanceChildContentModelNoProtoInstance
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 applied   SFBool      true      linetype   lineTypeValues      1      appinfo <xs:attribute name="alias" type="xs:string" fixed="lineType"/> documentation Warning inconsistent camel-case spelling, maintaining original lower-case name for backwards compatibility (Mantis 1252) linewidthScaleFactor   SFFloat      0      appinfo <xs:attribute name="alias" type="xs:string" fixed="lineWidthScaleFactor"/> documentation Warning inconsistent camel-case spelling, maintaining original lower-case name for backwards compatibility (Mantis 1252) containerField   xs:NMTOKEN      lineProperties
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:element name="LineProperties">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/shape.html#LineProperties"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DAppearanceChildNode">         <xs:attribute name="applied" type="SFBool" default="true"/>         <xs:attribute name="linetype" type="lineTypeValues" default="1">           <xs:annotation>             <xs:appinfo>               <xs:attribute name="alias" type="xs:string" fixed="lineType"/>             </xs:appinfo>             <xs:documentation>Warning inconsistent camel-case spelling, maintaining original lower-case name for backwards compatibility (Mantis 1252)</xs:documentation>           </xs:annotation>         </xs:attribute>         <xs:attribute name="linewidthScaleFactor" type="SFFloat" default="0">           <xs:annotation>             <xs:appinfo>               <xs:attribute name="alias" type="xs:string" fixed="lineWidthScaleFactor"/>             </xs:appinfo>             <xs:documentation>Warning inconsistent camel-case spelling, maintaining original lower-case name for backwards compatibility (Mantis 1252)</xs:documentation>           </xs:annotation>         </xs:attribute>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="lineProperties"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute LineProperties/@applied

type	SFBool
properties	default  true
source	<xs:attribute name="applied" type="SFBool" default="true"/>

attribute LineProperties/@linetype

type	lineTypeValues
properties	default  1
facets	Kind  Value  Annotation minInclusive  0 enumeration  1 appinfo <xs:attribute name="alias" type="xs:string" default="SOLID"/>                         Solid                     enumeration  2 appinfo <xs:attribute name="alias" type="xs:string" default="DASHED"/>                         Dashed                     enumeration  3 appinfo <xs:attribute name="alias" type="xs:string" default="DOTTED"/>                         Dotted                     enumeration  4 appinfo <xs:attribute name="alias" type="xs:string" default="DASHED_DOTTED"/>                         Dashed-dotted                     enumeration  5 appinfo <xs:attribute name="alias" type="xs:string" default="DASHED_DOT_DOT"/>                         Dash-dot-dot                     enumeration  6 appinfo <xs:attribute name="alias" type="xs:string" default="SINGLE_ARROW"/>                         (single arrow)                     enumeration  7 appinfo <xs:attribute name="alias" type="xs:string" default="SINGLE_DOT"/>                         (single dot)                     enumeration  8 appinfo <xs:attribute name="alias" type="xs:string" default="DOUBLE_ARROW"/>                         (double arrow)                     enumeration  9 appinfo <xs:attribute name="alias" type="xs:string" default="STITCH_LINE"/>                         (stitch line)                     enumeration  10 appinfo <xs:attribute name="alias" type="xs:string" default="CHAIN_LINE"/>                         (chain line)                     enumeration  11 appinfo <xs:attribute name="alias" type="xs:string" default="CENTER_LINE"/>                         (center line)                     enumeration  12 appinfo <xs:attribute name="alias" type="xs:string" default="HIDDEN_LINE"/>                         (hidden line)                     enumeration  13 appinfo <xs:attribute name="alias" type="xs:string" default="PHANTOM_LINE"/>                         (phantom line)                     enumeration  14 appinfo <xs:attribute name="alias" type="xs:string" default="BREAK_LINE_STYLE_1"/>                         (break line - style 1)                     enumeration  15 appinfo <xs:attribute name="alias" type="xs:string" default="BREAK_LINE_STYLE_2"/>                         (break line - style 2)                     enumeration  16 appinfo <xs:attribute name="alias" type="xs:string" default="USER_SPECIFIED_DASH_PATTERN"/>                         User-specified dash pattern
annotation	appinfo <xs:attribute name="alias" type="xs:string" fixed="lineType"/> documentation Warning inconsistent camel-case spelling, maintaining original lower-case name for backwards compatibility (Mantis 1252)
source	<xs:attribute name="linetype" type="lineTypeValues" default="1">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="alias" type="xs:string" fixed="lineType"/>     </xs:appinfo>     <xs:documentation>Warning inconsistent camel-case spelling, maintaining original lower-case name for backwards compatibility (Mantis 1252)</xs:documentation>   </xs:annotation> </xs:attribute>

attribute LineProperties/@linewidthScaleFactor

type	SFFloat
properties	default  0
facets	Kind  Value  Annotation pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
annotation	appinfo <xs:attribute name="alias" type="xs:string" fixed="lineWidthScaleFactor"/> documentation Warning inconsistent camel-case spelling, maintaining original lower-case name for backwards compatibility (Mantis 1252)
source	<xs:attribute name="linewidthScaleFactor" type="SFFloat" default="0">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="alias" type="xs:string" fixed="lineWidthScaleFactor"/>     </xs:appinfo>     <xs:documentation>Warning inconsistent camel-case spelling, maintaining original lower-case name for backwards compatibility (Mantis 1252)</xs:documentation>   </xs:annotation> </xs:attribute>

attribute LineProperties/@containerField

type	xs:NMTOKEN
properties	default  lineProperties
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="lineProperties"/>
