element HAnimMotion

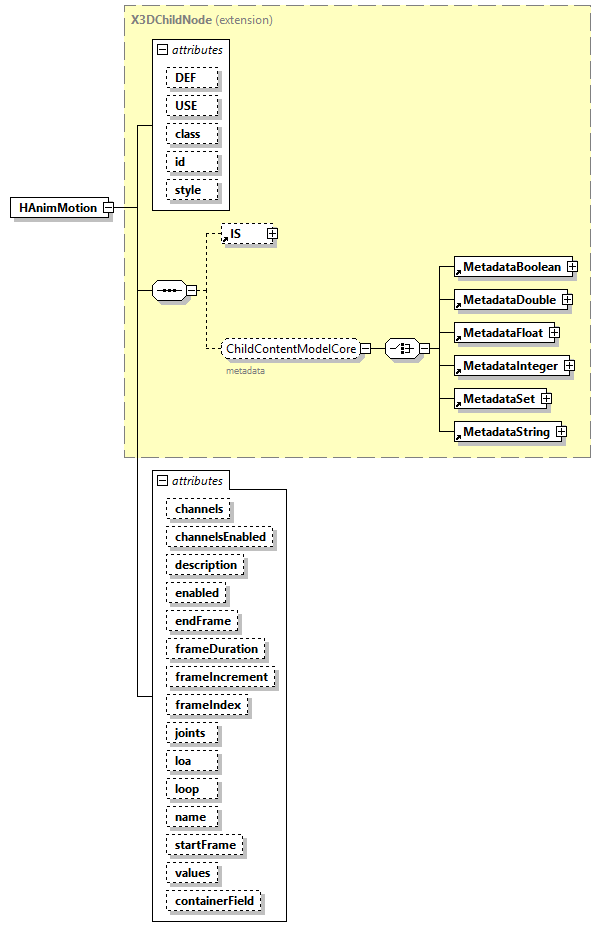

diagram x3d-4.0_diagrams/x3d-4.0_p103.png
type extension of X3DChildNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
element HAnimHumanoid
group ChildContentModelHumanoidAnimation
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

channels  SFString
channelsEnabled  MFBool
description  SFString
enabled  SFBool    true
endFrame  derived by: SFInt32    0
frameDuration  derived by: SFTime    0.1
frameIncrement  SFInt32    1
frameIndex  derived by: SFInt32    0
joints  SFString
loa  loaType    -1
loop  SFBool    false
name  xs:NMTOKEN
appinfo
name attribute is ordinarily required, unless this is a USE node
startFrame  derived by: SFInt32    0
values  MFFloat
containerField  containerFieldChoicesHAnimMotion    motions
annotation
appinfo
<xs:attribute name="cycleTime" fixed="outputOnlyField">
<xs:simpleType>
<xs:restriction base="SFTime">
<xs:minInclusive value="0"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="elapsedTime" fixed="outputOnlyField">
<xs:simpleType>
<xs:restriction base="SFTime">
<xs:minInclusive value="0"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="frameCount" fixed="outputOnlyField">
<xs:simpleType>
<xs:restriction base="SFInt32">
<xs:minInclusive value="0"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="next" type="SFBool" fixed="inputOnlyField"/>
<xs:attribute name="previous" type="SFBool" fixed="inputOnlyField"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="HAnim"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source <xs:element name="HAnimMotion">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="cycleTime" fixed="outputOnlyField">

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="elapsedTime" fixed="outputOnlyField">

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="frameCount" fixed="outputOnlyField">

<xs:simpleType>

<xs:restriction base="SFInt32">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="next" type="SFBool" fixed="inputOnlyField"/>

<xs:attribute name="previous" type="SFBool" fixed="inputOnlyField"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="HAnim"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/hanim.html#HAnimMotion"/>

<!-- HAnim specification https://www.web3d.org/documents/specifications/19774/V2.0/MotionDataAnimation/MotionNodes.html#MotionObject -->

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DChildNode">

<xs:attribute name="channels" type="SFString"/>

<xs:attribute name="channelsEnabled" type="MFBool"/>

<xs:attribute name="description" type="SFString"/>

<xs:attribute name="enabled" type="SFBool" default="true"/>

<xs:attribute name="endFrame" default="0">

<xs:simpleType>

<xs:restriction base="SFInt32">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="frameDuration" default="0.1">

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minExclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="frameIncrement" type="SFInt32" default="1"/>

<xs:attribute name="frameIndex" default="0">

<xs:simpleType>

<xs:restriction base="SFInt32">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="joints" type="SFString"/>

<xs:attribute name="loa" type="loaType" default="-1"/>

<xs:attribute name="loop" type="SFBool" default="false"/>

<xs:attribute name="name" type="xs:NMTOKEN">

<xs:annotation>

<xs:appinfo>name attribute is ordinarily required, unless this is a USE node</xs:appinfo>

<!-- Design note: cannot REQUIRE @name field or else USE nodes incorrectly fail to validate -->

<xs:documentation source="https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html#NameTyping"/>

</xs:annotation>

</xs:attribute>

<xs:attribute name="startFrame" default="0">

<xs:simpleType>

<xs:restriction base="SFInt32">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="values" type="MFFloat"/>

<xs:attribute name="containerField" type="containerFieldChoicesHAnimMotion" default="motions"/>

</xs:extension>

<!--
                    <xs:attribute name="skeletalConfiguration" type="SFString" default="BASIC">

<xs:annotation>

<xs:appinfo>Mantis 1415 for compatibility testing with HAnimHumanoid</xs:appinfo>

</xs:annotation>

</xs:attribute>
                    --
>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute HAnimMotion/@channels
type SFString
source <xs:attribute name="channels" type="SFString"/>

attribute HAnimMotion/@channelsEnabled
type MFBool
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*((true|false)\s*,?\s*)*
source <xs:attribute name="channelsEnabled" type="MFBool"/>

attribute HAnimMotion/@description
type SFString
source <xs:attribute name="description" type="SFString"/>

attribute HAnimMotion/@enabled
type SFBool
properties
default true
source <xs:attribute name="enabled" type="SFBool" default="true"/>

attribute HAnimMotion/@endFrame
type restriction of SFInt32
properties
default 0
facets
Kind Value Annotation
minInclusive 0
source <xs:attribute name="endFrame" default="0">

<xs:simpleType>

<xs:restriction base="SFInt32">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute HAnimMotion/@frameDuration
type restriction of SFTime
properties
default 0.1
facets
Kind Value Annotation
minExclusive 0
source <xs:attribute name="frameDuration" default="0.1">

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minExclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute HAnimMotion/@frameIncrement
type SFInt32
properties
default 1
source <xs:attribute name="frameIncrement" type="SFInt32" default="1"/>

attribute HAnimMotion/@frameIndex
type restriction of SFInt32
properties
default 0
facets
Kind Value Annotation
minInclusive 0
source <xs:attribute name="frameIndex" default="0">

<xs:simpleType>

<xs:restriction base="SFInt32">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute HAnimMotion/@joints
type SFString
source <xs:attribute name="joints" type="SFString"/>

attribute HAnimMotion/@loa
type loaType
properties
default -1
facets
Kind Value Annotation
minInclusive -1
maxInclusive 4
source <xs:attribute name="loa" type="loaType" default="-1"/>

attribute HAnimMotion/@loop
type SFBool
properties
default false
source <xs:attribute name="loop" type="SFBool" default="false"/>

attribute HAnimMotion/@name
type xs:NMTOKEN
annotation
appinfo
name attribute is ordinarily required, unless this is a USE node
source <xs:attribute name="name" type="xs:NMTOKEN">

<xs:annotation>

<xs:appinfo>name attribute is ordinarily required, unless this is a USE node</xs:appinfo>

<!-- Design note: cannot REQUIRE @name field or else USE nodes incorrectly fail to validate -->

<xs:documentation source="https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html#NameTyping"/>

</xs:annotation>
</xs:attribute>

attribute HAnimMotion/@startFrame
type restriction of SFInt32
properties
default 0
facets
Kind Value Annotation
minInclusive 0
source <xs:attribute name="startFrame" default="0">

<xs:simpleType>

<xs:restriction base="SFInt32">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute HAnimMotion/@values
type MFFloat
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source <xs:attribute name="values" type="MFFloat"/>

attribute HAnimMotion/@containerField
type containerFieldChoicesHAnimMotion
properties
default motions
facets
Kind Value Annotation
enumeration children
appinfo
parent node is a grouping node
enumeration motions
appinfo
parent node is HAnimHumanoid
source <xs:attribute name="containerField" type="containerFieldChoicesHAnimMotion" default="motions"/>
