element GeoViewpoint

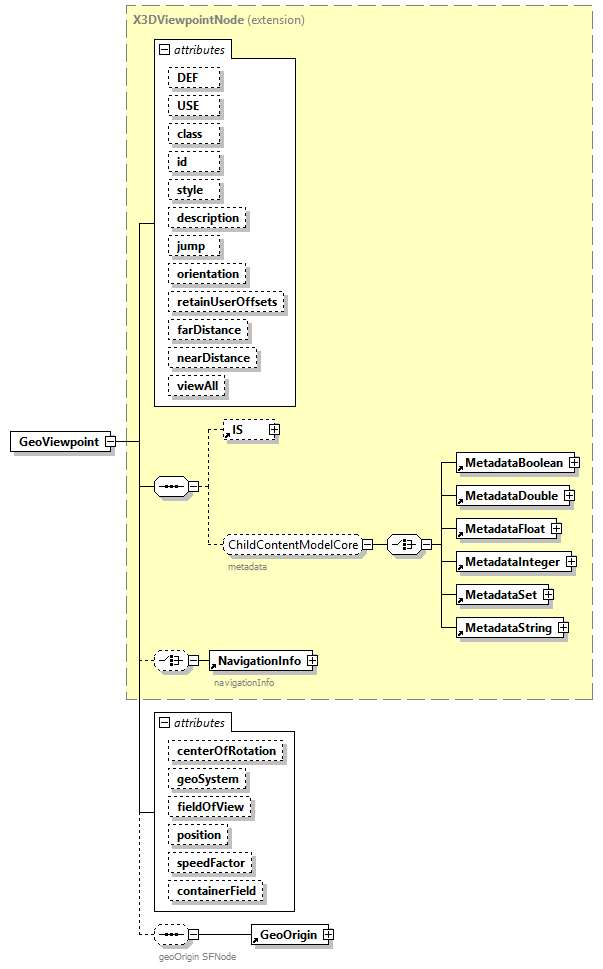

diagram
type	extension of X3DViewpointNode
properties	content  complex
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString NavigationInfo GeoOrigin
used by	elements  GeoMetadata ViewpointGroup group  ChildContentModelGeoSpatial
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 description   SFString            appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> jump   SFBool      true      orientation   SFRotation      0 0 1 0      retainUserOffsets   SFBool      false      appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> farDistance   SFFloat      -1      nearDistance   SFFloat      -1      viewAll   SFBool      false      centerOfRotation   SFVec3d      0 0 0      geoSystem   geoSystemType      "GD" "WE"      fieldOfView   derived by: SFFloat      0.7854      position   SFVec3d      0 0 100000      speedFactor   derived by: SFFloat      1.0      containerField   xs:NMTOKEN      children
annotation	appinfo <xs:element name="geoOrigin" type="SFNode" fixed="initializeOnlyField" default="GeoOrigin"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Geospatial"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/> <!-- X3D version 3.3 GeoViewpoint changes: added centerOfRotation and retainUserOffsets, removed navType and headlight, removed set_position and set_orientation -->
source	<xs:element name="GeoViewpoint">   <xs:annotation>     <xs:appinfo>       <xs:element name="geoOrigin" type="SFNode" fixed="initializeOnlyField" default="GeoOrigin"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Geospatial"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>       <!-- X3D version 3.3 GeoViewpoint changes: added centerOfRotation and retainUserOffsets, removed navType and headlight, removed set_position and set_orientation -->     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/geospatial.html#GeoViewpoint"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DViewpointNode">         <xs:sequence minOccurs="0">           <xs:annotation>             <xs:documentation>geoOrigin SFNode</xs:documentation>           </xs:annotation>           <xs:element ref="GeoOrigin"/>         </xs:sequence>         <xs:attribute name="centerOfRotation" type="SFVec3d" default="0 0 0"/>         <xs:attribute name="geoSystem" type="geoSystemType" default='"GD" "WE"'/>         <xs:attribute name="fieldOfView" default="0.7854">           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minExclusive value="0"/>               <xs:maxExclusive value="3.1416"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="position" type="SFVec3d" default="0 0 100000"/>         <xs:attribute name="speedFactor" default="1.0">           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>       </xs:extension>       <!-- headlight, navType refactored and removed in version 3.3 -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute GeoViewpoint/@centerOfRotation

type	SFVec3d
properties	default  0 0 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="centerOfRotation" type="SFVec3d" default="0 0 0"/>

attribute GeoViewpoint/@geoSystem

type	geoSystemType
properties	default  "GD" "WE"
source	<xs:attribute name="geoSystem" type="geoSystemType" default='"GD" "WE"'/>

attribute GeoViewpoint/@fieldOfView

type	restriction of SFFloat
properties	default  0.7854
facets	Kind  Value  Annotation minExclusive  0 maxExclusive  3.1416 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="fieldOfView" default="0.7854">   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minExclusive value="0"/>       <xs:maxExclusive value="3.1416"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute GeoViewpoint/@position

type	SFVec3d
properties	default  0 0 100000
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="position" type="SFVec3d" default="0 0 100000"/>

attribute GeoViewpoint/@speedFactor

type	restriction of SFFloat
properties	default  1.0
facets	Kind  Value  Annotation minInclusive  0 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="speedFactor" default="1.0">   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute GeoViewpoint/@containerField

type	xs:NMTOKEN
properties	default  children
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
