element FogCoordinate

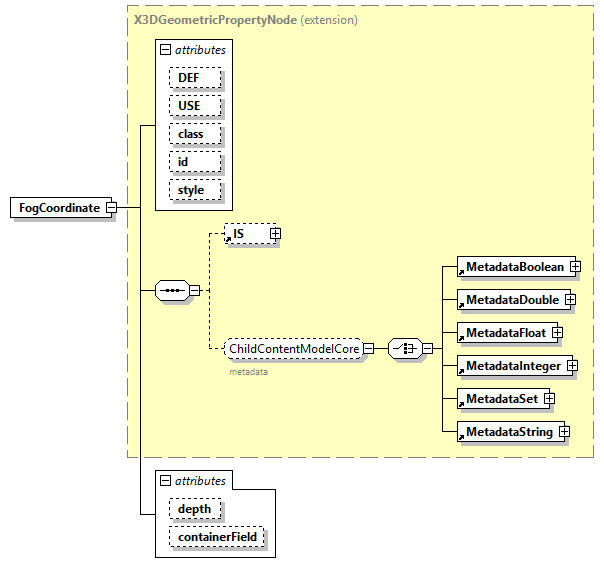

diagram x3d-4.0_p72.png
type extension of X3DGeometricPropertyNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
element ElevationGrid
groups ColorCoordinateNormalTexCoordContentModel ColorNormalTexCoordContentModel ComposedGeometryContentModel
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referencable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by XML stylesheets.
depth  MFFloat
appinfo
<xs:minInclusive value="0"/>
<xs:maxInclusive value="1"/>
containerField  xs:NMTOKEN    fogCoord
annotation
appinfo
<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="EnvironmentalEffects"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
source <xs:element name="FogCoordinate">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="EnvironmentalEffects"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>

</xs:appinfo>

<xs:documentation source="http://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/enveffects.html#FogCoordinate"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DGeometricPropertyNode">

<xs:attribute name="depth" type="MFFloat">

<xs:annotation>

<xs:appinfo>

<xs:minInclusive value="0"/>

<xs:maxInclusive value="1"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="fogCoord"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute FogCoordinate/@depth
type MFFloat
facets
Kind Value Annotation
whiteSpace collapse
pattern (((\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)?)?( )?(,)?( )?)*
annotation
appinfo
<xs:minInclusive value="0"/>
<xs:maxInclusive value="1"/>
source <xs:attribute name="depth" type="MFFloat">

<xs:annotation>

<xs:appinfo>

<xs:minInclusive value="0"/>

<xs:maxInclusive value="1"/>

</xs:appinfo>

</xs:annotation>
</xs:attribute>

attribute FogCoordinate/@containerField
type xs:NMTOKEN
properties
default fogCoord
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="fogCoord"/>
