element CylinderSensor

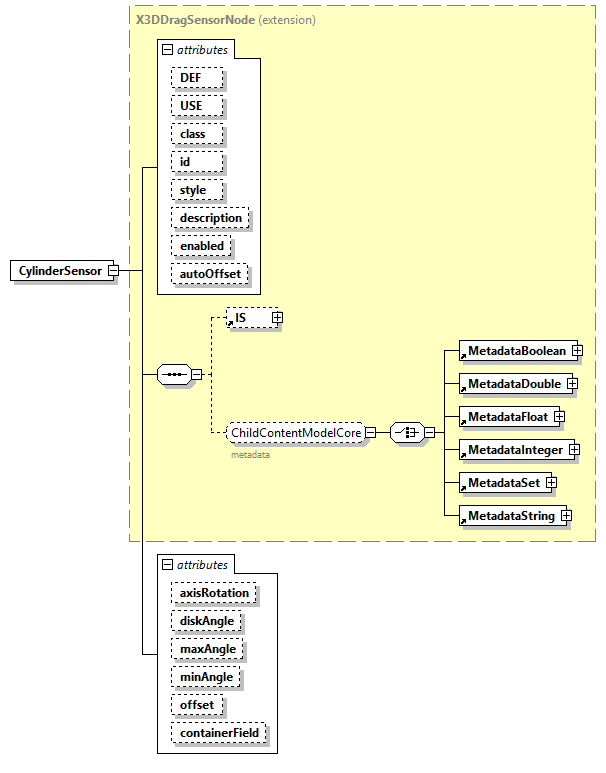

diagram x3d-4.0_p53.png
type extension of X3DDragSensorNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
group ChildContentModelInteractive
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referencable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by XML stylesheets.
enabled  SFBool    true
description  SFString
autoOffset  SFBool    true
axisRotation  SFRotation    0 1 0 0
diskAngle  derived by: SFFloat    0.26179167
maxAngle  derived by: SFFloat    -1
minAngle  derived by: SFFloat    0
offset  SFFloat    0
containerField  xs:NMTOKEN    children
annotation
appinfo
<xs:attribute name="rotation_changed" type="SFRotation" fixed="outputOnlyField"/>
<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="PointingDeviceSensor"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="CylinderSensor">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="rotation_changed" type="SFRotation" fixed="outputOnlyField"/>

<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="PointingDeviceSensor"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="http://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/pointingsensor.html#CylinderSensor"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DDragSensorNode">

<xs:attribute name="axisRotation" type="SFRotation" default="0 1 0 0"/>

<xs:attribute name="diskAngle" default="0.26179167">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

<xs:maxInclusive value="1.5708"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="maxAngle" default="-1">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minExclusive value="-6.2832"/>

<xs:maxExclusive value="6.2832"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="minAngle" default="0">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minExclusive value="-6.2832"/>

<xs:maxExclusive value="6.2832"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="offset" type="SFFloat" default="0"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute CylinderSensor/@axisRotation
type SFRotation
properties
default 0 1 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern ((\+|\-)?(((\.[0-9]+|0(\.[0-9]*)?)((E|e)(\+|\-)?[0-9]+)?)|(1(\.[0]*)?((E|e)\-[0-9]+)?)|([1-9](\.[0-9]*)((E|e)\-[0-9]+))) (\+|\-)?(((\.[0-9]+|0(\.[0-9]*)?)((E|e)(\+|\-)?[0-9]+)?)|(1(\.[0]*)?((E|e)\-[0-9]+)?)|([1-9](\.[0-9]*)((E|e)\-[0-9]+))) (\+|\-)?(((\.[0-9]+|0(\.[0-9]*)?)((E|e)(\+|\-)?[0-9]+)?)|(1(\.[0]*)?((E|e)\-[0-9]+)?)|([1-9](\.[0-9]*)((E|e)\-[0-9]+))) (\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)?)?
source <xs:attribute name="axisRotation" type="SFRotation" default="0 1 0 0"/>

attribute CylinderSensor/@diskAngle
type restriction of SFFloat
properties
default 0.26179167
facets
Kind Value Annotation
minInclusive 0
maxInclusive 1.5708
source <xs:attribute name="diskAngle" default="0.26179167">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

<xs:maxInclusive value="1.5708"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute CylinderSensor/@maxAngle
type restriction of SFFloat
properties
default -1
facets
Kind Value Annotation
minExclusive -6.2832
maxExclusive 6.2832
source <xs:attribute name="maxAngle" default="-1">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minExclusive value="-6.2832"/>

<xs:maxExclusive value="6.2832"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute CylinderSensor/@minAngle
type restriction of SFFloat
properties
default 0
facets
Kind Value Annotation
minExclusive -6.2832
maxExclusive 6.2832
source <xs:attribute name="minAngle" default="0">

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minExclusive value="-6.2832"/>

<xs:maxExclusive value="6.2832"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute CylinderSensor/@offset
type SFFloat
properties
default 0
source <xs:attribute name="offset" type="SFFloat" default="0"/>

attribute CylinderSensor/@containerField
type xs:NMTOKEN
properties
default children
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
