element CollidableShape

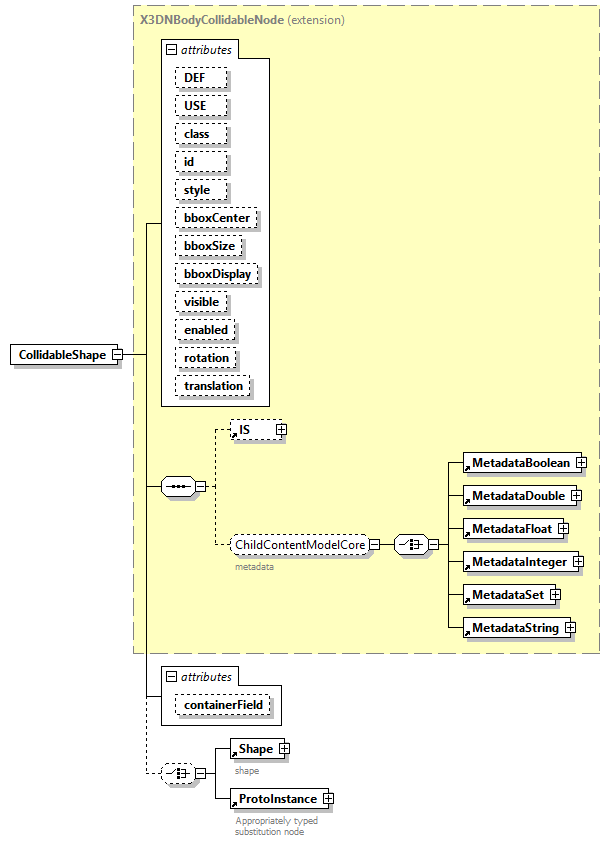

diagram x3d-4.0_diagrams/x3d-4.0_p33.png
type extension of X3DNBodyCollidableNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Shape ProtoInstance
used by
elements CollidableOffset CollisionCollection CollisionSpace Contact
groups ChildContentModelFull RigidBodyContentModel
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

bboxCenter  SFVec3f    0 0 0
bboxSize  bboxSizeType    -1 -1 -1
bboxDisplay  SFBool    false
visible  SFBool    true
enabled  SFBool    true
rotation  SFRotation    0 0 1 0
translation  SFVec3f    0 0 0
containerField  xs:NMTOKEN    children
annotation
appinfo
<xs:element name="shape" type="SFNode" fixed="initializeOnlyField" default="Shape"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="RigidBodyPhysics"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
                CollidableShape connects the collision detection system, the rigid body model, and the renderable scene graph.

source <xs:element name="CollidableShape">

<xs:annotation>

<xs:appinfo>

<xs:element name="shape" type="SFNode" fixed="initializeOnlyField" default="Shape"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="RigidBodyPhysics"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
                CollidableShape connects the collision detection system, the rigid body model, and the renderable scene graph.

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/rigidBodyPhysics.html#CollidableShape"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DNBodyCollidableNode">

<xs:choice minOccurs="0" maxOccurs="1">

<xs:element ref="Shape">

<xs:annotation>

<xs:documentation>shape</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element ref="ProtoInstance">

<xs:annotation>

<xs:documentation>Appropriately typed substitution node</xs:documentation>

</xs:annotation>

</xs:element>

</xs:choice>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute CollidableShape/@containerField
type xs:NMTOKEN
properties
default children
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
