group ChildContentModel

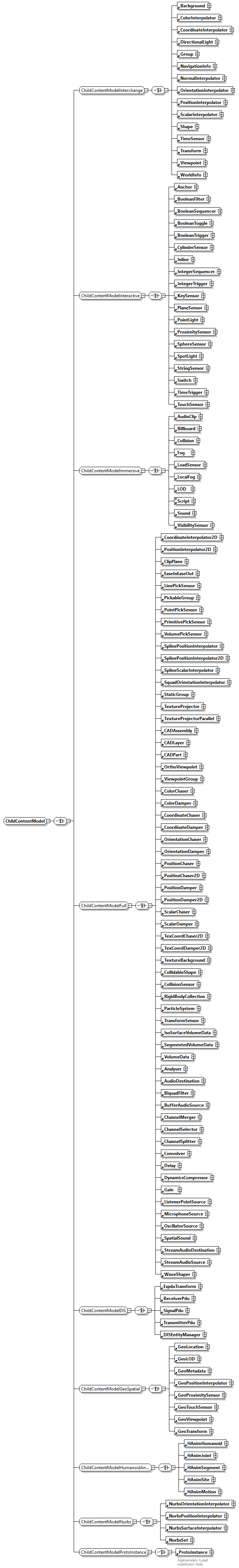

diagram x3d-4.0_p254.png
children Background ColorInterpolator CoordinateInterpolator DirectionalLight Group NavigationInfo NormalInterpolator OrientationInterpolator PositionInterpolator ScalarInterpolator Shape TimeSensor Transform Viewpoint WorldInfo Anchor BooleanFilter BooleanSequencer BooleanToggle BooleanTrigger CylinderSensor Inline IntegerSequencer IntegerTrigger KeySensor PlaneSensor PointLight ProximitySensor SphereSensor SpotLight StringSensor Switch TimeTrigger TouchSensor AudioClip Billboard Collision Fog LoadSensor LocalFog LOD Script Sound VisibilitySensor CoordinateInterpolator2D PositionInterpolator2D ClipPlane EaseInEaseOut LinePickSensor PickableGroup PointPickSensor PrimitivePickSensor VolumePickSensor SplinePositionInterpolator SplinePositionInterpolator2D SplineScalarInterpolator SquadOrientationInterpolator StaticGroup CADAssembly CADLayer CADPart OrthoViewpoint ViewpointGroup ColorChaser ColorDamper CoordinateChaser CoordinateDamper OrientationChaser OrientationDamper PositionChaser PositionChaser2D PositionDamper PositionDamper2D ScalarChaser ScalarDamper TexCoordChaser2D TexCoordDamper2D TextureBackground CollidableShape CollisionSensor RigidBodyCollection ParticleSystem TransformSensor IsoSurfaceVolumeData SegmentedVolumeData VolumeData EspduTransform ReceiverPdu SignalPdu TransmitterPdu DISEntityManager GeoLocation GeoLOD GeoMetadata GeoOrigin GeoPositionInterpolator GeoProximitySensor GeoTouchSensor GeoViewpoint GeoTransform HAnimHumanoid HAnimJoint HAnimSegment HAnimSite NurbsOrientationInterpolator NurbsPositionInterpolator NurbsSurfaceInterpolator NurbsSet ProtoInstance
used by
elements GeoLOD HAnimHumanoid Layer StaticGroup
complexType X3DGroupingNode
groups GroupingNodeChildContentModel LayoutGroupContentModel SceneGraphFragmentContentModel
annotation
appinfo
ChildContentModel is the child-node content model corresponding to X3DChildNode, combining all profiles.  ChildContentModel can contain most nodes, other Grouping nodes, Prototype declarations and ProtoInstances in any order and any combination. When the assigned profile is less than Full, the precise palette of legal nodes that are available depends on assigned profile and components.
documentation
children
source <xs:group name="ChildContentModel">

<xs:annotation>

<xs:appinfo>ChildContentModel is the child-node content model corresponding to X3DChildNode, combining all profiles.  ChildContentModel can contain most nodes, other Grouping nodes, Prototype declarations and ProtoInstances in any order and any combination. When the assigned profile is less than Full, the precise palette of legal nodes that are available depends on assigned profile and components.</xs:appinfo>

<xs:documentation source="http://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/group.html#GroupingAndChildrenNodes">children</xs:documentation>

</xs:annotation>

<xs:choice>

<!-- ChildContentModelCore omitted here since included in X3DNode type definition -->

<xs:group ref="ChildContentModelInterchange"/>

<xs:group ref="ChildContentModelInteractive"/>

<xs:group ref="ChildContentModelImmersive"/>

<xs:group ref="ChildContentModelFull"/>

<xs:group ref="ChildContentModelDIS"/>

<xs:group ref="ChildContentModelGeoSpatial"/>

<xs:group ref="ChildContentModelHumanoidAnimation"/>

<xs:group ref="ChildContentModelNurbs"/>

<xs:group ref="ChildContentModelProtoInstance"/>

</xs:choice>
</xs:group>
