element TwoSidedMaterial

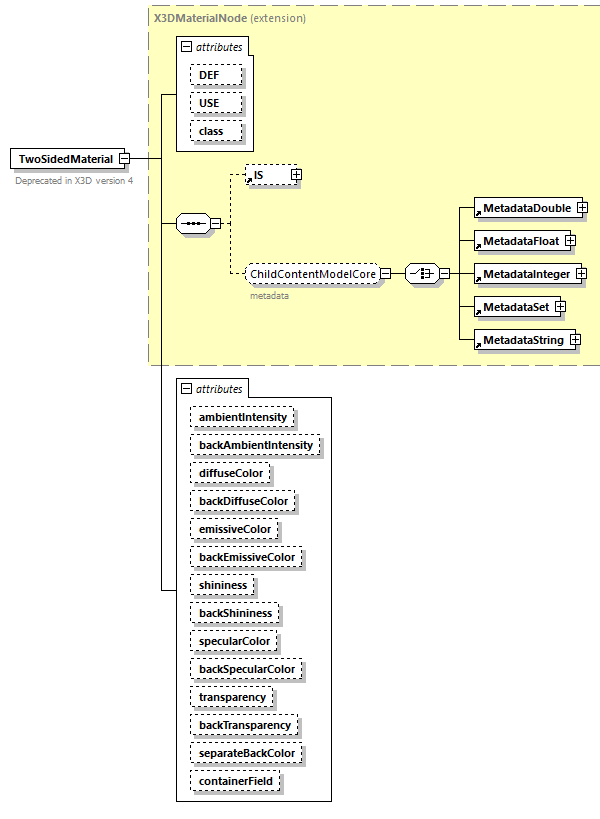

diagram x3d-3.2_p222.png
type extension of X3DMaterialNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
group AppearanceChildContentModelNoProtoInstance
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referencable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by XML stylesheets.
ambientIntensity  intensityType    0.2
backAmbientIntensity  intensityType    0.2
diffuseColor  SFColor    0.8 0.8 0.8
backDiffuseColor  SFColor    0.8 0.8 0.8
emissiveColor  SFColor    0 0 0
backEmissiveColor  SFColor    0 0 0
shininess  intensityType    0.2
backShininess  intensityType    0.2
specularColor  SFColor    0 0 0
backSpecularColor  SFColor    0 0 0
transparency  intensityType    0
backTransparency  intensityType    0
separateBackColor  SFBool    false
containerField  xs:NMTOKEN    material
annotation
appinfo
<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="Shape"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
source <xs:element name="TwoSidedMaterial">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="Shape"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>

</xs:appinfo>

<xs:documentation source="http://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/shape.html#Material"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DMaterialNode">

<xs:attribute name="ambientIntensity" type="intensityType" default="0.2"/>

<xs:attribute name="backAmbientIntensity" type="intensityType" default="0.2"/>

<xs:attribute name="diffuseColor" type="SFColor" default="0.8 0.8 0.8"/>

<xs:attribute name="backDiffuseColor" type="SFColor" default="0.8 0.8 0.8"/>

<xs:attribute name="emissiveColor" type="SFColor" default="0 0 0"/>

<xs:attribute name="backEmissiveColor" type="SFColor" default="0 0 0"/>

<xs:attribute name="shininess" type="intensityType" default="0.2"/>

<xs:attribute name="backShininess" type="intensityType" default="0.2"/>

<xs:attribute name="specularColor" type="SFColor" default="0 0 0"/>

<xs:attribute name="backSpecularColor" type="SFColor" default="0 0 0"/>

<xs:attribute name="transparency" type="intensityType" default="0"/>

<xs:attribute name="backTransparency" type="intensityType" default="0"/>

<xs:attribute name="separateBackColor" type="SFBool" default="false"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="material"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute TwoSidedMaterial/@ambientIntensity
type intensityType
properties
default 0.2
facets
Kind Value Annotation
minInclusive 0
maxInclusive 1
source <xs:attribute name="ambientIntensity" type="intensityType" default="0.2"/>

attribute TwoSidedMaterial/@backAmbientIntensity
type intensityType
properties
default 0.2
facets
Kind Value Annotation
minInclusive 0
maxInclusive 1
source <xs:attribute name="backAmbientIntensity" type="intensityType" default="0.2"/>

attribute TwoSidedMaterial/@diffuseColor
type SFColor
properties
default 0.8 0.8 0.8
facets
Kind Value Annotation
whiteSpace collapse
pattern ((((\.[0-9]+|0(\.[0-9]*)?)((E|e)(\+|\-)?[0-9]+)?)|(1(\.[0]*)?((E|e)\-[0-9]+)?)|([1-9](\.[0-9]*)((E|e)\-[0-9]+))) (((\.[0-9]+|0(\.[0-9]*)?)((E|e)(\+|\-)?[0-9]+)?)|(1(\.[0]*)?((E|e)\-[0-9]+)?)|([1-9](\.[0-9]*)((E|e)\-[0-9]+))) (((\.[0-9]+|0(\.[0-9]*)?)((E|e)(\+|\-)?[0-9]+)?)|(1(\.[0]*)?((E|e)\-[0-9]+)?)|([1-9](\.[0-9]*)((E|e)\-[0-9]+))))?
source <xs:attribute name="diffuseColor" type="SFColor" default="0.8 0.8 0.8"/>

attribute TwoSidedMaterial/@backDiffuseColor
type SFColor
properties
default 0.8 0.8 0.8
facets
Kind Value Annotation
whiteSpace collapse
pattern ((((\.[0-9]+|0(\.[0-9]*)?)((E|e)(\+|\-)?[0-9]+)?)|(1(\.[0]*)?((E|e)\-[0-9]+)?)|([1-9](\.[0-9]*)((E|e)\-[0-9]+))) (((\.[0-9]+|0(\.[0-9]*)?)((E|e)(\+|\-)?[0-9]+)?)|(1(\.[0]*)?((E|e)\-[0-9]+)?)|([1-9](\.[0-9]*)((E|e)\-[0-9]+))) (((\.[0-9]+|0(\.[0-9]*)?)((E|e)(\+|\-)?[0-9]+)?)|(1(\.[0]*)?((E|e)\-[0-9]+)?)|([1-9](\.[0-9]*)((E|e)\-[0-9]+))))?
source <xs:attribute name="backDiffuseColor" type="SFColor" default="0.8 0.8 0.8"/>

attribute TwoSidedMaterial/@emissiveColor
type SFColor
properties
default 0 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern ((((\.[0-9]+|0(\.[0-9]*)?)((E|e)(\+|\-)?[0-9]+)?)|(1(\.[0]*)?((E|e)\-[0-9]+)?)|([1-9](\.[0-9]*)((E|e)\-[0-9]+))) (((\.[0-9]+|0(\.[0-9]*)?)((E|e)(\+|\-)?[0-9]+)?)|(1(\.[0]*)?((E|e)\-[0-9]+)?)|([1-9](\.[0-9]*)((E|e)\-[0-9]+))) (((\.[0-9]+|0(\.[0-9]*)?)((E|e)(\+|\-)?[0-9]+)?)|(1(\.[0]*)?((E|e)\-[0-9]+)?)|([1-9](\.[0-9]*)((E|e)\-[0-9]+))))?
source <xs:attribute name="emissiveColor" type="SFColor" default="0 0 0"/>

attribute TwoSidedMaterial/@backEmissiveColor
type SFColor
properties
default 0 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern ((((\.[0-9]+|0(\.[0-9]*)?)((E|e)(\+|\-)?[0-9]+)?)|(1(\.[0]*)?((E|e)\-[0-9]+)?)|([1-9](\.[0-9]*)((E|e)\-[0-9]+))) (((\.[0-9]+|0(\.[0-9]*)?)((E|e)(\+|\-)?[0-9]+)?)|(1(\.[0]*)?((E|e)\-[0-9]+)?)|([1-9](\.[0-9]*)((E|e)\-[0-9]+))) (((\.[0-9]+|0(\.[0-9]*)?)((E|e)(\+|\-)?[0-9]+)?)|(1(\.[0]*)?((E|e)\-[0-9]+)?)|([1-9](\.[0-9]*)((E|e)\-[0-9]+))))?
source <xs:attribute name="backEmissiveColor" type="SFColor" default="0 0 0"/>

attribute TwoSidedMaterial/@shininess
type intensityType
properties
default 0.2
facets
Kind Value Annotation
minInclusive 0
maxInclusive 1
source <xs:attribute name="shininess" type="intensityType" default="0.2"/>

attribute TwoSidedMaterial/@backShininess
type intensityType
properties
default 0.2
facets
Kind Value Annotation
minInclusive 0
maxInclusive 1
source <xs:attribute name="backShininess" type="intensityType" default="0.2"/>

attribute TwoSidedMaterial/@specularColor
type SFColor
properties
default 0 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern ((((\.[0-9]+|0(\.[0-9]*)?)((E|e)(\+|\-)?[0-9]+)?)|(1(\.[0]*)?((E|e)\-[0-9]+)?)|([1-9](\.[0-9]*)((E|e)\-[0-9]+))) (((\.[0-9]+|0(\.[0-9]*)?)((E|e)(\+|\-)?[0-9]+)?)|(1(\.[0]*)?((E|e)\-[0-9]+)?)|([1-9](\.[0-9]*)((E|e)\-[0-9]+))) (((\.[0-9]+|0(\.[0-9]*)?)((E|e)(\+|\-)?[0-9]+)?)|(1(\.[0]*)?((E|e)\-[0-9]+)?)|([1-9](\.[0-9]*)((E|e)\-[0-9]+))))?
source <xs:attribute name="specularColor" type="SFColor" default="0 0 0"/>

attribute TwoSidedMaterial/@backSpecularColor
type SFColor
properties
default 0 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern ((((\.[0-9]+|0(\.[0-9]*)?)((E|e)(\+|\-)?[0-9]+)?)|(1(\.[0]*)?((E|e)\-[0-9]+)?)|([1-9](\.[0-9]*)((E|e)\-[0-9]+))) (((\.[0-9]+|0(\.[0-9]*)?)((E|e)(\+|\-)?[0-9]+)?)|(1(\.[0]*)?((E|e)\-[0-9]+)?)|([1-9](\.[0-9]*)((E|e)\-[0-9]+))) (((\.[0-9]+|0(\.[0-9]*)?)((E|e)(\+|\-)?[0-9]+)?)|(1(\.[0]*)?((E|e)\-[0-9]+)?)|([1-9](\.[0-9]*)((E|e)\-[0-9]+))))?
source <xs:attribute name="backSpecularColor" type="SFColor" default="0 0 0"/>

attribute TwoSidedMaterial/@transparency
type intensityType
properties
default 0
facets
Kind Value Annotation
minInclusive 0
maxInclusive 1
source <xs:attribute name="transparency" type="intensityType" default="0"/>

attribute TwoSidedMaterial/@backTransparency
type intensityType
properties
default 0
facets
Kind Value Annotation
minInclusive 0
maxInclusive 1
source <xs:attribute name="backTransparency" type="intensityType" default="0"/>

attribute TwoSidedMaterial/@separateBackColor
type SFBool
properties
default false
source <xs:attribute name="separateBackColor" type="SFBool" default="false"/>

attribute TwoSidedMaterial/@containerField
type xs:NMTOKEN
properties
default material
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="material"/>
