complexType X3DTimeDependentNode

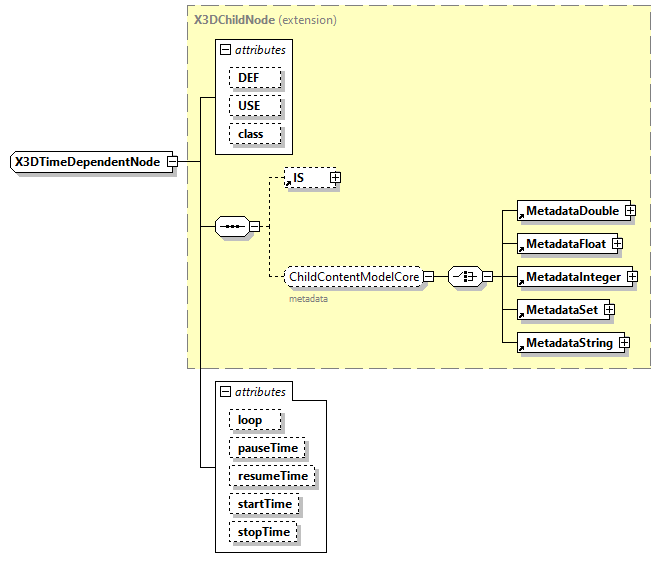

diagram x3d-3.1_diagrams/x3d-3.1_p254.png
type extension of X3DChildNode
properties
base X3DChildNode
abstract true
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
element TimeSensor
complexType X3DSoundSourceNode
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
loop  SFBool    false
pauseTime  SFTime    0
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
resumeTime  SFTime    0
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
startTime  SFTime    0
stopTime  SFTime    0
annotation
appinfo
<xs:attribute name="elapsedTime" fixed="outputOnlyField">
<!-- type="SFTimeNonNegative" -->
<xs:simpleType>
<xs:restriction base="SFTime">
<xs:minInclusive value="0"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="isActive" type="SFBool" fixed="outputOnlyField"/>
<xs:attribute name="isPaused" type="SFBool" fixed="outputOnlyField">
<xs:annotation>
<xs:appinfo>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
</xs:appinfo>
</xs:annotation>
</xs:attribute>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
Base type from which all time-dependent nodes are derived.
source <xs:complexType name="X3DTimeDependentNode" abstract="true">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="elapsedTime" fixed="outputOnlyField">

<!-- type="SFTimeNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="isActive" type="SFBool" fixed="outputOnlyField"/>

<xs:attribute name="isPaused" type="SFBool" fixed="outputOnlyField">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
Base type from which all time-dependent nodes are derived.
</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/time.html#X3DTimeDependentNode"/>

</xs:annotation>

<xs:complexContent>

<xs:extension base="X3DChildNode">

<xs:attribute name="loop" type="SFBool" default="false"/>

<xs:attribute name="pauseTime" type="SFTime" default="0">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="resumeTime" type="SFTime" default="0">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="startTime" type="SFTime" default="0"/>

<xs:attribute name="stopTime" type="SFTime" default="0"/>

</xs:extension>

</xs:complexContent>
</xs:complexType>

attribute X3DTimeDependentNode/@loop
type SFBool
properties
default false
source <xs:attribute name="loop" type="SFBool" default="false"/>

attribute X3DTimeDependentNode/@pauseTime
type SFTime
properties
default 0
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source <xs:attribute name="pauseTime" type="SFTime" default="0">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>
</xs:attribute>

attribute X3DTimeDependentNode/@resumeTime
type SFTime
properties
default 0
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source <xs:attribute name="resumeTime" type="SFTime" default="0">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>
</xs:attribute>

attribute X3DTimeDependentNode/@startTime
type SFTime
properties
default 0
source <xs:attribute name="startTime" type="SFTime" default="0"/>

attribute X3DTimeDependentNode/@stopTime
type SFTime
properties
default 0
source <xs:attribute name="stopTime" type="SFTime" default="0"/>
