complexType X3DTextureNode

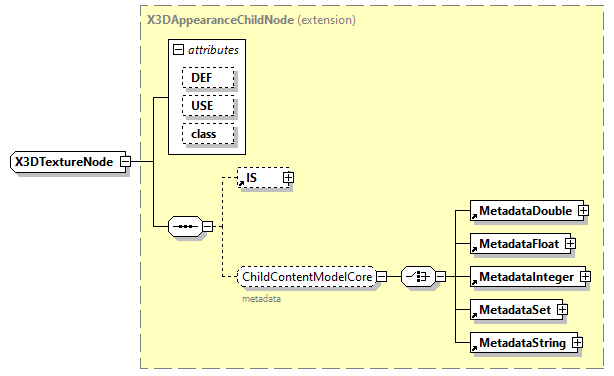

diagram x3d-3.1_diagrams/x3d-3.1_p252.png
type extension of X3DAppearanceChildNode
properties
base X3DAppearanceChildNode
abstract true
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
element MultiTexture
complexTypes X3DEnvironmentTextureNode X3DTexture2DNode X3DTexture3DNode
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
                Base type for all nodes which specify sources for texture images.
source <xs:complexType name="X3DTextureNode" abstract="true">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
                Base type for all nodes which specify sources for texture images.
</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/texturing.html#X3DTextureNode"/>

</xs:annotation>

<xs:complexContent>

<xs:extension base="X3DAppearanceChildNode"/>

</xs:complexContent>
</xs:complexType>
