complexType X3DTexture3DNode

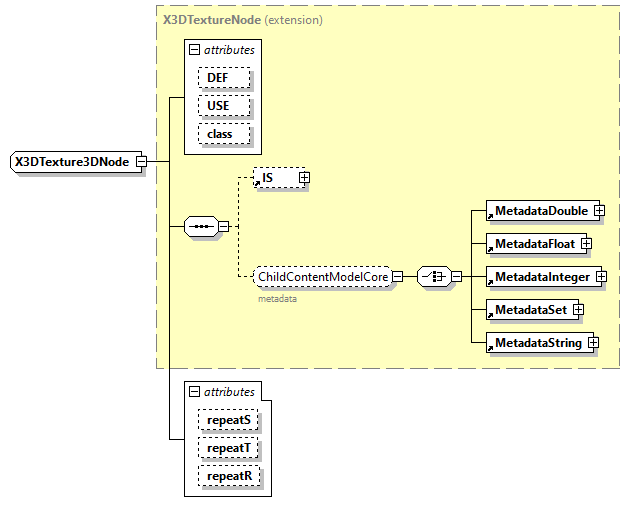

diagram x3d-3.1_p251.png
type extension of X3DTextureNode
properties
base X3DTextureNode
abstract true
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
elements ComposedTexture3D ImageTexture3D PixelTexture3D
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referencable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by XML stylesheets.
repeatS  SFBool    false
repeatT  SFBool    false
repeatR  SFBool    false
source <xs:complexType name="X3DTexture3DNode" abstract="true">

<xs:annotation>

<!-- TextureProperties in X3D v3.2 -->

<xs:documentation source="http://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/texture3D.html#X3DTexture3DNode"/>

</xs:annotation>

<xs:complexContent>

<xs:extension base="X3DTextureNode">

<xs:attribute name="repeatS" type="SFBool" default="false"/>

<xs:attribute name="repeatT" type="SFBool" default="false"/>

<xs:attribute name="repeatR" type="SFBool" default="false"/>

</xs:extension>

<!-- TextureProperties in X3D v3.2 -->

</xs:complexContent>
</xs:complexType>

attribute X3DTexture3DNode/@repeatS
type SFBool
properties
default false
source <xs:attribute name="repeatS" type="SFBool" default="false"/>

attribute X3DTexture3DNode/@repeatT
type SFBool
properties
default false
source <xs:attribute name="repeatT" type="SFBool" default="false"/>

attribute X3DTexture3DNode/@repeatR
type SFBool
properties
default false
source <xs:attribute name="repeatR" type="SFBool" default="false"/>
