complexType X3DNurbsControlCurveNode

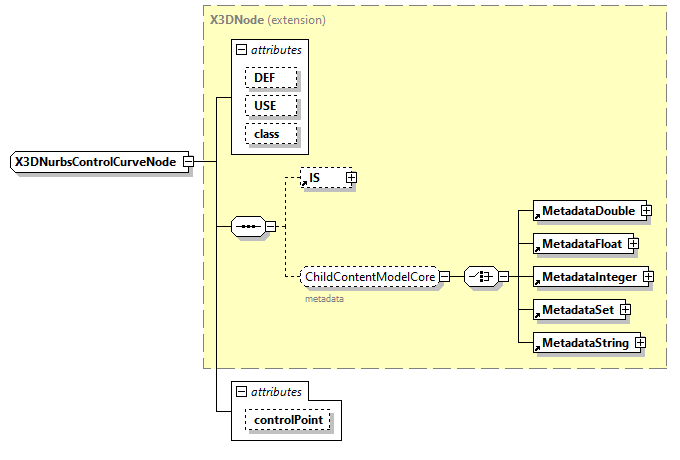

diagram x3d-3.1_p236.png
type extension of X3DNode
properties
base X3DNode
abstract true
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
elements ContourPolyline2D NurbsCurve2D
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referencable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by XML stylesheets.
controlPoint  MFVec2d
annotation
appinfo
<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="NURBS"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
Base type for all nodes that provide control curve information in 2D space.
source <xs:complexType name="X3DNurbsControlCurveNode" abstract="true">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="NURBS"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
Base type for all nodes that provide control curve information in 2D space.
</xs:appinfo>

<xs:documentation source="http://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/nurbs.html#X3DNurbsControlCurveNode"/>

</xs:annotation>

<xs:complexContent>

<xs:extension base="X3DNode">

<xs:attribute name="controlPoint" type="MFVec2d"/>

</xs:extension>

</xs:complexContent>
</xs:complexType>

attribute X3DNurbsControlCurveNode/@controlPoint
type MFVec2d
facets
Kind Value Annotation
whiteSpace collapse
pattern ((\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)? (\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)?( )?(,)?( )?)*
source <xs:attribute name="controlPoint" type="MFVec2d"/>
