complexType X3DNodeMixedContent

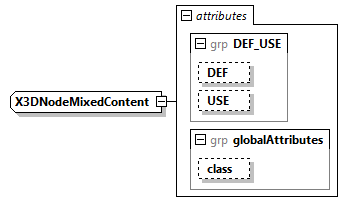

diagram x3d-3.1_diagrams/x3d-3.1_p233.png
properties
mixed true
abstract true
used by
elements ShaderPart ShaderProgram
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
annotation
appinfo
<xs:element name="IS" type="SFNode" fixed="inputOutputField" default="IS"/>
<xs:element name="metadata" type="SFNode" fixed="inputOutputField" default="X3DMetadataObject"/>
<xs:attribute name="additionalInterface" type="xs:string" default="X3DUrlObject"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Core"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
X3DNodeMixedContent is utilized by ShaderPart and ShaderProgram.
X3DNodeMixedContent matches X3DNode, with the exception that implementing nodes can have mixed content (meaning both elements and plain text),
and also allows schema definition of different default containerField values.
source <xs:complexType name="X3DNodeMixedContent" abstract="true" mixed="true">

<xs:annotation>

<xs:appinfo>

<xs:element name="IS" type="SFNode" fixed="inputOutputField" default="IS"/>

<xs:element name="metadata" type="SFNode" fixed="inputOutputField" default="X3DMetadataObject"/>

<xs:attribute name="additionalInterface" type="xs:string" default="X3DUrlObject"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Core"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
X3DNodeMixedContent is utilized by ShaderPart and ShaderProgram.
X3DNodeMixedContent matches X3DNode, with the exception that implementing nodes can have mixed content (meaning both elements and plain text),
and also allows schema definition of different default containerField values.
</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/core.html#X3DNode"/>

</xs:annotation>

<xs:attributeGroup ref="DEF_USE"/>

<xs:attributeGroup ref="globalAttributes"/>

<!-- complexContent extension not used since X3DNodeMixedContent is a top-level node type -->
</xs:complexType>
