element TextureTransform3D

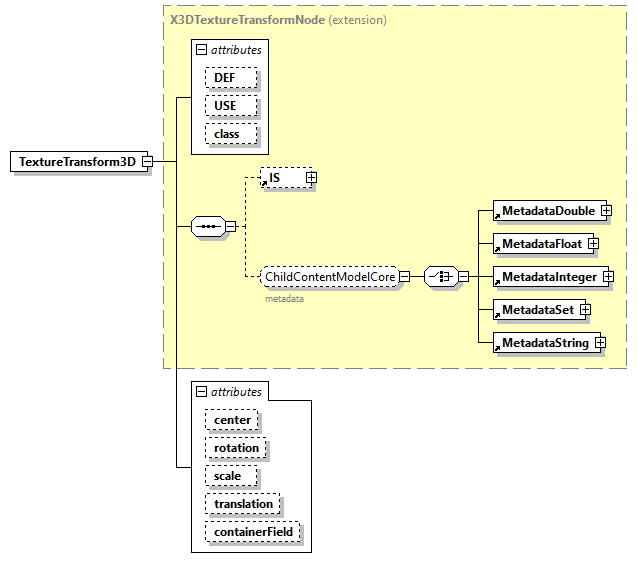

diagram x3d-3.1_diagrams/x3d-3.1_p156.png
type extension of X3DTextureTransformNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
center  SFVec3f    0 0 0
rotation  SFRotation    0 0 1 0
scale  SFVec3f    1 1 1
translation  SFVec3f    0 0 0
containerField  xs:NMTOKEN    textureTransform
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing3D"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="TextureTransform3D">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing3D"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/texture3D.html#TextureTransform3D"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DTextureTransformNode">

<xs:attribute name="center" type="SFVec3f" default="0 0 0"/>

<xs:attribute name="rotation" type="SFRotation" default="0 0 1 0"/>

<xs:attribute name="scale" type="SFVec3f" default="1 1 1"/>

<xs:attribute name="translation" type="SFVec3f" default="0 0 0"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="textureTransform"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute TextureTransform3D/@center
type SFVec3f
properties
default 0 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="center" type="SFVec3f" default="0 0 0"/>

attribute TextureTransform3D/@rotation
type SFRotation
properties
default 0 0 1 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){3}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="rotation" type="SFRotation" default="0 0 1 0"/>

attribute TextureTransform3D/@scale
type SFVec3f
properties
default 1 1 1
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="scale" type="SFVec3f" default="1 1 1"/>

attribute TextureTransform3D/@translation
type SFVec3f
properties
default 0 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="translation" type="SFVec3f" default="0 0 0"/>

attribute TextureTransform3D/@containerField
type xs:NMTOKEN
properties
default textureTransform
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="textureTransform"/>
