element TextureCoordinate4D

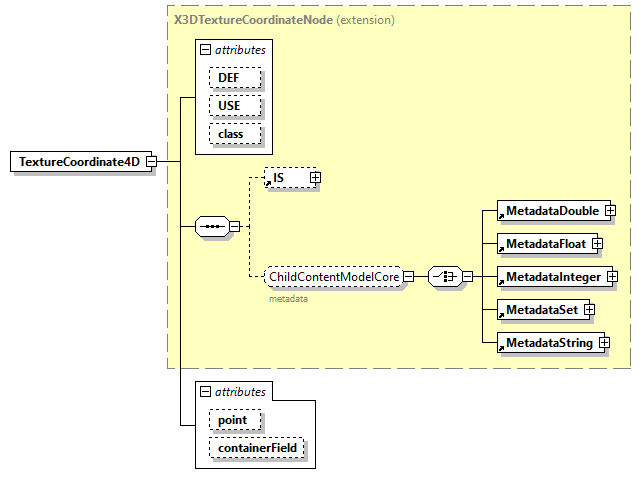

diagram x3d-3.1_p153.png
type extension of X3DTextureCoordinateNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
element ElevationGrid
group ComposedGeometryContentModel
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referencable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by XML stylesheets.
point  MFVec4f
containerField  xs:NMTOKEN    texCoord
annotation
appinfo
<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="Texturing3D"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="TextureCoordinate4D">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="Texturing3D"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="http://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/texture3D.html#TextureCoordinate4D"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DTextureCoordinateNode">

<xs:attribute name="point" type="MFVec4f"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="texCoord"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute TextureCoordinate4D/@point
type MFVec4f
facets
Kind Value Annotation
whiteSpace collapse
pattern ((\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)? (\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)? (\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)? (\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)?( )?(,)?( )?)*
source <xs:attribute name="point" type="MFVec4f"/>

attribute TextureCoordinate4D/@containerField
type xs:NMTOKEN
properties
default texCoord
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="texCoord"/>
