element ReceiverPdu

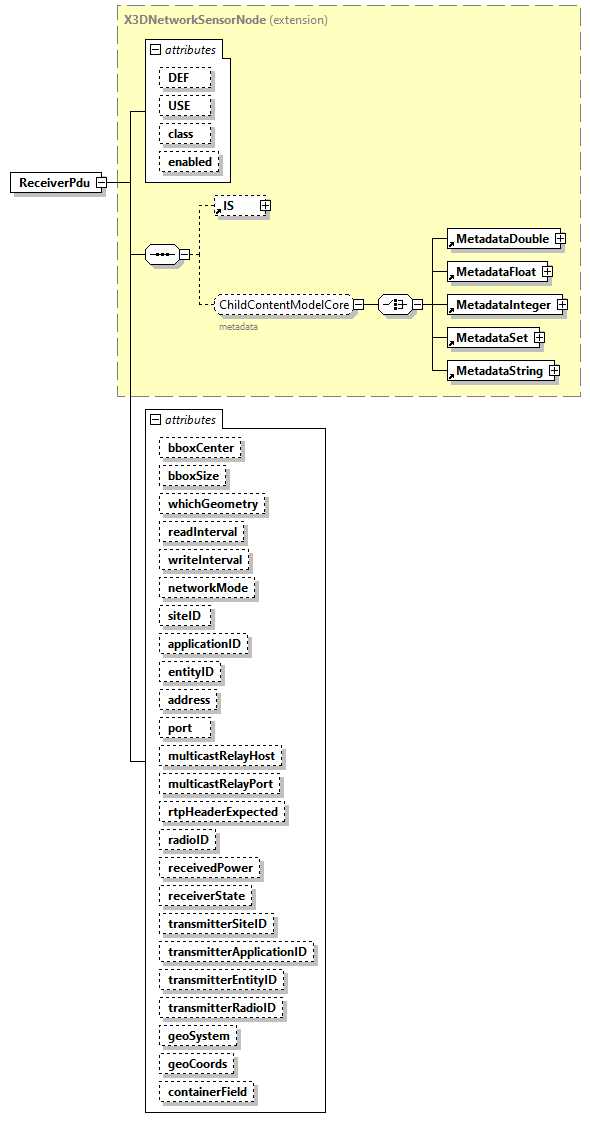

diagram x3d-3.1_p132.png
type extension of X3DNetworkSensorNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
group ChildContentModelDIS
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referencable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by XML stylesheets.
enabled  SFBool    true
bboxCenter  SFVec3f    0 0 0
bboxSize  boundingBoxSizeType    -1 -1 -1
whichGeometry  SFInt32    1
readInterval  SFTime    0.1
writeInterval  SFTime    1.0
networkMode  networkModeValues    standAlone
siteID  SFInt32    0
applicationID  SFInt32    0
entityID  SFInt32    0
address  SFString    localhost
port  SFInt32    0
multicastRelayHost  SFString
multicastRelayPort  SFInt32    0
rtpHeaderExpected  SFBool    false
radioID  SFInt32    0
receivedPower  SFFloat    0.0
receiverState  SFInt32    0
transmitterSiteID  SFInt32    0
transmitterApplicationID  SFInt32    0
transmitterEntityID  SFInt32    0
transmitterRadioID  SFInt32    0
geoSystem  geoSystemType    "GD" "WE"
geoCoords  SFVec3d    0 0 0
containerField  xs:NMTOKEN    children
annotation
appinfo
<xs:attribute name="isNetworkReader" type="SFBool" fixed="outputOnlyField"/>
<xs:attribute name="isNetworkWriter" type="SFBool" fixed="outputOnlyField"/>
<xs:attribute name="isRtpHeaderHeard" type="SFBool" fixed="outputOnlyField"/>
<xs:attribute name="isStandAlone" type="SFBool" fixed="outputOnlyField"/>
<xs:attribute name="timestamp" type="SFTime" fixed="outputOnlyField"/>
<xs:attribute name="additionalInterface" type="xs:string" default="X3DBoundedObject"/>
<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="DIS"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="ReceiverPdu">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="isNetworkReader" type="SFBool" fixed="outputOnlyField"/>

<xs:attribute name="isNetworkWriter" type="SFBool" fixed="outputOnlyField"/>

<xs:attribute name="isRtpHeaderHeard" type="SFBool" fixed="outputOnlyField"/>

<xs:attribute name="isStandAlone" type="SFBool" fixed="outputOnlyField"/>

<xs:attribute name="timestamp" type="SFTime" fixed="outputOnlyField"/>

<xs:attribute name="additionalInterface" type="xs:string" default="X3DBoundedObject"/>

<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="DIS"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="http://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/dis.html#ReceiverPdu"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DNetworkSensorNode">

<xs:attribute name="bboxCenter" type="SFVec3f" default="0 0 0"/>

<xs:attribute name="bboxSize" type="boundingBoxSizeType" default="-1 -1 -1"/>

<xs:attribute name="whichGeometry" type="SFInt32" default="1"/>

<xs:attribute name="readInterval" type="SFTime" default="0.1"/>

<xs:attribute name="writeInterval" type="SFTime" default="1.0"/>

<xs:attribute name="networkMode" type="networkModeValues" default="standAlone"/>

<xs:attribute name="siteID" type="SFInt32" default="0"/>

<xs:attribute name="applicationID" type="SFInt32" default="0"/>

<xs:attribute name="entityID" type="SFInt32" default="0"/>

<xs:attribute name="address" type="SFString" default="localhost"/>

<xs:attribute name="port" type="SFInt32" default="0"/>

<xs:attribute name="multicastRelayHost" type="SFString"/>

<xs:attribute name="multicastRelayPort" type="SFInt32" default="0"/>

<xs:attribute name="rtpHeaderExpected" type="SFBool" default="false"/>

<xs:attribute name="radioID" type="SFInt32" default="0"/>

<xs:attribute name="receivedPower" type="SFFloat" default="0.0"/>

<xs:attribute name="receiverState" type="SFInt32" default="0"/>

<xs:attribute name="transmitterSiteID" type="SFInt32" default="0"/>

<xs:attribute name="transmitterApplicationID" type="SFInt32" default="0"/>

<xs:attribute name="transmitterEntityID" type="SFInt32" default="0"/>

<xs:attribute name="transmitterRadioID" type="SFInt32" default="0"/>

<xs:attribute name="geoSystem" type="geoSystemType" default='"GD" "WE"'/>

<xs:attribute name="geoCoords" type="SFVec3d" default="0 0 0"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute ReceiverPdu/@bboxCenter
type SFVec3f
properties
default 0 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern ((\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)? (\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)? (\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)?)?
source <xs:attribute name="bboxCenter" type="SFVec3f" default="0 0 0"/>

attribute ReceiverPdu/@bboxSize
type boundingBoxSizeType
properties
default -1 -1 -1
facets
Kind Value Annotation
whiteSpace collapse
pattern (((\+)?([1-9][0-9]*(\.[0-9]*)?|(0?\.[0-9]*[1-9][0-9]*))((E|e)(\+|\-)?[0-9]+)? (\+)?([1-9][0-9]*(\.[0-9]*)?|(0?\.[0-9]*[1-9][0-9]*))((E|e)(\+|\-)?[0-9]+)? (\+)?([1-9][0-9]*(\.[0-9]*)?|(0?\.[0-9]*[1-9][0-9]*))((E|e)(\+|\-)?[0-9]+)?)|(\-1(\.(0)*)? \-1(\.(0)*)? \-1(\.(0)*)?))?
source <xs:attribute name="bboxSize" type="boundingBoxSizeType" default="-1 -1 -1"/>

attribute ReceiverPdu/@whichGeometry
type SFInt32
properties
default 1
source <xs:attribute name="whichGeometry" type="SFInt32" default="1"/>

attribute ReceiverPdu/@readInterval
type SFTime
properties
default 0.1
source <xs:attribute name="readInterval" type="SFTime" default="0.1"/>

attribute ReceiverPdu/@writeInterval
type SFTime
properties
default 1.0
source <xs:attribute name="writeInterval" type="SFTime" default="1.0"/>

attribute ReceiverPdu/@networkMode
type networkModeValues
properties
default standAlone
facets
Kind Value Annotation
enumeration standAlone
enumeration networkReader
enumeration networkWriter
source <xs:attribute name="networkMode" type="networkModeValues" default="standAlone"/>

attribute ReceiverPdu/@siteID
type SFInt32
properties
default 0
source <xs:attribute name="siteID" type="SFInt32" default="0"/>

attribute ReceiverPdu/@applicationID
type SFInt32
properties
default 0
source <xs:attribute name="applicationID" type="SFInt32" default="0"/>

attribute ReceiverPdu/@entityID
type SFInt32
properties
default 0
source <xs:attribute name="entityID" type="SFInt32" default="0"/>

attribute ReceiverPdu/@address
type SFString
properties
default localhost
source <xs:attribute name="address" type="SFString" default="localhost"/>

attribute ReceiverPdu/@port
type SFInt32
properties
default 0
source <xs:attribute name="port" type="SFInt32" default="0"/>

attribute ReceiverPdu/@multicastRelayHost
type SFString
source <xs:attribute name="multicastRelayHost" type="SFString"/>

attribute ReceiverPdu/@multicastRelayPort
type SFInt32
properties
default 0
source <xs:attribute name="multicastRelayPort" type="SFInt32" default="0"/>

attribute ReceiverPdu/@rtpHeaderExpected
type SFBool
properties
default false
source <xs:attribute name="rtpHeaderExpected" type="SFBool" default="false"/>

attribute ReceiverPdu/@radioID
type SFInt32
properties
default 0
source <xs:attribute name="radioID" type="SFInt32" default="0"/>

attribute ReceiverPdu/@receivedPower
type SFFloat
properties
default 0.0
source <xs:attribute name="receivedPower" type="SFFloat" default="0.0"/>

attribute ReceiverPdu/@receiverState
type SFInt32
properties
default 0
source <xs:attribute name="receiverState" type="SFInt32" default="0"/>

attribute ReceiverPdu/@transmitterSiteID
type SFInt32
properties
default 0
source <xs:attribute name="transmitterSiteID" type="SFInt32" default="0"/>

attribute ReceiverPdu/@transmitterApplicationID
type SFInt32
properties
default 0
source <xs:attribute name="transmitterApplicationID" type="SFInt32" default="0"/>

attribute ReceiverPdu/@transmitterEntityID
type SFInt32
properties
default 0
source <xs:attribute name="transmitterEntityID" type="SFInt32" default="0"/>

attribute ReceiverPdu/@transmitterRadioID
type SFInt32
properties
default 0
source <xs:attribute name="transmitterRadioID" type="SFInt32" default="0"/>

attribute ReceiverPdu/@geoSystem
type geoSystemType
properties
default "GD" "WE"
source <xs:attribute name="geoSystem" type="geoSystemType" default='"GD" "WE"'/>

attribute ReceiverPdu/@geoCoords
type SFVec3d
properties
default 0 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern ((\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)? (\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)? (\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)?)?
source <xs:attribute name="geoCoords" type="SFVec3d" default="0 0 0"/>

attribute ReceiverPdu/@containerField
type xs:NMTOKEN
properties
default children
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
