element NurbsCurve2D

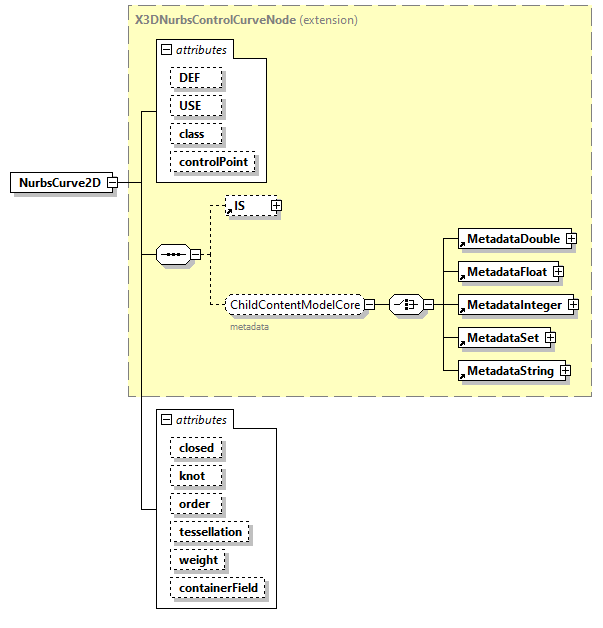

diagram x3d-3.1_p104.png
type extension of X3DNurbsControlCurveNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
elements Contour2D NurbsSweptSurface NurbsSwungSurface
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referencable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by XML stylesheets.
controlPoint  MFVec2d
closed  SFBool    false
knot  MFDouble
order  derived by: SFInt32    3
tessellation  SFInt32    0
weight  MFDouble
appinfo
<xs:minExclusive value="0"/>
containerField  xs:NMTOKEN    children
annotation
appinfo
<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="NURBS"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>
source <xs:element name="NurbsCurve2D">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="NURBS"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>

</xs:appinfo>

<xs:documentation source="http://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/nurbs.html#NurbsCurve2D"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DNurbsControlCurveNode">

<xs:attribute name="closed" type="SFBool" default="false"/>

<xs:attribute name="knot" type="MFDouble"/>

<xs:attribute name="order" default="3">

<xs:simpleType>

<xs:restriction base="SFInt32">

<xs:minInclusive value="2"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="tessellation" type="SFInt32" default="0"/>

<xs:attribute name="weight" type="MFDouble">

<xs:annotation>

<xs:appinfo>

<xs:minExclusive value="0"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute NurbsCurve2D/@closed
type SFBool
properties
default false
source <xs:attribute name="closed" type="SFBool" default="false"/>

attribute NurbsCurve2D/@knot
type MFDouble
facets
Kind Value Annotation
whiteSpace collapse
pattern (((\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)?)?( )?(,)?( )?)*
source <xs:attribute name="knot" type="MFDouble"/>

attribute NurbsCurve2D/@order
type restriction of SFInt32
properties
default 3
facets
Kind Value Annotation
minInclusive 2
source <xs:attribute name="order" default="3">

<xs:simpleType>

<xs:restriction base="SFInt32">

<xs:minInclusive value="2"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute NurbsCurve2D/@tessellation
type SFInt32
properties
default 0
source <xs:attribute name="tessellation" type="SFInt32" default="0"/>

attribute NurbsCurve2D/@weight
type MFDouble
facets
Kind Value Annotation
whiteSpace collapse
pattern (((\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)?)?( )?(,)?( )?)*
annotation
appinfo
<xs:minExclusive value="0"/>
source <xs:attribute name="weight" type="MFDouble">

<xs:annotation>

<xs:appinfo>

<xs:minExclusive value="0"/>

</xs:appinfo>

</xs:annotation>
</xs:attribute>

attribute NurbsCurve2D/@containerField
type xs:NMTOKEN
properties
default children
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
