element Fog

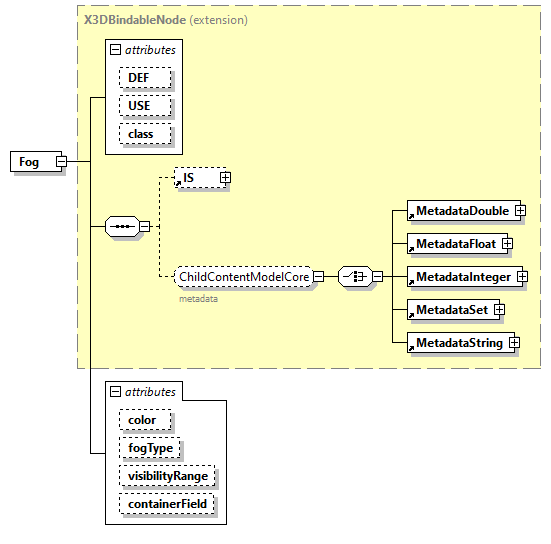

diagram x3d-3.1_p47.png
type extension of X3DBindableNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
group ChildContentModelImmersive
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referencable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by XML stylesheets.
color  SFColor    1 1 1
fogType  fogTypeValues    LINEAR
visibilityRange  derived by: SFFloat    0
containerField  xs:NMTOKEN    children
annotation
appinfo
<xs:attribute name="additionalInterface" type="xs:string" default="X3DFogObject"/>
<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="EnvironmentalEffects"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source <xs:element name="Fog">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="additionalInterface" type="xs:string" default="X3DFogObject"/>

<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="EnvironmentalEffects"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

<xs:documentation source="http://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/enveffects.html#Fog"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DBindableNode">

<xs:attribute name="color" type="SFColor" default="1 1 1"/>

<xs:attribute name="fogType" type="fogTypeValues" default="LINEAR"/>

<xs:attribute name="visibilityRange" default="0">

<!-- type="SFFloatNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute Fog/@color
type SFColor
properties
default 1 1 1
facets
Kind Value Annotation
whiteSpace collapse
pattern ((((\.[0-9]+|0(\.[0-9]*)?)((E|e)(\+|\-)?[0-9]+)?)|(1(\.[0]*)?((E|e)\-[0-9]+)?)|([1-9](\.[0-9]*)((E|e)\-[0-9]+))) (((\.[0-9]+|0(\.[0-9]*)?)((E|e)(\+|\-)?[0-9]+)?)|(1(\.[0]*)?((E|e)\-[0-9]+)?)|([1-9](\.[0-9]*)((E|e)\-[0-9]+))) (((\.[0-9]+|0(\.[0-9]*)?)((E|e)(\+|\-)?[0-9]+)?)|(1(\.[0]*)?((E|e)\-[0-9]+)?)|([1-9](\.[0-9]*)((E|e)\-[0-9]+))))?
source <xs:attribute name="color" type="SFColor" default="1 1 1"/>

attribute Fog/@fogType
type fogTypeValues
properties
default LINEAR
facets
Kind Value Annotation
enumeration LINEAR
enumeration EXPONENTIAL
source <xs:attribute name="fogType" type="fogTypeValues" default="LINEAR"/>

attribute Fog/@visibilityRange
type restriction of SFFloat
properties
default 0
facets
Kind Value Annotation
minInclusive 0
source <xs:attribute name="visibilityRange" default="0">

<!-- type="SFFloatNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute Fog/@containerField
type xs:NMTOKEN
properties
default children
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
