element Cone

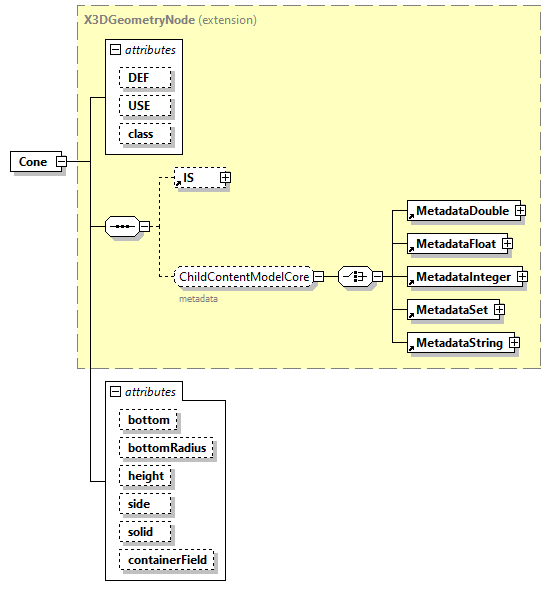

diagram x3d-3.1_p26.png
type extension of X3DGeometryNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
group GeometryContentModelInterchange
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referencable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by XML stylesheets.
bottomRadius  derived by: SFFloat    1
height  derived by: SFFloat    2
side  SFBool    true
bottom  SFBool    true
solid  SFBool    true
containerField  xs:NMTOKEN    geometry
annotation
appinfo
<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="Geometry3D"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="Cone">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="Geometry3D"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="http://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/geometry3D.html#Cone"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DGeometryNode">

<xs:attribute name="bottomRadius" default="1">

<!-- type="SFFloatPositive" -->

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minExclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="height" default="2">

<!-- type="SFFloatPositive" -->

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minExclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="side" type="SFBool" default="true"/>

<xs:attribute name="bottom" type="SFBool" default="true"/>

<xs:attribute name="solid" type="SFBool" default="true"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute Cone/@bottomRadius
type restriction of SFFloat
properties
default 1
facets
Kind Value Annotation
minExclusive 0
source <xs:attribute name="bottomRadius" default="1">

<!-- type="SFFloatPositive" -->

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minExclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute Cone/@height
type restriction of SFFloat
properties
default 2
facets
Kind Value Annotation
minExclusive 0
source <xs:attribute name="height" default="2">

<!-- type="SFFloatPositive" -->

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minExclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute Cone/@side
type SFBool
properties
default true
source <xs:attribute name="side" type="SFBool" default="true"/>

attribute Cone/@bottom
type SFBool
properties
default true
source <xs:attribute name="bottom" type="SFBool" default="true"/>

attribute Cone/@solid
type SFBool
properties
default true
source <xs:attribute name="solid" type="SFBool" default="true"/>

attribute Cone/@containerField
type xs:NMTOKEN
properties
default geometry
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>
