group ChildContentModel

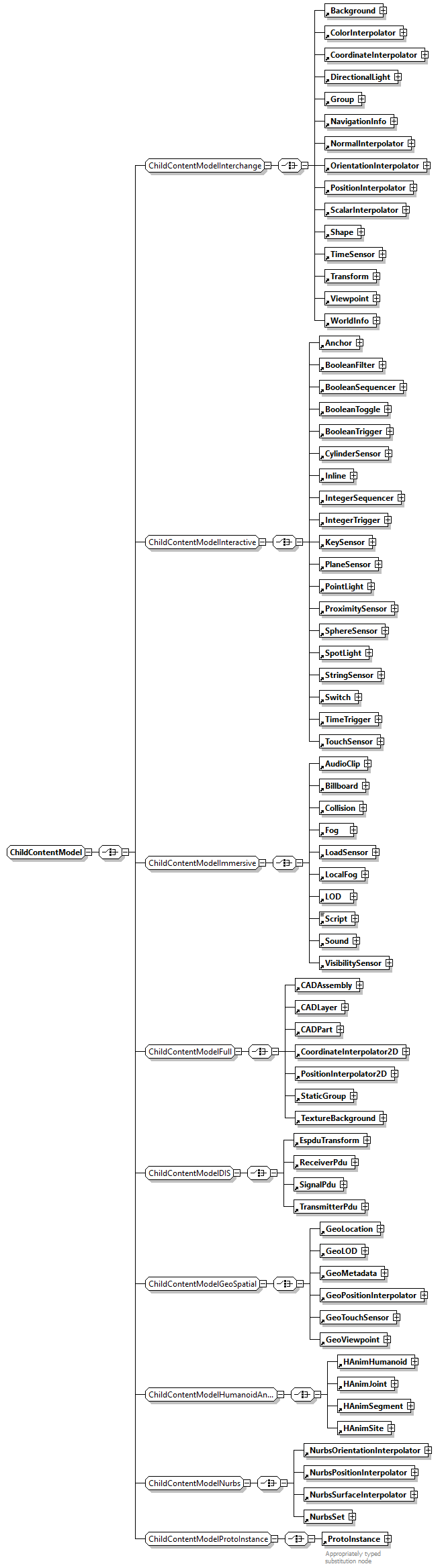

diagram x3d-3.1_p173.png
children Background ColorInterpolator CoordinateInterpolator DirectionalLight Group NavigationInfo NormalInterpolator OrientationInterpolator PositionInterpolator ScalarInterpolator Shape TimeSensor Transform Viewpoint WorldInfo Anchor BooleanFilter BooleanSequencer BooleanToggle BooleanTrigger CylinderSensor Inline IntegerSequencer IntegerTrigger KeySensor PlaneSensor PointLight ProximitySensor SphereSensor SpotLight StringSensor Switch TimeTrigger TouchSensor AudioClip Billboard Collision Fog LoadSensor LocalFog LOD Script Sound VisibilitySensor CADAssembly CADLayer CADPart CoordinateInterpolator2D PositionInterpolator2D StaticGroup TextureBackground EspduTransform ReceiverPdu SignalPdu TransmitterPdu GeoLocation GeoLOD GeoMetadata GeoOrigin GeoPositionInterpolator GeoTouchSensor GeoViewpoint HAnimHumanoid HAnimJoint HAnimSegment HAnimSite NurbsOrientationInterpolator NurbsPositionInterpolator NurbsSurfaceInterpolator NurbsSet ProtoInstance
used by
elements GeoLOD HAnimHumanoid StaticGroup
complexType X3DGroupingNode
groups GroupingNodeChildContentModel SceneGraphFragmentContentModel
annotation
appinfo
ChildContentModel is the child-node content model corresponding to X3DChildNode, combining all profiles.  ChildContentModel can contain most nodes, other Grouping nodes, Prototype declarations and ProtoInstances in any order and any combination. When the assigned profile is less than Full, the precise palette of legal nodes that are available depends on assigned profile and components.
documentation
children
source <xs:group name="ChildContentModel">

<xs:annotation>

<xs:appinfo>ChildContentModel is the child-node content model corresponding to X3DChildNode, combining all profiles.  ChildContentModel can contain most nodes, other Grouping nodes, Prototype declarations and ProtoInstances in any order and any combination. When the assigned profile is less than Full, the precise palette of legal nodes that are available depends on assigned profile and components.</xs:appinfo>

<xs:documentation source="http://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/group.html#GroupingAndChildrenNodes">children</xs:documentation>

</xs:annotation>

<xs:choice>

<!-- ChildContentModelCore omitted here since included in X3DNode type definition -->

<xs:group ref="ChildContentModelInterchange"/>

<xs:group ref="ChildContentModelInteractive"/>

<xs:group ref="ChildContentModelImmersive"/>

<xs:group ref="ChildContentModelFull"/>

<xs:group ref="ChildContentModelDIS"/>

<xs:group ref="ChildContentModelGeoSpatial"/>

<xs:group ref="ChildContentModelHumanoidAnimation"/>

<xs:group ref="ChildContentModelNurbs"/>

<xs:group ref="ChildContentModelProtoInstance"/>

</xs:choice>
</xs:group>
