element fieldValue

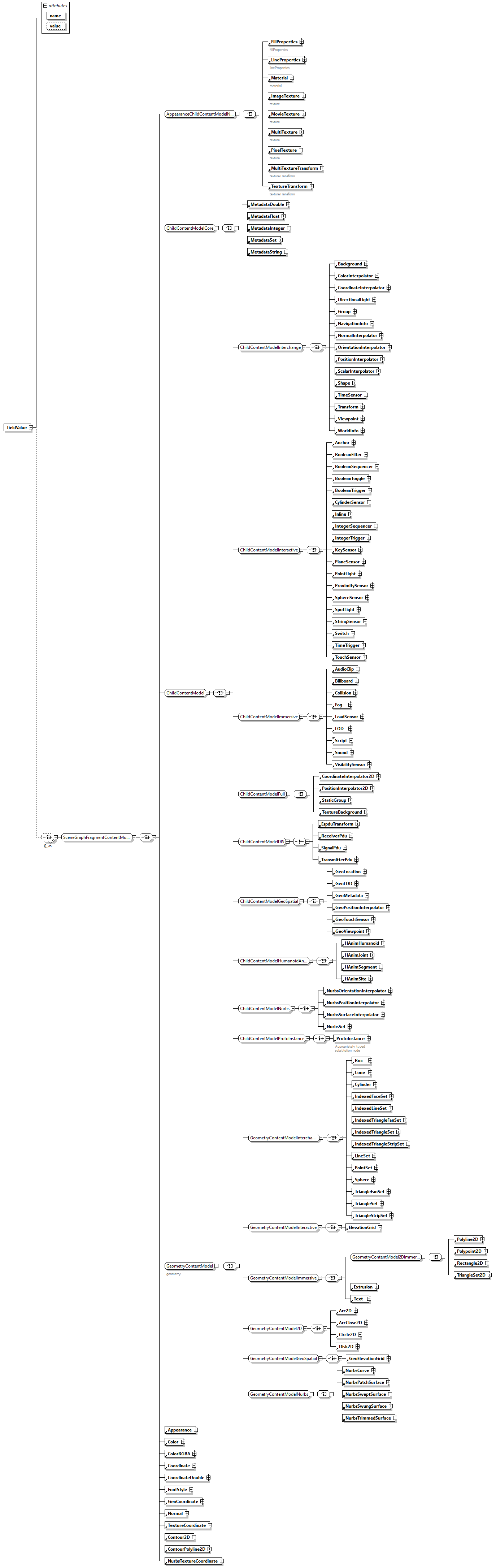

diagram x3d-3.0_p37.png
type extension of SceneGraphStructureStatement
properties
content complex
children FillProperties LineProperties Material ImageTexture MovieTexture MultiTexture PixelTexture MultiTextureTransform TextureTransform MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Background ColorInterpolator CoordinateInterpolator DirectionalLight Group NavigationInfo NormalInterpolator OrientationInterpolator PositionInterpolator ScalarInterpolator Shape TimeSensor Transform Viewpoint WorldInfo Anchor BooleanFilter BooleanSequencer BooleanToggle BooleanTrigger CylinderSensor Inline IntegerSequencer IntegerTrigger KeySensor PlaneSensor PointLight ProximitySensor SphereSensor SpotLight StringSensor Switch TimeTrigger TouchSensor AudioClip Billboard Collision Fog LoadSensor LOD Script Sound VisibilitySensor CoordinateInterpolator2D PositionInterpolator2D StaticGroup TextureBackground EspduTransform ReceiverPdu SignalPdu TransmitterPdu GeoLocation GeoLOD GeoMetadata GeoOrigin GeoPositionInterpolator GeoTouchSensor GeoViewpoint HAnimHumanoid HAnimJoint HAnimSegment HAnimSite NurbsOrientationInterpolator NurbsPositionInterpolator NurbsSurfaceInterpolator NurbsSet ProtoInstance Box Cone Cylinder IndexedFaceSet IndexedLineSet IndexedTriangleFanSet IndexedTriangleSet IndexedTriangleStripSet LineSet PointSet Sphere TriangleFanSet TriangleSet TriangleStripSet ElevationGrid Polyline2D Polypoint2D Rectangle2D TriangleSet2D Extrusion Text Arc2D ArcClose2D Circle2D Disk2D GeoElevationGrid NurbsCurve NurbsPatchSurface NurbsSweptSurface NurbsSwungSurface NurbsTrimmedSurface Appearance Color ColorRGBA Coordinate CoordinateDouble FontStyle GeoCoordinate Normal TextureCoordinate Contour2D ContourPolyline2D NurbsTextureCoordinate
used by
complexType X3DPrototypeInstance
attributes
Name  Type  Use  Default  Fixed  Annotation
name  xs:NMTOKEN  required
value  SFString
annotation
appinfo
<xs:element name="children" type="MFNode" default="X3DNode"/>
<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="Core"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
Functional summary: a fieldValue statement re-initializes the default value of a field in a ProtoInstance.
Each fieldValue statement can contain either attribute-value or node content.
source <xs:element name="fieldValue">

<xs:annotation>

<xs:appinfo>

<xs:element name="children" type="MFNode" default="X3DNode"/>

<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="Core"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
Functional summary: a fieldValue statement re-initializes the default value of a field in a ProtoInstance.
Each fieldValue statement can contain either attribute-value or node content.
</xs:appinfo>

<xs:documentation source="http://www.web3d.org/documents/specifications/19776-1/V3.3/Part01/concepts.html#ProtoInstanceAndFieldValueStatement"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="SceneGraphStructureStatement">

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:group ref="SceneGraphFragmentContentModel"/>

</xs:choice>

<xs:attribute name="name" type="xs:NMTOKEN" use="required"/>

<xs:attribute name="value" type="SFString"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute fieldValue/@name
type xs:NMTOKEN
properties
use required
source <xs:attribute name="name" type="xs:NMTOKEN" use="required"/>

attribute fieldValue/@value
type SFString
source <xs:attribute name="value" type="SFString"/>
