complexType X3DTexture2DNode

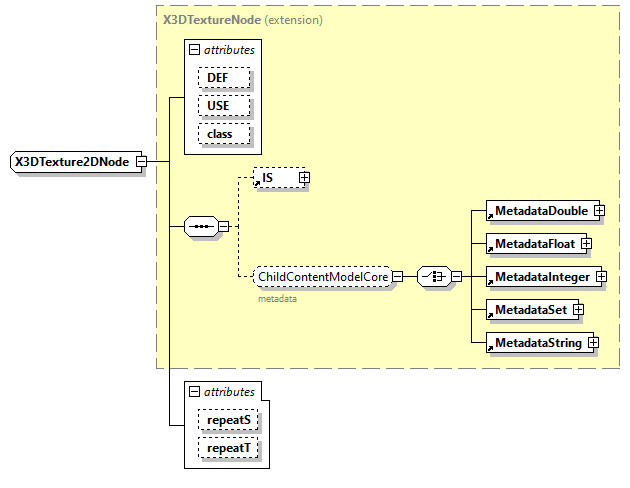

diagram x3d-3.0_diagrams/x3d-3.0_p215.png
type extension of X3DTextureNode
properties
base X3DTextureNode
abstract true
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
elements ImageTexture PixelTexture
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
repeatS  SFBool    true
repeatT  SFBool    true
annotation
appinfo
<!-- textureProperties in X3D version 3.2 -->
<xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
                Base type for all nodes which specify 2D sources for texture images.
source <xs:complexType name="X3DTexture2DNode" abstract="true">

<xs:annotation>

<xs:appinfo>

<!-- textureProperties in X3D version 3.2 -->

<xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
                Base type for all nodes which specify 2D sources for texture images.
</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/texturing.html#X3DTexture2DNode"/>

</xs:annotation>

<xs:complexContent>

<xs:extension base="X3DTextureNode">

<xs:attribute name="repeatS" type="SFBool" default="true"/>

<xs:attribute name="repeatT" type="SFBool" default="true"/>

</xs:extension>

<!-- TextureProperties in X3D version 3.2 -->

</xs:complexContent>
</xs:complexType>

attribute X3DTexture2DNode/@repeatS
type SFBool
properties
default true
source <xs:attribute name="repeatS" type="SFBool" default="true"/>

attribute X3DTexture2DNode/@repeatT
type SFBool
properties
default true
source <xs:attribute name="repeatT" type="SFBool" default="true"/>
