complexType X3DPrototypeInstance

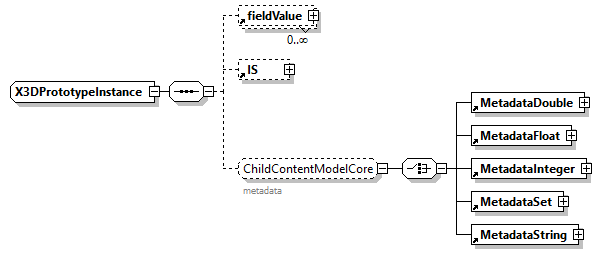

diagram x3d-3.0_diagrams/x3d-3.0_p208.png
properties
abstract true
children fieldValue IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
element ProtoInstance
annotation
appinfo
<xs:element name="IS" type="SFNode" fixed="inputOutputField" default="IS"/>
<xs:element name="metadata" type="SFNode" fixed="inputOutputField" default="X3DMetadataObject"/>
<xs:attribute name="additionalInterface" type="xs:string" default="X3DNode"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Core"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
Base type for all prototype instances.
Note that direct children nodes are disallowed, instead let fieldValue with type SFNode/MFNode contain them.
Current practice is that, if desired, prototype authors must explicitly add the metadata SFNode field in the ProtoInterface.
source <xs:complexType name="X3DPrototypeInstance" abstract="true">

<xs:annotation>

<xs:appinfo>

<xs:element name="IS" type="SFNode" fixed="inputOutputField" default="IS"/>

<xs:element name="metadata" type="SFNode" fixed="inputOutputField" default="X3DMetadataObject"/>

<xs:attribute name="additionalInterface" type="xs:string" default="X3DNode"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Core"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
Base type for all prototype instances.
Note that direct children nodes are disallowed, instead let fieldValue with type SFNode/MFNode contain them.
Current practice is that, if desired, prototype authors must explicitly add the metadata SFNode field in the ProtoInterface.
</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/core.html#X3DPrototypeInstance"/>

</xs:annotation>

<xs:sequence>

<xs:element ref="fieldValue" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="IS" minOccurs="0"/>

<xs:group ref="ChildContentModelCore" minOccurs="0">

<xs:annotation>

<xs:documentation>metadata</xs:documentation>

</xs:annotation>

</xs:group>

</xs:sequence>

<!-- Note slight naming variation in X3D Specification: the name for this abstract node interface does not end with 'Node'. -->
</xs:complexType>
