complexType X3DNetworkSensorNode

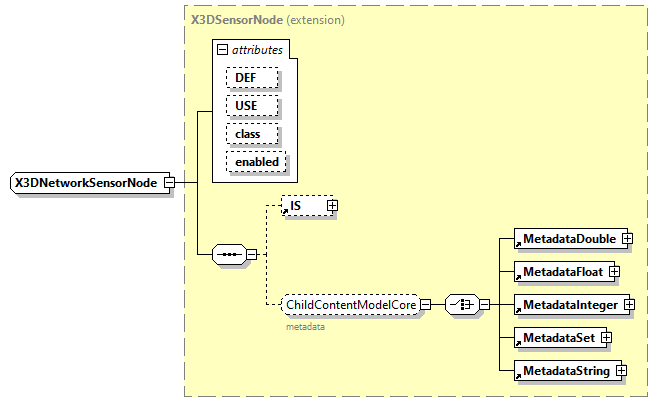

diagram x3d-3.0_diagrams/x3d-3.0_p201.png
type extension of X3DSensorNode
properties
base X3DSensorNode
abstract true
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
elements LoadSensor ReceiverPdu SignalPdu TransmitterPdu
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
enabled  SFBool    true
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
Base typefor all sensors that generate events based on network activity.
source <xs:complexType name="X3DNetworkSensorNode" abstract="true">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
Base typefor all sensors that generate events based on network activity.
</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/networking.html#X3DNetworkSensorNode"/>

</xs:annotation>

<xs:complexContent>

<xs:extension base="X3DSensorNode"/>

</xs:complexContent>
</xs:complexType>
