complexType X3DDragSensorNode

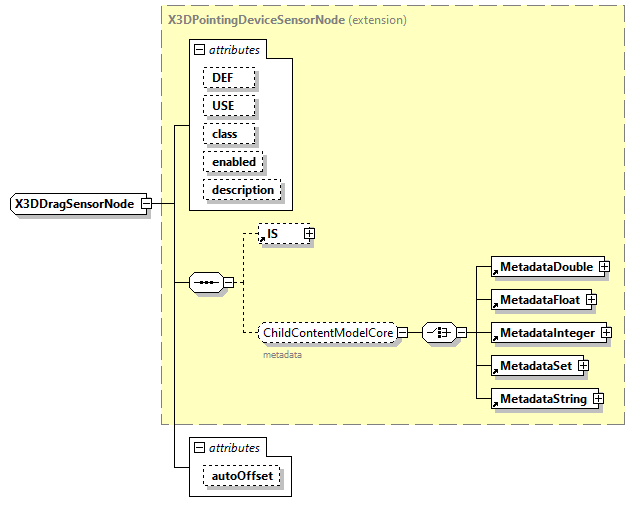

diagram x3d-3.0_diagrams/x3d-3.0_p188.png
type extension of X3DPointingDeviceSensorNode
properties
base X3DPointingDeviceSensorNode
abstract true
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
elements CylinderSensor PlaneSensor SphereSensor
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
enabled  SFBool    true
description  SFString
autoOffset  SFBool    true
annotation
appinfo
<xs:attribute name="trackPoint_changed" type="SFVec3f" fixed="outputOnlyField"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="PointingDeviceSensor"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
Base type for all drag-style pointing device  sensors.
source <xs:complexType name="X3DDragSensorNode" abstract="true">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="trackPoint_changed" type="SFVec3f" fixed="outputOnlyField"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="PointingDeviceSensor"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
Base type for all drag-style pointing device  sensors.
</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/pointingsensor.html#X3DDragSensorNode"/>

</xs:annotation>

<xs:complexContent>

<xs:extension base="X3DPointingDeviceSensorNode">

<xs:attribute name="autoOffset" type="SFBool" default="true"/>

</xs:extension>

</xs:complexContent>
</xs:complexType>

attribute X3DDragSensorNode/@autoOffset
type SFBool
properties
default true
source <xs:attribute name="autoOffset" type="SFBool" default="true"/>
