element TextureTransform

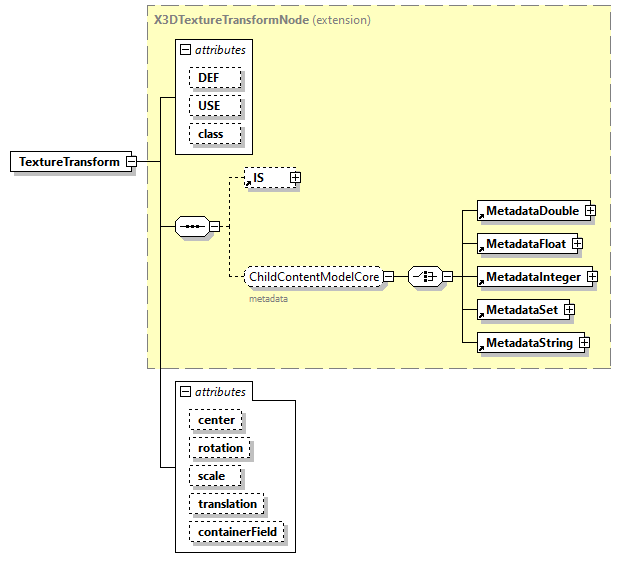

diagram x3d-3.0_p131.png
type extension of X3DTextureTransformNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
element MultiTextureTransform
group AppearanceChildContentModelNoProtoInstance
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referencable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by XML stylesheets.
center  SFVec2f    0 0
rotation  SFFloat    0
scale  SFVec2f    1 1
translation  SFVec2f    0 0
containerField  xs:NMTOKEN    textureTransform
annotation
appinfo
<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="Texturing"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="TextureTransform">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="Texturing"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="http://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/texturing.html#TextureTransform"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DTextureTransformNode">

<xs:attribute name="center" type="SFVec2f" default="0 0"/>

<xs:attribute name="rotation" type="SFFloat" default="0"/>

<xs:attribute name="scale" type="SFVec2f" default="1 1"/>

<xs:attribute name="translation" type="SFVec2f" default="0 0"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="textureTransform"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute TextureTransform/@center
type SFVec2f
properties
default 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern ((\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)? (\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)?)?
source <xs:attribute name="center" type="SFVec2f" default="0 0"/>

attribute TextureTransform/@rotation
type SFFloat
properties
default 0
source <xs:attribute name="rotation" type="SFFloat" default="0"/>

attribute TextureTransform/@scale
type SFVec2f
properties
default 1 1
facets
Kind Value Annotation
whiteSpace collapse
pattern ((\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)? (\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)?)?
source <xs:attribute name="scale" type="SFVec2f" default="1 1"/>

attribute TextureTransform/@translation
type SFVec2f
properties
default 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern ((\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)? (\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)?)?
source <xs:attribute name="translation" type="SFVec2f" default="0 0"/>

attribute TextureTransform/@containerField
type xs:NMTOKEN
properties
default textureTransform
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="textureTransform"/>
