group TextureBackgroundChildContentModel

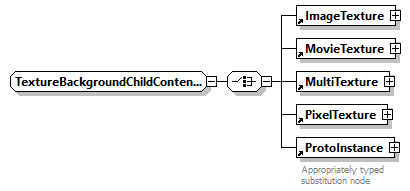

diagram x3d-3.0_diagrams/x3d-3.0_p177.png
children ImageTexture MovieTexture MultiTexture PixelTexture ProtoInstance
used by
element TextureBackground
annotation
appinfo
TextureBackgroundChildContentModel is the child-node content model utilized by TextureBackground.  TextureBackgroundChildContentModel can contain up to six Texture nodes (ImageTexture, MovieTexture, MultiTexture or PixelTexture).  Each child texture shall have a different containerField for topTexture, bottomTexture, leftTexture, rightTexture, frontTexture and backTexture.
source <xs:group name="TextureBackgroundChildContentModel">

<xs:annotation>

<xs:appinfo>TextureBackgroundChildContentModel is the child-node content model utilized by TextureBackground.  TextureBackgroundChildContentModel can contain up to six Texture nodes (ImageTexture, MovieTexture, MultiTexture or PixelTexture).  Each child texture shall have a different containerField for topTexture, bottomTexture, leftTexture, rightTexture, frontTexture and backTexture.</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/enveffects.html#TextureBackground"/>

</xs:annotation>

<xs:choice>

<xs:element ref="ImageTexture"/>

<xs:element ref="MovieTexture"/>

<xs:element ref="MultiTexture"/>

<xs:element ref="PixelTexture"/>

<xs:element ref="ProtoInstance">

<xs:annotation>

<xs:documentation>Appropriately typed substitution node</xs:documentation>

</xs:annotation>

</xs:element>

</xs:choice>

<!--Controversial construct, throws errors if includes minOccurs="0" maxOccurs="6".  Deterministic content model.
Moved constraint to parent referring xs:group OK.  Still need to test if more than 6 children will be invalidated.--
>
</xs:group>
