element PlaneSensor

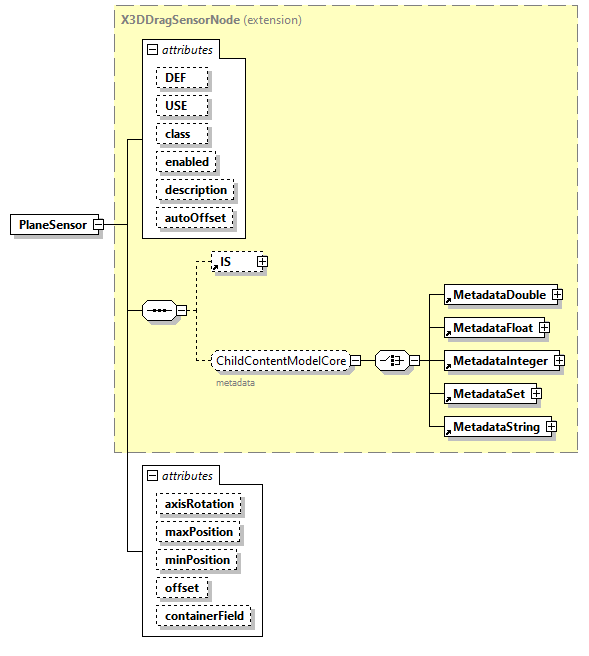

diagram x3d-3.0_p100.png
type extension of X3DDragSensorNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
group ChildContentModelInteractive
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referencable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by XML stylesheets.
enabled  SFBool    true
description  SFString
autoOffset  SFBool    true
axisRotation  SFRotation    0 1 0 0
maxPosition  SFVec2f    -1 -1
minPosition  SFVec2f    0 0
offset  SFVec3f    0 0 0
containerField  xs:NMTOKEN    children
annotation
appinfo
<xs:attribute name="translation_changed" type="SFVec3f" fixed="outputOnlyField"/>
<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="PointingDeviceSensor"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="PlaneSensor">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="translation_changed" type="SFVec3f" fixed="outputOnlyField"/>

<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="PointingDeviceSensor"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="http://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/pointingsensor.html#PlaneSensor"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DDragSensorNode">

<xs:attribute name="axisRotation" type="SFRotation" default="0 1 0 0"/>

<xs:attribute name="maxPosition" type="SFVec2f" default="-1 -1"/>

<xs:attribute name="minPosition" type="SFVec2f" default="0 0"/>

<xs:attribute name="offset" type="SFVec3f" default="0 0 0"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute PlaneSensor/@axisRotation
type SFRotation
properties
default 0 1 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern ((\+|\-)?(((\.[0-9]+|0(\.[0-9]*)?)((E|e)(\+|\-)?[0-9]+)?)|(1(\.[0]*)?((E|e)\-[0-9]+)?)|([1-9](\.[0-9]*)((E|e)\-[0-9]+))) (\+|\-)?(((\.[0-9]+|0(\.[0-9]*)?)((E|e)(\+|\-)?[0-9]+)?)|(1(\.[0]*)?((E|e)\-[0-9]+)?)|([1-9](\.[0-9]*)((E|e)\-[0-9]+))) (\+|\-)?(((\.[0-9]+|0(\.[0-9]*)?)((E|e)(\+|\-)?[0-9]+)?)|(1(\.[0]*)?((E|e)\-[0-9]+)?)|([1-9](\.[0-9]*)((E|e)\-[0-9]+))) (\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)?)?
source <xs:attribute name="axisRotation" type="SFRotation" default="0 1 0 0"/>

attribute PlaneSensor/@maxPosition
type SFVec2f
properties
default -1 -1
facets
Kind Value Annotation
whiteSpace collapse
pattern ((\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)? (\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)?)?
source <xs:attribute name="maxPosition" type="SFVec2f" default="-1 -1"/>

attribute PlaneSensor/@minPosition
type SFVec2f
properties
default 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern ((\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)? (\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)?)?
source <xs:attribute name="minPosition" type="SFVec2f" default="0 0"/>

attribute PlaneSensor/@offset
type SFVec3f
properties
default 0 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern ((\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)? (\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)? (\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)?)?
source <xs:attribute name="offset" type="SFVec3f" default="0 0 0"/>

attribute PlaneSensor/@containerField
type xs:NMTOKEN
properties
default children
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
