element NormalInterpolator

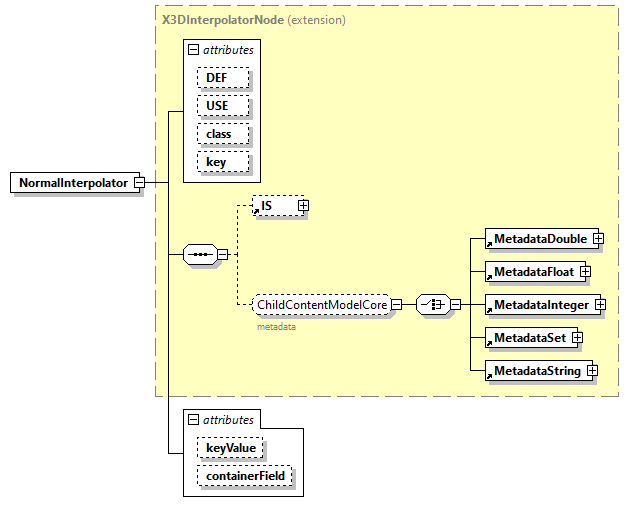

diagram x3d-3.0_p86.png
type extension of X3DInterpolatorNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
group ChildContentModelInterchange
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referencable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by XML stylesheets.
key  MFFloat
keyValue  MFVec3f
containerField  xs:NMTOKEN    children
annotation
appinfo
<xs:attribute name="value_changed" type="MFVec3f" fixed="outputOnlyField"/>
<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="Interpolation"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source <xs:element name="NormalInterpolator">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="value_changed" type="MFVec3f" fixed="outputOnlyField"/>

<xs:attribute name="componentName" type="xs:NMTOKEN" fixed="Interpolation"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

<xs:documentation source="http://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/interp.html#NormalInterpolator"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DInterpolatorNode">

<xs:attribute name="keyValue" type="MFVec3f"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute NormalInterpolator/@keyValue
type MFVec3f
facets
Kind Value Annotation
whiteSpace collapse
pattern ((\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)? (\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)? (\+|\-)?(0|[1-9][0-9]*)?(\.[0-9]*)?((E|e)(\+|\-)?[0-9]+)?( )?(,)?( )?)*
source <xs:attribute name="keyValue" type="MFVec3f"/>

attribute NormalInterpolator/@containerField
type xs:NMTOKEN
properties
default children
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
