element Extrusion

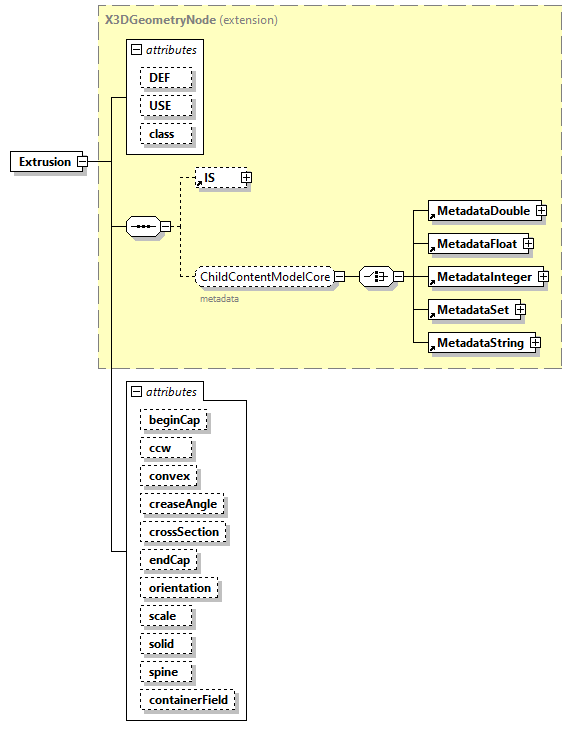

diagram x3d-3.0_diagrams/x3d-3.0_p35.png
type extension of X3DGeometryNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
group GeometryContentModelImmersive
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
beginCap  SFBool    true
ccw  SFBool    true
convex  SFBool    true
creaseAngle  derived by: SFFloat    0
crossSection  MFVec2f    1 1 1 -1 -1 -1 -1 1 1 1
endCap  SFBool    true
orientation  MFRotation    0 0 1 0
scale  MFVec2f    1 1
solid  SFBool    true
spine  MFVec3f    0 0 0 0 1 0
containerField  xs:NMTOKEN    geometry
annotation
appinfo
<xs:attribute name="beginCap" type="SFBool" default="true" fixed="inputOnlyField"/>
<xs:attribute name="ccw" type="SFBool" default="true" fixed="inputOnlyField"/>
<xs:attribute name="convex" type="SFBool" default="true" fixed="inputOnlyField"/>
<xs:attribute name="creaseAngle" type="SFBool" default="0" fixed="inputOnlyField"/>
<xs:attribute name="crossSection" type="MFVec2f" default="1 1 1 -1 -1 -1 -1 1 1 1" fixed="inputOnlyField"/>
<xs:attribute name="endCap" type="SFBool" default="true" fixed="inputOnlyField"/>
<xs:attribute name="orientation" type="MFRotation" default="0 0 1 0" fixed="inputOnlyField"/>
<xs:attribute name="scale" type="MFVec2f" default="1 1" fixed="inputOnlyField"/>
<xs:attribute name="solid" type="SFBool" default="true" fixed="initializeOnlyField"/>
<xs:attribute name="spine" type="MFVec3f" default="0 0 0 0 1 0" fixed="inputOnlyField"/>
<xs:attribute name="set_crossSection" type="MFVec2f" fixed="inputOnlyField"/>
<xs:attribute name="set_orientation" type="MFRotation" fixed="inputOnlyField"/>
<xs:attribute name="set_scale" type="MFVec2f" fixed="inputOnlyField"/>
<xs:attribute name="set_spine" type="MFVec3f" fixed="inputOnlyField"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Geometry3D"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
source <xs:element name="Extrusion">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="beginCap" type="SFBool" default="true" fixed="inputOnlyField"/>

<xs:attribute name="ccw" type="SFBool" default="true" fixed="inputOnlyField"/>

<xs:attribute name="convex" type="SFBool" default="true" fixed="inputOnlyField"/>

<xs:attribute name="creaseAngle" type="SFBool" default="0" fixed="inputOnlyField"/>

<xs:attribute name="crossSection" type="MFVec2f" default="1 1 1 -1 -1 -1 -1 1 1 1" fixed="inputOnlyField"/>

<xs:attribute name="endCap" type="SFBool" default="true" fixed="inputOnlyField"/>

<xs:attribute name="orientation" type="MFRotation" default="0 0 1 0" fixed="inputOnlyField"/>

<xs:attribute name="scale" type="MFVec2f" default="1 1" fixed="inputOnlyField"/>

<xs:attribute name="solid" type="SFBool" default="true" fixed="initializeOnlyField"/>

<xs:attribute name="spine" type="MFVec3f" default="0 0 0 0 1 0" fixed="inputOnlyField"/>

<xs:attribute name="set_crossSection" type="MFVec2f" fixed="inputOnlyField"/>

<xs:attribute name="set_orientation" type="MFRotation" fixed="inputOnlyField"/>

<xs:attribute name="set_scale" type="MFVec2f" fixed="inputOnlyField"/>

<xs:attribute name="set_spine" type="MFVec3f" fixed="inputOnlyField"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Geometry3D"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/geometry3D.html#Extrusion"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DGeometryNode">

<xs:attribute name="beginCap" type="SFBool" default="true"/>

<xs:attribute name="ccw" type="SFBool" default="true"/>

<xs:attribute name="convex" type="SFBool" default="true"/>

<xs:attribute name="creaseAngle" default="0">

<!-- type="SFFloatNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="crossSection" type="MFVec2f" default="1 1 1 -1 -1 -1 -1 1 1 1"/>

<xs:attribute name="endCap" type="SFBool" default="true"/>

<xs:attribute name="orientation" type="MFRotation" default="0 0 1 0"/>

<xs:attribute name="scale" type="MFVec2f" default="1 1"/>

<xs:attribute name="solid" type="SFBool" default="true"/>

<xs:attribute name="spine" type="MFVec3f" default="0 0 0 0 1 0"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute Extrusion/@beginCap
type SFBool
properties
default true
source <xs:attribute name="beginCap" type="SFBool" default="true"/>

attribute Extrusion/@ccw
type SFBool
properties
default true
source <xs:attribute name="ccw" type="SFBool" default="true"/>

attribute Extrusion/@convex
type SFBool
properties
default true
source <xs:attribute name="convex" type="SFBool" default="true"/>

attribute Extrusion/@creaseAngle
type restriction of SFFloat
properties
default 0
facets
Kind Value Annotation
minInclusive 0
source <xs:attribute name="creaseAngle" default="0">

<!-- type="SFFloatNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute Extrusion/@crossSection
type MFVec2f
properties
default 1 1 1 -1 -1 -1 -1 1 1 1
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*((([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){1}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source <xs:attribute name="crossSection" type="MFVec2f" default="1 1 1 -1 -1 -1 -1 1 1 1"/>

attribute Extrusion/@endCap
type SFBool
properties
default true
source <xs:attribute name="endCap" type="SFBool" default="true"/>

attribute Extrusion/@orientation
type MFRotation
properties
default 0 0 1 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*((([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){3}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source <xs:attribute name="orientation" type="MFRotation" default="0 0 1 0"/>

attribute Extrusion/@scale
type MFVec2f
properties
default 1 1
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*((([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){1}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source <xs:attribute name="scale" type="MFVec2f" default="1 1"/>

attribute Extrusion/@solid
type SFBool
properties
default true
source <xs:attribute name="solid" type="SFBool" default="true"/>

attribute Extrusion/@spine
type MFVec3f
properties
default 0 0 0 0 1 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*((([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source <xs:attribute name="spine" type="MFVec3f" default="0 0 0 0 1 0"/>

attribute Extrusion/@containerField
type xs:NMTOKEN
properties
default geometry
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>
