element Appearance

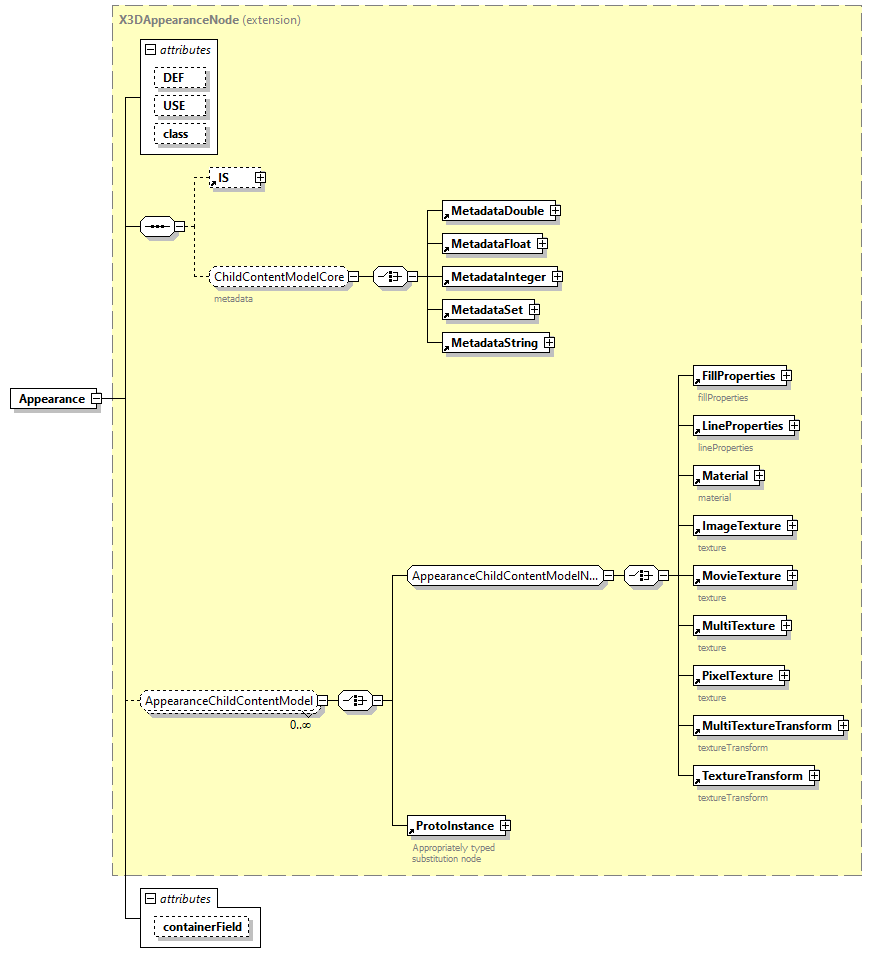

diagram x3d-3.0_diagrams/x3d-3.0_p2.png
type extension of X3DAppearanceNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString FillProperties LineProperties Material ImageTexture MovieTexture MultiTexture PixelTexture MultiTextureTransform TextureTransform ProtoInstance
used by
groups SceneGraphFragmentContentModel ShapeChildContentModel
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
containerField  xs:NMTOKEN    appearance
annotation
appinfo
<xs:element name="fillProperties" type="SFNode" fixed="inputOutputField" default="FillProperties">
<xs:annotation>
<xs:appinfo>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>
</xs:appinfo>
</xs:annotation>
</xs:element>
<xs:element name="lineProperties" type="SFNode" fixed="inputOutputField" default="LineProperties">
<xs:annotation>
<xs:appinfo>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
</xs:appinfo>
</xs:annotation>
</xs:element>
<!-- pointProperties added in X3D version 4.0 -->
<xs:element name="material" type="SFNode" fixed="inputOutputField" default="X3DMaterialNode"/>
<!-- Shaders component added in X3D version 3.1 -->
<xs:element name="texture" type="SFNode" fixed="inputOutputField" default="X3DTextureNode"/>
<xs:element name="textureTransform" type="SFNode" fixed="inputOutputField" default="X3DTextureTransformNode">
<xs:annotation>
<xs:appinfo>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
</xs:appinfo>
</xs:annotation>
</xs:element>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="Appearance">

<xs:annotation>

<xs:appinfo>

<xs:element name="fillProperties" type="SFNode" fixed="inputOutputField" default="FillProperties">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>

</xs:appinfo>

</xs:annotation>

</xs:element>

<xs:element name="lineProperties" type="SFNode" fixed="inputOutputField" default="LineProperties">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>

</xs:element>

<!-- pointProperties added in X3D version 4.0 -->

<xs:element name="material" type="SFNode" fixed="inputOutputField" default="X3DMaterialNode"/>

<!-- Shaders component added in X3D version 3.1 -->

<xs:element name="texture" type="SFNode" fixed="inputOutputField" default="X3DTextureNode"/>

<xs:element name="textureTransform" type="SFNode" fixed="inputOutputField" default="X3DTextureTransformNode">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>

</xs:element>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/shape.html#Appearance"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DAppearanceNode">

<xs:attribute name="containerField" type="xs:NMTOKEN" default="appearance"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute Appearance/@containerField
type xs:NMTOKEN
properties
default appearance
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="appearance"/>
