Schema definition StringSensor

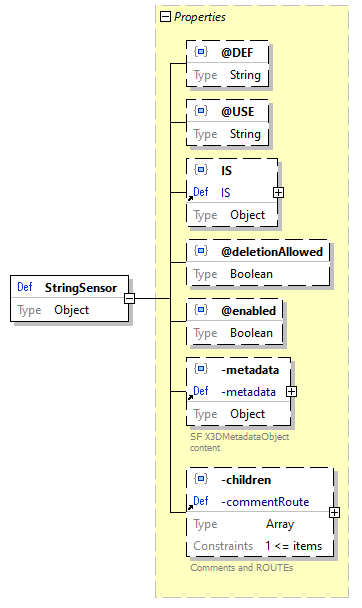

diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p3011.png
location E:\x3d-code\www.web3d.org\specifications\x3d-3.3-JSONSchema.json
type Object
properties
Name   Occurrence
@DEF   Optional
@USE   Optional
IS   Optional
@deletionAllowed   Optional
@enabled   Optional
-metadata   Optional
-children   Optional
used by Scene / -children > array items [0]+ / Schema / StringSensor
-allNodes > array items [0]+ / Schema / StringSensor
-child / StringSensor
-children > array items [0]+ / Schema / StringSensor
source code "StringSensor": {
    "type": "object",
    "properties": {
        "@DEF": {
            "type": "string"
        },
        "@USE": {
            "type": "string"
        },
        "IS": {
            "$ref": "#/definitions/IS"
        },
        "@deletionAllowed": {
            "type": "boolean",
            "default": true
        },
        "@enabled": {
            "type": "boolean",
            "default": true
        },
        "-metadata": {
            "$ref": "#/definitions/-metadata"
        },
        "-children": {
            "$ref": "#/definitions/-commentRoute"
        }
    },
    "additionalProperties": false
}

Property StringSensor / @DEF
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p3012.png
property details
Occurrence  Optional
type String
source code "@DEF": {
    "type": "string"
}

Property StringSensor / @USE
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p3013.png
property details
Occurrence  Optional
type String
source code "@USE": {
    "type": "string"
}

Property StringSensor / IS
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p3014.png
property details
Occurrence  Optional
reference IS
source code "IS": {
    "$ref": "#/definitions/IS"
}

Property StringSensor / @deletionAllowed
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p3015.png
property details
Occurrence  Optional
schema details
Default  true
type Boolean
source code "@deletionAllowed": {
    "type": "boolean",
    "default": true
}

Property StringSensor / @enabled
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p3016.png
property details
Occurrence  Optional
schema details
Default  true
type Boolean
source code "@enabled": {
    "type": "boolean",
    "default": true
}

Property StringSensor / -metadata
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p3017.png
property details
Occurrence  Optional
reference -metadata
source code "-metadata": {
    "$ref": "#/definitions/-metadata"
}

Property StringSensor / -children
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p3018.png
property details
Occurrence  Optional
reference -commentRoute
source code "-children": {
    "$ref": "#/definitions/-commentRoute"
}


JSON Schema documentation generated by XMLSpy JSON Schema Editor http://www.altova.com/xmlspy/json-schema-editor.html
