Schema definition ReceiverPdu
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2429.png
location E:\x3d-code\www.web3d.org\specifications\x3d-3.3-JSONSchema.json
type Object
properties
Name   Occurrence
@DEF   Optional
@USE   Optional
IS   Optional
@address   Optional
@applicationID   Optional
@bboxCenter   Optional
@bboxSize   Optional
@enabled   Optional
@entityID   Optional
@geoCoords   Optional
@geoSystem   Optional
@multicastRelayHost   Optional
@multicastRelayPort   Optional
@networkMode   Optional
@port   Optional
@radioID   Optional
@readInterval   Optional
@receivedPower   Optional
@receiverState   Optional
@rtpHeaderExpected   Optional
@siteID   Optional
@transmitterApplicationID   Optional
@transmitterEntityID   Optional
@transmitterSiteID   Optional
@whichGeometry   Optional
@writeInterval   Optional
-metadata   Optional
-children   Optional
used by Scene / -children > array items [0]+ / Schema / ReceiverPdu
-allNodes > array items [0]+ / Schema / ReceiverPdu
-child / ReceiverPdu
-children > array items [0]+ / Schema / ReceiverPdu
source code "ReceiverPdu": {
    "type": "object",
    "properties": {
        "@DEF": {
            "type": "string"
        },
        "@USE": {
            "type": "string"
        },
        "IS": {
            "$ref": "#/definitions/IS"
        },
        "@address": {
            "type": "string",
            "default": "localhost"
        },
        "@applicationID": {
            "type": "integer",
            "minimum": 0,
            "maximum": 65535,
            "default": 0
        },
        "@bboxCenter": {
            "type": "array",
            "minItems": 3,
            "maxItems": 3,
            "items": {
                "type": "number",
                "default": 0
            }
        },
        "@bboxSize": {
            "$ref": "#/definitions/@bboxSize"
        },
        "@enabled": {
            "type": "boolean",
            "default": true
        },
        "@entityID": {
            "type": "integer",
            "minimum": 0,
            "maximum": 65535,
            "default": 0
        },
        "@geoCoords": {
            "type": "array",
            "minItems": 3,
            "maxItems": 3,
            "items": {
                "type": "number",
                "default": 0
            }
        },
        "@geoSystem": {
            "$ref": "#/definitions/@geoSystem"
        },
        "@multicastRelayHost": {
            "type": "string"
        },
        "@multicastRelayPort": {
            "type": "integer",
            "minimum": 0,
            "maximum": 65535,
            "default": 0
        },
        "@networkMode": {
            "type": "string",
            "enum": [
                "standAlone",
                "networkReader",
                "networkWriter"
            ],
            "default": "standAlone"
        },
        "@port": {
            "type": "integer",
            "minimum": 0,
            "maximum": 65535,
            "default": 0
        },
        "@radioID": {
            "type": "integer",
            "minimum": 0,
            "maximum": 65535,
            "default": 0
        },
        "@readInterval": {
            "type": "number",
            "minimum": 0,
            "default": 0.1
        },
        "@receivedPower": {
            "type": "number",
            "minimum": 0,
            "default": 0
        },
        "@receiverState": {
            "type": "integer",
            "minimum": 0,
            "maximum": 65535,
            "default": 0
        },
        "@rtpHeaderExpected": {
            "type": "boolean",
            "default": false
        },
        "@siteID": {
            "type": "integer",
            "minimum": 0,
            "maximum": 65535,
            "default": 0
        },
        "@transmitterApplicationID": {
            "type": "integer",
            "minimum": 0,
            "maximum": 65535,
            "default": 0
        },
        "@transmitterEntityID": {
            "type": "integer",
            "minimum": 0,
            "maximum": 65535,
            "default": 0
        },
        "@transmitterSiteID": {
            "type": "integer",
            "minimum": 0,
            "maximum": 65535,
            "default": 0
        },
        "@whichGeometry": {
            "type": "integer",
            "minimum": -1,
            "default": 1
        },
        "@writeInterval": {
            "type": "number",
            "minimum": 0,
            "default": 1
        },
        "-metadata": {
            "$ref": "#/definitions/-metadata"
        },
        "-children": {
            "$ref": "#/definitions/-commentRoute"
        }
    },
    "additionalProperties": false
}

Property ReceiverPdu / @DEF
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2430.png
property details
Occurrence  Optional
type String
source code "@DEF": {
    "type": "string"
}

Property ReceiverPdu / @USE
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2431.png
property details
Occurrence  Optional
type String
source code "@USE": {
    "type": "string"
}

Property ReceiverPdu / IS
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2432.png
property details
Occurrence  Optional
reference IS
source code "IS": {
    "$ref": "#/definitions/IS"
}

Property ReceiverPdu / @address
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2433.png
property details
Occurrence  Optional
schema details
Default  "localhost"
type String
source code "@address": {
    "type": "string",
    "default": "localhost"
}

Property ReceiverPdu / @applicationID
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2434.png
property details
Occurrence  Optional
schema details
Default  0
type Numeric
numeric constraints
Mode  Integer
Minimum  0
Maximum  65535
source code "@applicationID": {
    "type": "integer",
    "minimum": 0,
    "maximum": 65535,
    "default": 0
}

Property ReceiverPdu / @bboxCenter
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2435.png
property details
Occurrence  Optional
type Array
array constraints
Min Items  3
Max Items  3
array items
[0 - 2]  Schema
source code "@bboxCenter": {
    "type": "array",
    "minItems": 3,
    "maxItems": 3,
    "items": {
        "type": "number",
        "default": 0
    }
}

Array item wildcard ReceiverPdu / @bboxCenter > array items [0]+ / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2436.png
schema details
Default  0
type Numeric
source code {
    "type": "number",
    "default": 0
}

Property ReceiverPdu / @bboxSize
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2437.png
property details
Occurrence  Optional
reference @bboxSize
source code "@bboxSize": {
    "$ref": "#/definitions/@bboxSize"
}

Property ReceiverPdu / @enabled
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2438.png
property details
Occurrence  Optional
schema details
Default  true
type Boolean
source code "@enabled": {
    "type": "boolean",
    "default": true
}

Property ReceiverPdu / @entityID
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2439.png
property details
Occurrence  Optional
schema details
Default  0
type Numeric
numeric constraints
Mode  Integer
Minimum  0
Maximum  65535
source code "@entityID": {
    "type": "integer",
    "minimum": 0,
    "maximum": 65535,
    "default": 0
}

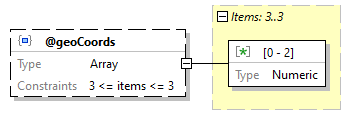

Property ReceiverPdu / @geoCoords
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2440.png
property details
Occurrence  Optional
type Array
array constraints
Min Items  3
Max Items  3
array items
[0 - 2]  Schema
source code "@geoCoords": {
    "type": "array",
    "minItems": 3,
    "maxItems": 3,
    "items": {
        "type": "number",
        "default": 0
    }
}

Array item wildcard ReceiverPdu / @geoCoords > array items [0]+ / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2441.png
schema details
Default  0
type Numeric
source code {
    "type": "number",
    "default": 0
}

Property ReceiverPdu / @geoSystem
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2442.png
property details
Occurrence  Optional
reference @geoSystem
source code "@geoSystem": {
    "$ref": "#/definitions/@geoSystem"
}

Property ReceiverPdu / @multicastRelayHost
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2443.png
property details
Occurrence  Optional
type String
source code "@multicastRelayHost": {
    "type": "string"
}

Property ReceiverPdu / @multicastRelayPort
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2444.png
property details
Occurrence  Optional
schema details
Default  0
type Numeric
numeric constraints
Mode  Integer
Minimum  0
Maximum  65535
source code "@multicastRelayPort": {
    "type": "integer",
    "minimum": 0,
    "maximum": 65535,
    "default": 0
}

Property ReceiverPdu / @networkMode
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2445.png
property details
Occurrence  Optional
schema details
Default  "standAlone"
type String
enumerations
Type   Value
string   standAlone
string   networkReader
string   networkWriter
source code "@networkMode": {
    "type": "string",
    "enum": [
        "standAlone",
        "networkReader",
        "networkWriter"
    ],
    "default": "standAlone"
}

Property ReceiverPdu / @port
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2446.png
property details
Occurrence  Optional
schema details
Default  0
type Numeric
numeric constraints
Mode  Integer
Minimum  0
Maximum  65535
source code "@port": {
    "type": "integer",
    "minimum": 0,
    "maximum": 65535,
    "default": 0
}

Property ReceiverPdu / @radioID
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2447.png
property details
Occurrence  Optional
schema details
Default  0
type Numeric
numeric constraints
Mode  Integer
Minimum  0
Maximum  65535
source code "@radioID": {
    "type": "integer",
    "minimum": 0,
    "maximum": 65535,
    "default": 0
}

Property ReceiverPdu / @readInterval
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2448.png
property details
Occurrence  Optional
schema details
Default  0.1
type Numeric
numeric constraints
Minimum  0
source code "@readInterval": {
    "type": "number",
    "minimum": 0,
    "default": 0.1
}

Property ReceiverPdu / @receivedPower
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2449.png
property details
Occurrence  Optional
schema details
Default  0
type Numeric
numeric constraints
Minimum  0
source code "@receivedPower": {
    "type": "number",
    "minimum": 0,
    "default": 0
}

Property ReceiverPdu / @receiverState
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2450.png
property details
Occurrence  Optional
schema details
Default  0
type Numeric
numeric constraints
Mode  Integer
Minimum  0
Maximum  65535
source code "@receiverState": {
    "type": "integer",
    "minimum": 0,
    "maximum": 65535,
    "default": 0
}

Property ReceiverPdu / @rtpHeaderExpected
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2451.png
property details
Occurrence  Optional
schema details
Default  false
type Boolean
source code "@rtpHeaderExpected": {
    "type": "boolean",
    "default": false
}

Property ReceiverPdu / @siteID
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2452.png
property details
Occurrence  Optional
schema details
Default  0
type Numeric
numeric constraints
Mode  Integer
Minimum  0
Maximum  65535
source code "@siteID": {
    "type": "integer",
    "minimum": 0,
    "maximum": 65535,
    "default": 0
}

Property ReceiverPdu / @transmitterApplicationID
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2453.png
property details
Occurrence  Optional
schema details
Default  0
type Numeric
numeric constraints
Mode  Integer
Minimum  0
Maximum  65535
source code "@transmitterApplicationID": {
    "type": "integer",
    "minimum": 0,
    "maximum": 65535,
    "default": 0
}

Property ReceiverPdu / @transmitterEntityID
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2454.png
property details
Occurrence  Optional
schema details
Default  0
type Numeric
numeric constraints
Mode  Integer
Minimum  0
Maximum  65535
source code "@transmitterEntityID": {
    "type": "integer",
    "minimum": 0,
    "maximum": 65535,
    "default": 0
}

Property ReceiverPdu / @transmitterSiteID
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2455.png
property details
Occurrence  Optional
schema details
Default  0
type Numeric
numeric constraints
Mode  Integer
Minimum  0
Maximum  65535
source code "@transmitterSiteID": {
    "type": "integer",
    "minimum": 0,
    "maximum": 65535,
    "default": 0
}

Property ReceiverPdu / @whichGeometry
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2456.png
property details
Occurrence  Optional
schema details
Default  1
type Numeric
numeric constraints
Mode  Integer
Minimum  -1
source code "@whichGeometry": {
    "type": "integer",
    "minimum": -1,
    "default": 1
}

Property ReceiverPdu / @writeInterval
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2457.png
property details
Occurrence  Optional
schema details
Default  1
type Numeric
numeric constraints
Minimum  0
source code "@writeInterval": {
    "type": "number",
    "minimum": 0,
    "default": 1
}

Property ReceiverPdu / -metadata
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2458.png
property details
Occurrence  Optional
reference -metadata
source code "-metadata": {
    "$ref": "#/definitions/-metadata"
}

Property ReceiverPdu / -children
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2459.png
property details
Occurrence  Optional
reference -commentRoute
source code "-children": {
    "$ref": "#/definitions/-commentRoute"
}


JSON Schema documentation generated by XMLSpy JSON Schema Editor http://www.altova.com/xmlspy/json-schema-editor.html
