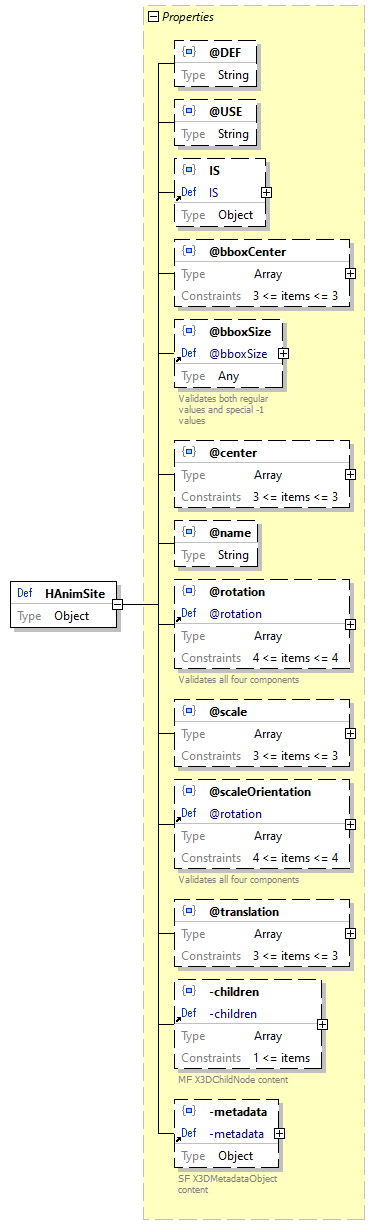

Schema definition HAnimSite
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p1262.png
location C:\x3d-code\www.web3d.org\specifications\x3d-3.3-JSONSchema.json
type Object
properties
Name   Occurrence
@DEF   Optional
@USE   Optional
IS   Optional
@bboxCenter   Optional
@bboxSize   Optional
@center   Optional
@name   Optional
@rotation   Optional
@scale   Optional
@scaleOrientation   Optional
@translation   Optional
-children   Optional
-metadata   Optional
used by Scene / -children > array items [0]+ / Schema / HAnimSite
TransformSensor / -targetObject > array items [0]+ / Schema / HAnimSite
-allNodes > array items [0]+ / Schema / HAnimSite
-child / HAnimSite
-children > array items [0]+ / Schema / HAnimSite
-grouping > array items [0]+ / Schema / HAnimSite
-pickTarget > array items [0]+ / Schema / HAnimSite
-sites > array items [0]+ / Schema / HAnimSite
-skeleton > array items [0]+ / Schema / HAnimSite
source code "HAnimSite": {
    "type": "object",
    "properties": {
        "@DEF": {
            "type": "string"
        },
        "@USE": {
            "type": "string"
        },
        "IS": {
            "$ref": "#/definitions/IS"
        },
        "@bboxCenter": {
            "type": "array",
            "minItems": 3,
            "maxItems": 3,
            "items": {
                "type": "number",
                "default": 0
            }
        },
        "@bboxSize": {
            "$ref": "#/definitions/@bboxSize"
        },
        "@center": {
            "type": "array",
            "minItems": 3,
            "maxItems": 3,
            "items": {
                "type": "number",
                "default": 0
            }
        },
        "@name": {
            "type": "string"
        },
        "@rotation": {
            "$ref": "#/definitions/@rotation"
        },
        "@scale": {
            "type": "array",
            "minItems": 3,
            "maxItems": 3,
            "items": {
                "type": "number",
                "minimum": 0,
                "exclusiveMinimum": true,
                "default": 1
            }
        },
        "@scaleOrientation": {
            "$ref": "#/definitions/@rotation"
        },
        "@translation": {
            "type": "array",
            "minItems": 3,
            "maxItems": 3,
            "items": {
                "type": "number",
                "default": 0
            }
        },
        "-children": {
            "$ref": "#/definitions/-children"
        },
        "-metadata": {
            "$ref": "#/definitions/-metadata"
        }
    },
    "additionalProperties": false
}

Property HAnimSite / @DEF
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p1263.png
property details
Occurrence  Optional
type String
source code "@DEF": {
    "type": "string"
}

Property HAnimSite / @USE
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p1264.png
property details
Occurrence  Optional
type String
source code "@USE": {
    "type": "string"
}

Property HAnimSite / IS
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p1265.png
property details
Occurrence  Optional
reference IS
source code "IS": {
    "$ref": "#/definitions/IS"
}

Property HAnimSite / @bboxCenter
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p1266.png
property details
Occurrence  Optional
type Array
array constraints
Min Items  3
Max Items  3
array items
[0 - 2]  Schema
source code "@bboxCenter": {
    "type": "array",
    "minItems": 3,
    "maxItems": 3,
    "items": {
        "type": "number",
        "default": 0
    }
}

Array item wildcard HAnimSite / @bboxCenter > array items [0]+ / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p1267.png
schema details
Default  0
type Numeric
source code {
    "type": "number",
    "default": 0
}

Property HAnimSite / @bboxSize
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p1268.png
property details
Occurrence  Optional
reference @bboxSize
source code "@bboxSize": {
    "$ref": "#/definitions/@bboxSize"
}

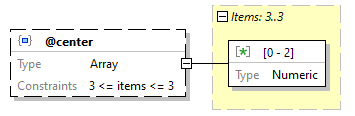

Property HAnimSite / @center
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p1269.png
property details
Occurrence  Optional
type Array
array constraints
Min Items  3
Max Items  3
array items
[0 - 2]  Schema
source code "@center": {
    "type": "array",
    "minItems": 3,
    "maxItems": 3,
    "items": {
        "type": "number",
        "default": 0
    }
}

Array item wildcard HAnimSite / @center > array items [0]+ / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p1270.png
schema details
Default  0
type Numeric
source code {
    "type": "number",
    "default": 0
}

Property HAnimSite / @name
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p1271.png
property details
Occurrence  Optional
type String
source code "@name": {
    "type": "string"
}

Property HAnimSite / @rotation
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p1272.png
property details
Occurrence  Optional
reference @rotation
source code "@rotation": {
    "$ref": "#/definitions/@rotation"
}

Property HAnimSite / @scale
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p1273.png
property details
Occurrence  Optional
type Array
array constraints
Min Items  3
Max Items  3
array items
[0 - 2]  Schema
source code "@scale": {
    "type": "array",
    "minItems": 3,
    "maxItems": 3,
    "items": {
        "type": "number",
        "minimum": 0,
        "exclusiveMinimum": true,
        "default": 1
    }
}

Array item wildcard HAnimSite / @scale > array items [0]+ / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p1274.png
schema details
Default  1
type Numeric
numeric constraints
Minimum  0
Excl. Min  true
source code {
    "type": "number",
    "minimum": 0,
    "exclusiveMinimum": true,
    "default": 1
}

Property HAnimSite / @scaleOrientation
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p1275.png
property details
Occurrence  Optional
reference @rotation
source code "@scaleOrientation": {
    "$ref": "#/definitions/@rotation"
}

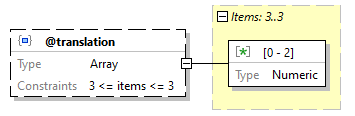

Property HAnimSite / @translation
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p1276.png
property details
Occurrence  Optional
type Array
array constraints
Min Items  3
Max Items  3
array items
[0 - 2]  Schema
source code "@translation": {
    "type": "array",
    "minItems": 3,
    "maxItems": 3,
    "items": {
        "type": "number",
        "default": 0
    }
}

Array item wildcard HAnimSite / @translation > array items [0]+ / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p1277.png
schema details
Default  0
type Numeric
source code {
    "type": "number",
    "default": 0
}

Property HAnimSite / -children
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p1278.png
property details
Occurrence  Optional
reference -children
source code "-children": {
    "$ref": "#/definitions/-children"
}

Property HAnimSite / -metadata
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p1279.png
property details
Occurrence  Optional
reference -metadata
source code "-metadata": {
    "$ref": "#/definitions/-metadata"
}
