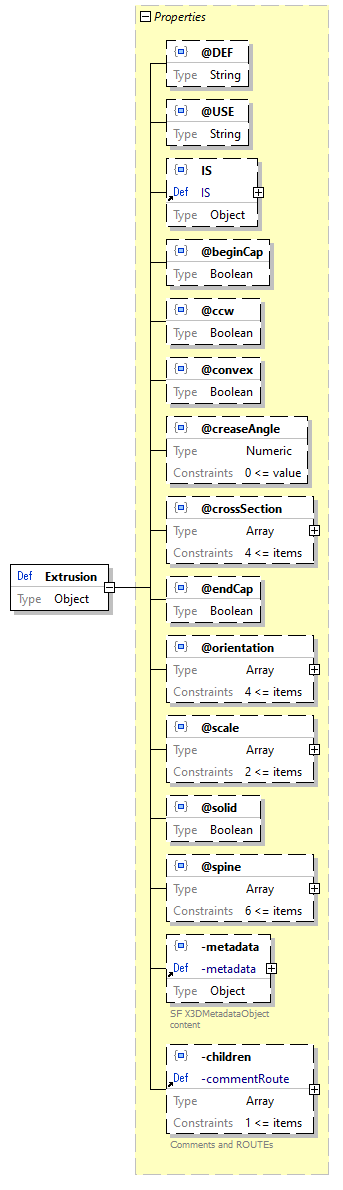

Schema definition Extrusion
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p868.png
location E:\x3d-code\www.web3d.org\specifications\x3d-3.3-JSONSchema.json
type Object
properties
Name   Occurrence
@DEF   Optional
@USE   Optional
IS   Optional
@beginCap   Optional
@ccw   Optional
@convex   Optional
@creaseAngle   Optional
@crossSection   Optional
@endCap   Optional
@orientation   Optional
@scale   Optional
@solid   Optional
@spine   Optional
-metadata   Optional
-children   Optional
used by -allNodes > array items [0]+ / Schema / Extrusion
-geometry / Extrusion
source code "Extrusion": {
    "type": "object",
    "properties": {
        "@DEF": {
            "type": "string"
        },
        "@USE": {
            "type": "string"
        },
        "IS": {
            "$ref": "#/definitions/IS"
        },
        "@beginCap": {
            "type": "boolean",
            "default": true
        },
        "@ccw": {
            "type": "boolean",
            "default": true
        },
        "@convex": {
            "type": "boolean",
            "default": true
        },
        "@creaseAngle": {
            "type": "number",
            "minimum": 0,
            "default": 0
        },
        "@crossSection": {
            "type": "array",
            "minItems": 4,
            "items": [
                {
                    "type": "number",
                    "default": 1
                },
                {
                    "type": "number",
                    "default": 1
                },
                {
                    "type": "number",
                    "default": 1
                },
                {
                    "type": "number",
                    "default": -1
                },
                {
                    "type": "number",
                    "default": -1
                },
                {
                    "type": "number",
                    "default": -1
                },
                {
                    "type": "number",
                    "default": -1
                },
                {
                    "type": "number",
                    "default": 1
                },
                {
                    "type": "number",
                    "default": 1
                },
                {
                    "type": "number",
                    "default": 1
                }
            ],
            "additionalItems": {
                "type": "number"
            }
        },
        "@endCap": {
            "type": "boolean",
            "default": true
        },
        "@orientation": {
            "type": "array",
            "minItems": 4,
            "items": [
                {
                    "type": "number",
                    "default": 0
                },
                {
                    "type": "number",
                    "default": 0
                },
                {
                    "type": "number",
                    "default": 1
                }
            ],
            "additionalItems": {
                "type": "number",
                "default": 0
            }
        },
        "@scale": {
            "type": "array",
            "minItems": 2,
            "items": {
                "type": "number",
                "default": 1
            }
        },
        "@solid": {
            "type": "boolean",
            "default": true
        },
        "@spine": {
            "type": "array",
            "minItems": 6,
            "items": [
                {
                    "type": "number",
                    "default": 0
                },
                {
                    "type": "number",
                    "default": 0
                },
                {
                    "type": "number",
                    "default": 0
                },
                {
                    "type": "number",
                    "default": 0
                },
                {
                    "type": "number",
                    "default": 1
                },
                {
                    "type": "number",
                    "default": 0
                }
            ],
            "additionalItems": {
                "type": "number"
            }
        },
        "-metadata": {
            "$ref": "#/definitions/-metadata"
        },
        "-children": {
            "$ref": "#/definitions/-commentRoute"
        }
    },
    "additionalProperties": false
}

Property Extrusion / @DEF
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p869.png
property details
Occurrence  Optional
type String
source code "@DEF": {
    "type": "string"
}

Property Extrusion / @USE
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p870.png
property details
Occurrence  Optional
type String
source code "@USE": {
    "type": "string"
}

Property Extrusion / IS
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p871.png
property details
Occurrence  Optional
reference IS
source code "IS": {
    "$ref": "#/definitions/IS"
}

Property Extrusion / @beginCap
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p872.png
property details
Occurrence  Optional
schema details
Default  true
type Boolean
source code "@beginCap": {
    "type": "boolean",
    "default": true
}

Property Extrusion / @ccw
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p873.png
property details
Occurrence  Optional
schema details
Default  true
type Boolean
source code "@ccw": {
    "type": "boolean",
    "default": true
}

Property Extrusion / @convex
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p874.png
property details
Occurrence  Optional
schema details
Default  true
type Boolean
source code "@convex": {
    "type": "boolean",
    "default": true
}

Property Extrusion / @creaseAngle
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p875.png
property details
Occurrence  Optional
schema details
Default  0
type Numeric
numeric constraints
Minimum  0
source code "@creaseAngle": {
    "type": "number",
    "minimum": 0,
    "default": 0
}

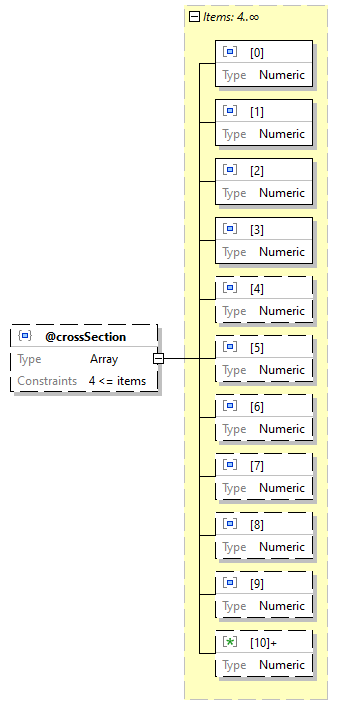

Property Extrusion / @crossSection
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p876.png
property details
Occurrence  Optional
type Array
array constraints
Min Items  4
array items
[0]  Schema
[1]  Schema
[2]  Schema
[3]  Schema
[4]  Schema
[5]  Schema
[6]  Schema
[7]  Schema
[8]  Schema
[9]  Schema
[10]+  Schema
source code "@crossSection": {
    "type": "array",
    "minItems": 4,
    "items": [
        {
            "type": "number",
            "default": 1
        },
        {
            "type": "number",
            "default": 1
        },
        {
            "type": "number",
            "default": 1
        },
        {
            "type": "number",
            "default": -1
        },
        {
            "type": "number",
            "default": -1
        },
        {
            "type": "number",
            "default": -1
        },
        {
            "type": "number",
            "default": -1
        },
        {
            "type": "number",
            "default": 1
        },
        {
            "type": "number",
            "default": 1
        },
        {
            "type": "number",
            "default": 1
        }
    ],
    "additionalItems": {
        "type": "number"
    }
}

Array item Extrusion / @crossSection > array items [0] / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p877.png
schema details
Default  1
type Numeric
source code {
    "type": "number",
    "default": 1
}

Array item Extrusion / @crossSection > array items [1] / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p878.png
schema details
Default  1
type Numeric
source code {
    "type": "number",
    "default": 1
}

Array item Extrusion / @crossSection > array items [2] / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p879.png
schema details
Default  1
type Numeric
source code {
    "type": "number",
    "default": 1
}

Array item Extrusion / @crossSection > array items [3] / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p880.png
schema details
Default  -1
type Numeric
source code {
    "type": "number",
    "default": -1
}

Array item Extrusion / @crossSection > array items [4] / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p881.png
schema details
Default  -1
type Numeric
source code {
    "type": "number",
    "default": -1
}

Array item Extrusion / @crossSection > array items [5] / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p882.png
schema details
Default  -1
type Numeric
source code {
    "type": "number",
    "default": -1
}

Array item Extrusion / @crossSection > array items [6] / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p883.png
schema details
Default  -1
type Numeric
source code {
    "type": "number",
    "default": -1
}

Array item Extrusion / @crossSection > array items [7] / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p884.png
schema details
Default  1
type Numeric
source code {
    "type": "number",
    "default": 1
}

Array item Extrusion / @crossSection > array items [8] / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p885.png
schema details
Default  1
type Numeric
source code {
    "type": "number",
    "default": 1
}

Array item Extrusion / @crossSection > array items [9] / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p886.png
schema details
Default  1
type Numeric
source code {
    "type": "number",
    "default": 1
}

Array item wildcard Extrusion / @crossSection > array items [10]+ / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p887.png
type Numeric
source code {
    "type": "number"
}

Property Extrusion / @endCap
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p888.png
property details
Occurrence  Optional
schema details
Default  true
type Boolean
source code "@endCap": {
    "type": "boolean",
    "default": true
}

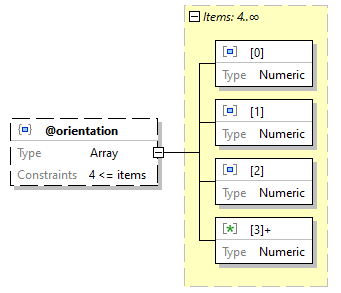

Property Extrusion / @orientation
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p889.png
property details
Occurrence  Optional
type Array
array constraints
Min Items  4
array items
[0]  Schema
[1]  Schema
[2]  Schema
[3]+  Schema
source code "@orientation": {
    "type": "array",
    "minItems": 4,
    "items": [
        {
            "type": "number",
            "default": 0
        },
        {
            "type": "number",
            "default": 0
        },
        {
            "type": "number",
            "default": 1
        }
    ],
    "additionalItems": {
        "type": "number",
        "default": 0
    }
}

Array item Extrusion / @orientation > array items [0] / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p890.png
schema details
Default  0
type Numeric
source code {
    "type": "number",
    "default": 0
}

Array item Extrusion / @orientation > array items [1] / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p891.png
schema details
Default  0
type Numeric
source code {
    "type": "number",
    "default": 0
}

Array item Extrusion / @orientation > array items [2] / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p892.png
schema details
Default  1
type Numeric
source code {
    "type": "number",
    "default": 1
}

Array item wildcard Extrusion / @orientation > array items [3]+ / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p893.png
schema details
Default  0
type Numeric
source code {
    "type": "number",
    "default": 0
}

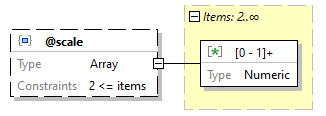

Property Extrusion / @scale
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p894.png
property details
Occurrence  Optional
type Array
array constraints
Min Items  2
array items
[0 - 1]+  Schema
source code "@scale": {
    "type": "array",
    "minItems": 2,
    "items": {
        "type": "number",
        "default": 1
    }
}

Array item wildcard Extrusion / @scale > array items [0]+ / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p895.png
schema details
Default  1
type Numeric
source code {
    "type": "number",
    "default": 1
}

Property Extrusion / @solid
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p896.png
property details
Occurrence  Optional
schema details
Default  true
type Boolean
source code "@solid": {
    "type": "boolean",
    "default": true
}

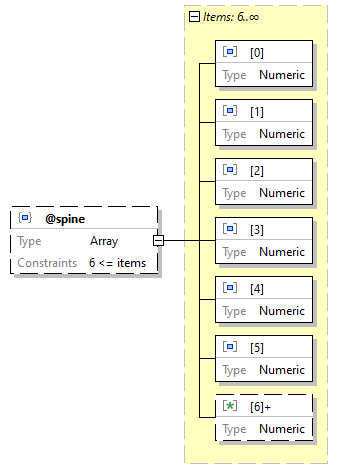

Property Extrusion / @spine
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p897.png
property details
Occurrence  Optional
type Array
array constraints
Min Items  6
array items
[0]  Schema
[1]  Schema
[2]  Schema
[3]  Schema
[4]  Schema
[5]  Schema
[6]+  Schema
source code "@spine": {
    "type": "array",
    "minItems": 6,
    "items": [
        {
            "type": "number",
            "default": 0
        },
        {
            "type": "number",
            "default": 0
        },
        {
            "type": "number",
            "default": 0
        },
        {
            "type": "number",
            "default": 0
        },
        {
            "type": "number",
            "default": 1
        },
        {
            "type": "number",
            "default": 0
        }
    ],
    "additionalItems": {
        "type": "number"
    }
}

Array item Extrusion / @spine > array items [0] / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p898.png
schema details
Default  0
type Numeric
source code {
    "type": "number",
    "default": 0
}

Array item Extrusion / @spine > array items [1] / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p899.png
schema details
Default  0
type Numeric
source code {
    "type": "number",
    "default": 0
}

Array item Extrusion / @spine > array items [2] / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p900.png
schema details
Default  0
type Numeric
source code {
    "type": "number",
    "default": 0
}

Array item Extrusion / @spine > array items [3] / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p901.png
schema details
Default  0
type Numeric
source code {
    "type": "number",
    "default": 0
}

Array item Extrusion / @spine > array items [4] / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p902.png
schema details
Default  1
type Numeric
source code {
    "type": "number",
    "default": 1
}

Array item Extrusion / @spine > array items [5] / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p903.png
schema details
Default  0
type Numeric
source code {
    "type": "number",
    "default": 0
}

Array item wildcard Extrusion / @spine > array items [6]+ / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p904.png
type Numeric
source code {
    "type": "number"
}

Property Extrusion / -metadata
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p905.png
property details
Occurrence  Optional
reference -metadata
source code "-metadata": {
    "$ref": "#/definitions/-metadata"
}

Property Extrusion / -children
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p906.png
property details
Occurrence  Optional
reference -commentRoute
source code "-children": {
    "$ref": "#/definitions/-commentRoute"
}


JSON Schema documentation generated by XMLSpy JSON Schema Editor http://www.altova.com/xmlspy/json-schema-editor.html
