Schema definition Contour2D

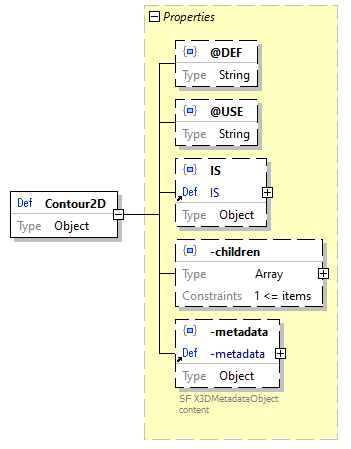

diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p517.png
location E:\x3d-code\www.web3d.org\specifications\x3d-3.3-JSONSchema.json
type Object
properties
Name   Occurrence
@DEF   Optional
@USE   Optional
IS   Optional
-children   Optional
-metadata   Optional
used by -allNodes > array items [0]+ / Schema / Contour2D
-trimmingContour > array items [0]+ / Schema / Contour2D
source code "Contour2D": {
    "type": "object",
    "properties": {
        "@DEF": {
            "type": "string"
        },
        "@USE": {
            "type": "string"
        },
        "IS": {
            "$ref": "#/definitions/IS"
        },
        "-children": {
            "type": "array",
            "minItems": 1,
            "items": {
                "type": "object",
                "properties": {
                    "ContourPolyline2D": {
                        "$ref": "#/definitions/ContourPolyline2D"
                    },
                    "NurbsCurve2D": {
                        "$ref": "#/definitions/NurbsCurve2D"
                    },
                    "ProtoInstance": {
                        "$ref": "#/definitions/ProtoInstance"
                    },
                    "#comment": {
                        "type": "string"
                    },
                    "ROUTE": {
                        "$ref": "#/definitions/ROUTE"
                    }
                },
                "additionalProperties": false
            }
        },
        "-metadata": {
            "$ref": "#/definitions/-metadata"
        }
    },
    "additionalProperties": false
}

Property Contour2D / @DEF
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p518.png
property details
Occurrence  Optional
type String
source code "@DEF": {
    "type": "string"
}

Property Contour2D / @USE
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p519.png
property details
Occurrence  Optional
type String
source code "@USE": {
    "type": "string"
}

Property Contour2D / IS
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p520.png
property details
Occurrence  Optional
reference IS
source code "IS": {
    "$ref": "#/definitions/IS"
}

Property Contour2D / -children
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p521.png
property details
Occurrence  Optional
type Array
array constraints
Min Items  1
array items
[0]+  Schema
source code "-children": {
    "type": "array",
    "minItems": 1,
    "items": {
        "type": "object",
        "properties": {
            "ContourPolyline2D": {
                "$ref": "#/definitions/ContourPolyline2D"
            },
            "NurbsCurve2D": {
                "$ref": "#/definitions/NurbsCurve2D"
            },
            "ProtoInstance": {
                "$ref": "#/definitions/ProtoInstance"
            },
            "#comment": {
                "type": "string"
            },
            "ROUTE": {
                "$ref": "#/definitions/ROUTE"
            }
        },
        "additionalProperties": false
    }
}

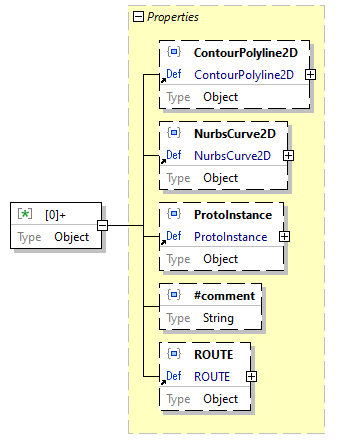

Array item wildcard Contour2D / -children > array items [0]+ / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p522.png
type Object
properties
Name   Occurrence
ContourPolyline2D   Optional
NurbsCurve2D   Optional
ProtoInstance   Optional
#comment   Optional
ROUTE   Optional
source code {
    "type": "object",
    "properties": {
        "ContourPolyline2D": {
            "$ref": "#/definitions/ContourPolyline2D"
        },
        "NurbsCurve2D": {
            "$ref": "#/definitions/NurbsCurve2D"
        },
        "ProtoInstance": {
            "$ref": "#/definitions/ProtoInstance"
        },
        "#comment": {
            "type": "string"
        },
        "ROUTE": {
            "$ref": "#/definitions/ROUTE"
        }
    },
    "additionalProperties": false
}

Property Contour2D / -children > array items [0]+ / Schema / ContourPolyline2D
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p523.png
property details
Occurrence  Optional
reference ContourPolyline2D
source code "ContourPolyline2D": {
    "$ref": "#/definitions/ContourPolyline2D"
}

Property Contour2D / -children > array items [0]+ / Schema / NurbsCurve2D
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p524.png
property details
Occurrence  Optional
reference NurbsCurve2D
source code "NurbsCurve2D": {
    "$ref": "#/definitions/NurbsCurve2D"
}

Property Contour2D / -children > array items [0]+ / Schema / ProtoInstance
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p525.png
property details
Occurrence  Optional
reference ProtoInstance
source code "ProtoInstance": {
    "$ref": "#/definitions/ProtoInstance"
}

Property Contour2D / -children > array items [0]+ / Schema / #comment
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p526.png
property details
Occurrence  Optional
type String
source code "#comment": {
    "type": "string"
}

Property Contour2D / -children > array items [0]+ / Schema / ROUTE
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p527.png
property details
Occurrence  Optional
reference ROUTE
source code "ROUTE": {
    "$ref": "#/definitions/ROUTE"
}

Property Contour2D / -metadata
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p528.png
property details
Occurrence  Optional
reference -metadata
source code "-metadata": {
    "$ref": "#/definitions/-metadata"
}
